element CartesianCS

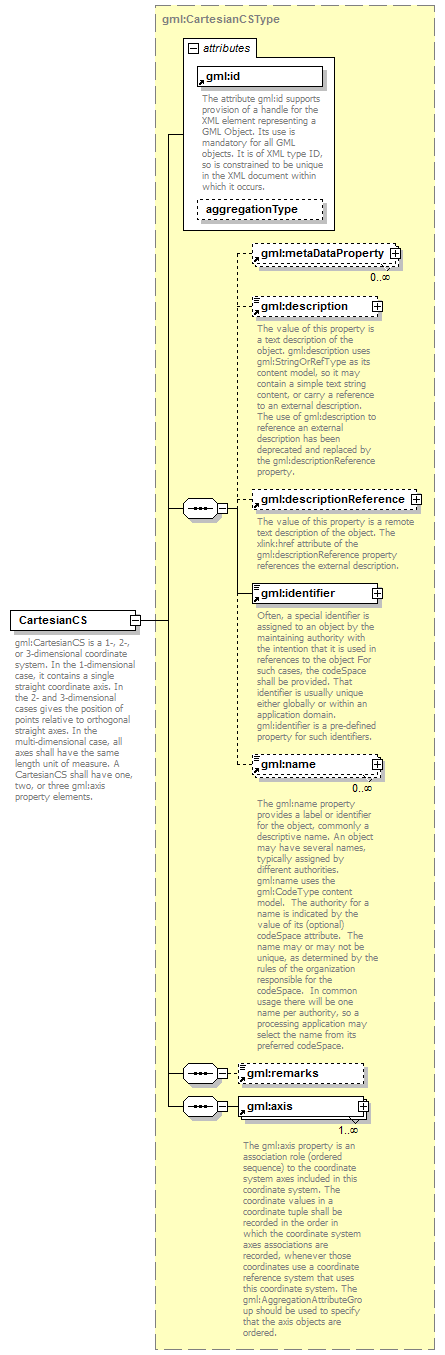

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:CartesianCSType
properties	content  complex substGrp  gml:AbstractCoordinateSystem
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:remarks gml:axis
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. aggregationType gml:AggregationType
annotation	documentation gml:CartesianCS is a 1-, 2-, or 3-dimensional coordinate system. In the 1-dimensional case, it contains a single straight coordinate axis. In the 2- and 3-dimensional cases gives the position of points relative to orthogonal straight axes. In the multi-dimensional case, all axes shall have the same length unit of measure. A CartesianCS shall have one, two, or three gml:axis property elements.
