element CompositeCurve

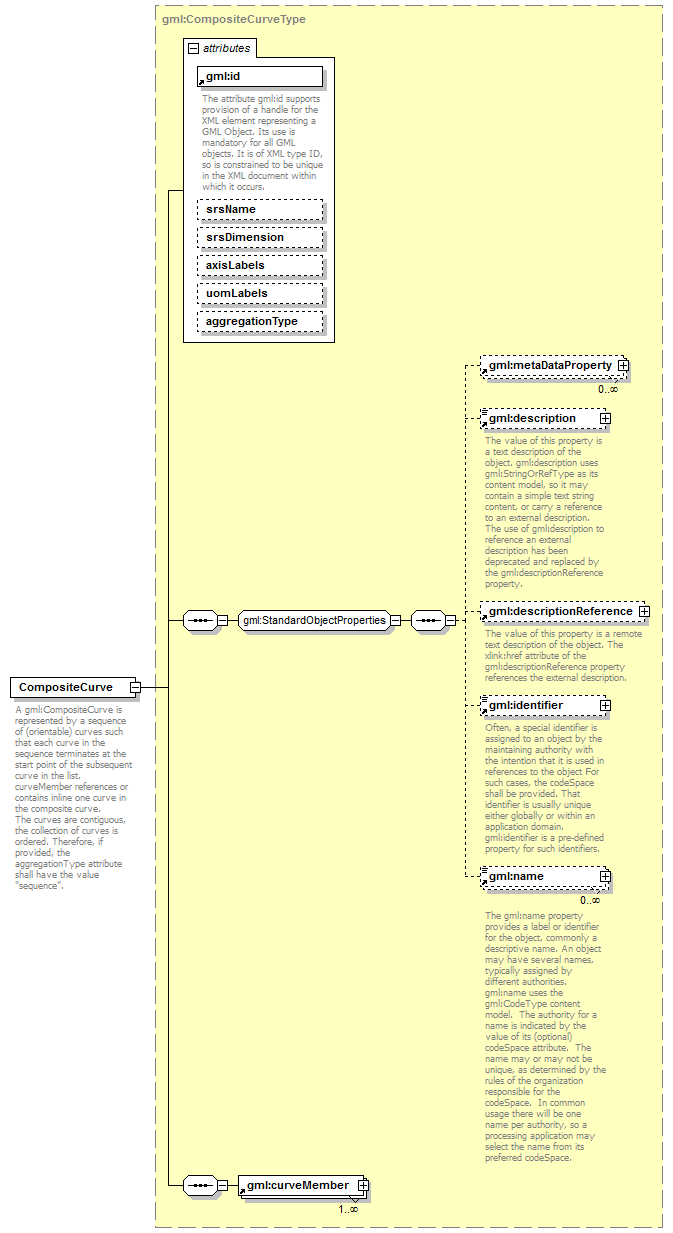

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:CompositeCurveType
properties	content  complex substGrp  gml:AbstractCurve
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:curveMember
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList          aggregationType gml:AggregationType
annotation	documentation A gml:CompositeCurve is represented by a sequence of (orientable) curves such that each curve in the sequence terminates at the start point of the subsequent curve in the list. curveMember references or contains inline one curve in the composite curve. The curves are contiguous, the collection of curves is ordered. Therefore, if provided, the aggregationType attribute shall have the value "sequence".
