element CompositeSolid

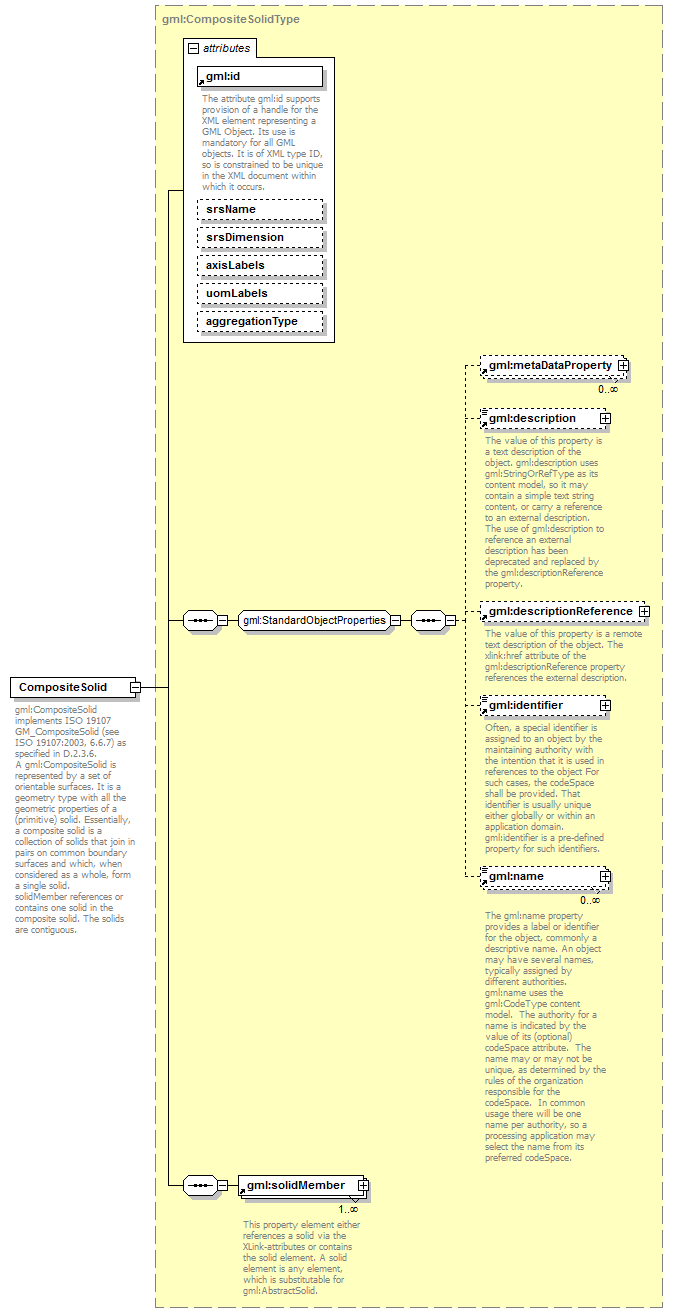

diagram AirQualityReporting_p1461.png
namespace http://www.opengis.net/gml/3.2
type gml:CompositeSolidType
properties
content complex
substGrp gml:AbstractSolid
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:solidMember
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
srsNameanyURI
srsDimensionpositiveInteger
axisLabelsgml:NCNameList
uomLabelsgml:NCNameList
aggregationTypegml:AggregationType
annotation
documentation
gml:CompositeSolid implements ISO 19107 GM_CompositeSolid (see ISO 19107:2003, 6.6.7) as specified in D.2.3.6.
A gml:CompositeSolid is represented by a set of orientable surfaces. It is a geometry type with all the geometric properties of a (primitive) solid. Essentially, a composite solid is a collection of solids that join in pairs on common boundary surfaces and which, when considered as a whole, form a single solid.
solidMember references or contains one solid in the composite solid. The solids are contiguous.
