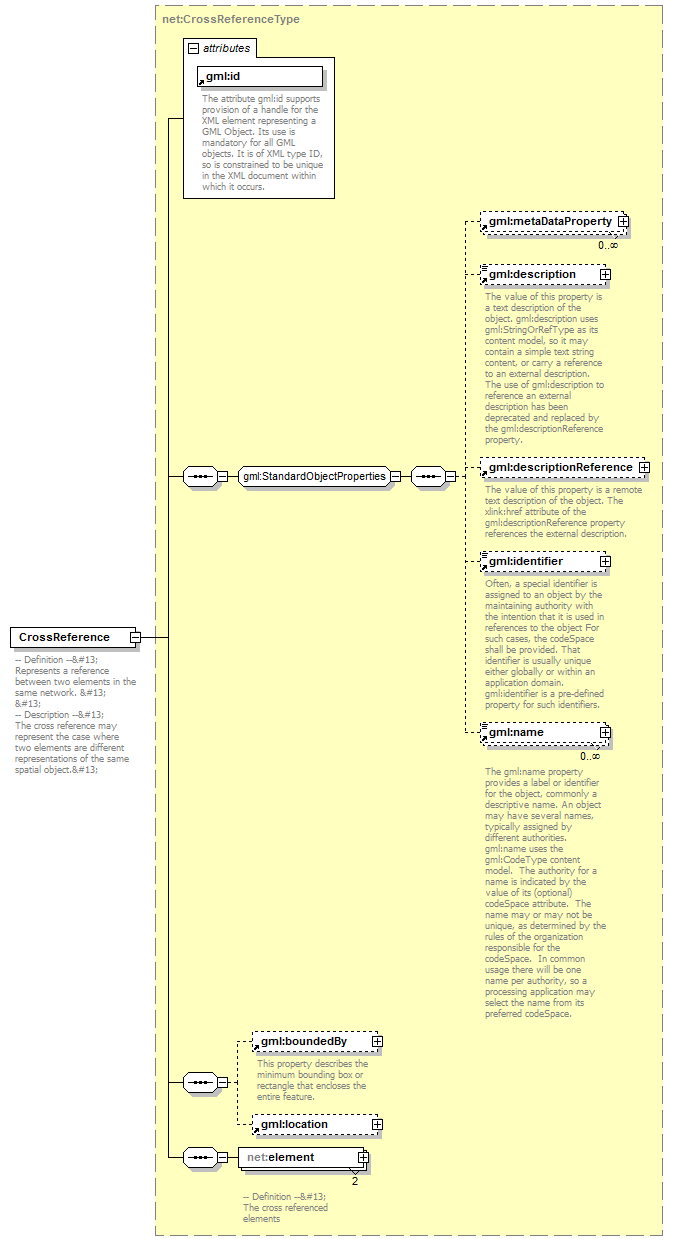

diagram |
|
namespace |
urn:x-inspire:specification:gmlas:Network:3.2 |
type |
net:CrossReferenceType |
properties |
content | complex | substGrp | gml:AbstractFeature |
|
children |
gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:element |
attributes |
Name | Type | Use | Default | Fixed | annotation | id | | required | | | documentation | The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. |
|
|
annotation |
documentation | -- Definition --
Represents a reference between two elements in the same network.
-- Description --
The cross reference may represent the case where two elements are different representations of the same spatial object.
|
|
