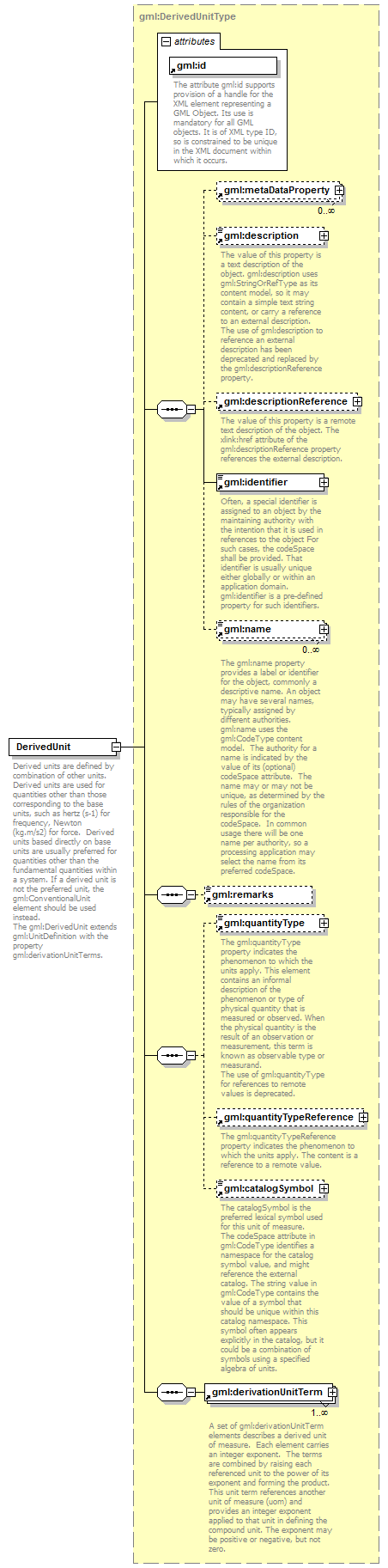

| diagram |
 |
| namespace |
http://www.opengis.net/gml/3.2 |
| type |
gml:DerivedUnitType |
| properties |
| content | complex | | substGrp | gml:UnitDefinition |
|
| children |
gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:remarks gml:quantityType gml:quantityTypeReference gml:catalogSymbol gml:derivationUnitTerm |
| attributes |
| Name | Type | Use | Default | Fixed | annotation | | id | | required | | | | documentation | | The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. |
|
|
| annotation |
| documentation | Derived units are defined by combination of other units. Derived units are used for quantities other than those corresponding to the base units, such as hertz (s-1) for frequency, Newton (kg.m/s2) for force. Derived units based directly on base units are usually preferred for quantities other than the fundamental quantities within a system. If a derived unit is not the preferred unit, the gml:ConventionalUnit element should be used instead.
The gml:DerivedUnit extends gml:UnitDefinition with the property gml:derivationUnitTerms. |
|
