element Envelope

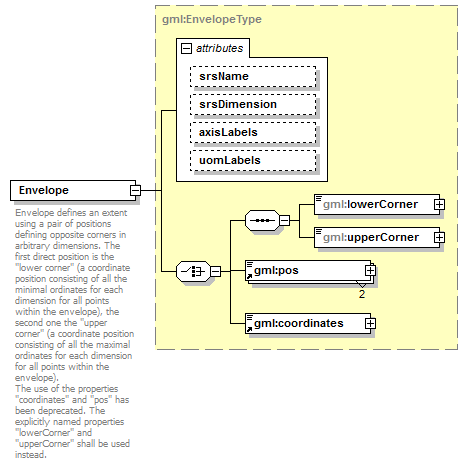

diagram AirQualityReporting_p2075.png
namespace http://www.opengis.net/gml/3.2
type gml:EnvelopeType
properties
content complex
substGrp gml:AbstractObject
children gml:lowerCorner gml:upperCorner gml:pos gml:coordinates
attributes
Name  Type  Use  Default  Fixed  annotation
srsNameanyURI
srsDimensionpositiveInteger
axisLabelsgml:NCNameList
uomLabelsgml:NCNameList
annotation
documentation
Envelope defines an extent using a pair of positions defining opposite corners in arbitrary dimensions. The first direct position is the "lower corner" (a coordinate position consisting of all the minimal ordinates for each dimension for all points within the envelope), the second one the "upper corner" (a coordinate position consisting of all the maximal ordinates for each dimension for all points within the envelope).
The use of the properties "coordinates" and "pos" has been deprecated. The explicitly named properties "lowerCorner" and "upperCorner" shall be used instead.
