element LinearCS

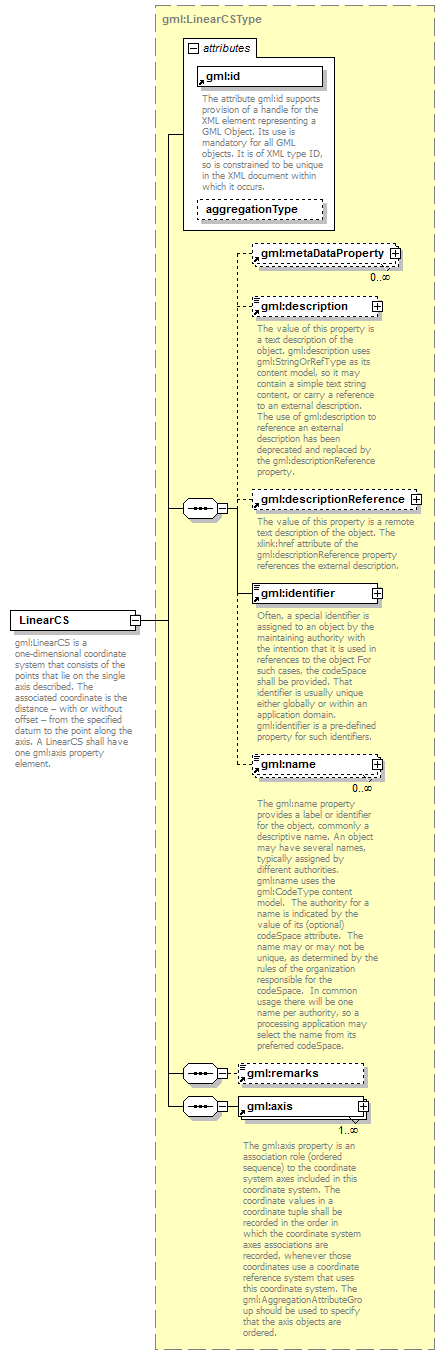

diagram AirQualityReporting_p1548.png
namespace http://www.opengis.net/gml/3.2
type gml:LinearCSType
properties
content complex
substGrp gml:AbstractCoordinateSystem
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:remarks gml:axis
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
aggregationTypegml:AggregationType
annotation
documentation
gml:LinearCS is a one-dimensional coordinate system that consists of the points that lie on the single axis described. The associated coordinate is the distance – with or without offset – from the specified datum to the point along the axis. A LinearCS shall have one gml:axis property element.
