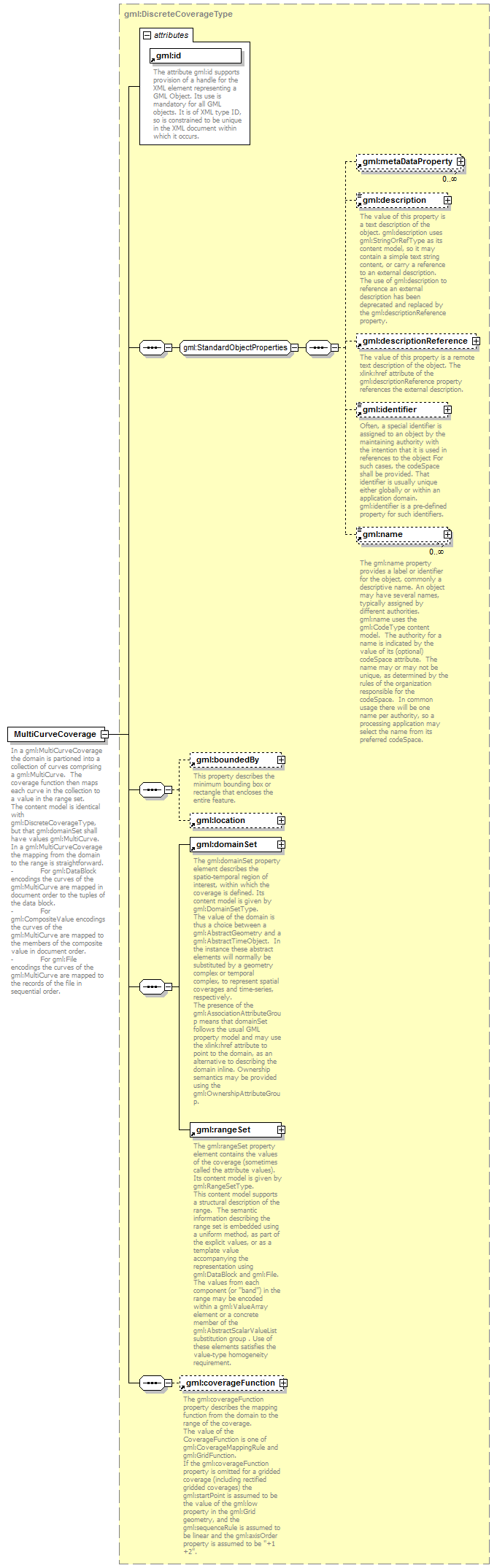

| diagram |
 |
| namespace |
http://www.opengis.net/gml/3.2 |
| type |
gml:DiscreteCoverageType |
| properties |
| content | complex | | substGrp | gml:AbstractDiscreteCoverage |
|
| children |
gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location gml:domainSet gml:rangeSet gml:coverageFunction |
| attributes |
| Name | Type | Use | Default | Fixed | annotation | | id | | required | | | | documentation | | The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. |
|
|
| annotation |
| documentation | In a gml:MultiCurveCoverage the domain is partioned into a collection of curves comprising a gml:MultiCurve. The coverage function then maps each curve in the collection to a value in the range set.
The content model is identical with gml:DiscreteCoverageType, but that gml:domainSet shall have values gml:MultiCurve.
In a gml:MultiCurveCoverage the mapping from the domain to the range is straightforward.
- For gml:DataBlock encodings the curves of the gml:MultiCurve are mapped in document order to the tuples of the data block.
- For gml:CompositeValue encodings the curves of the gml:MultiCurve are mapped to the members of the composite value in document order.
- For gml:File encodings the curves of the gml:MultiCurve are mapped to the records of the file in sequential order.
|
|
