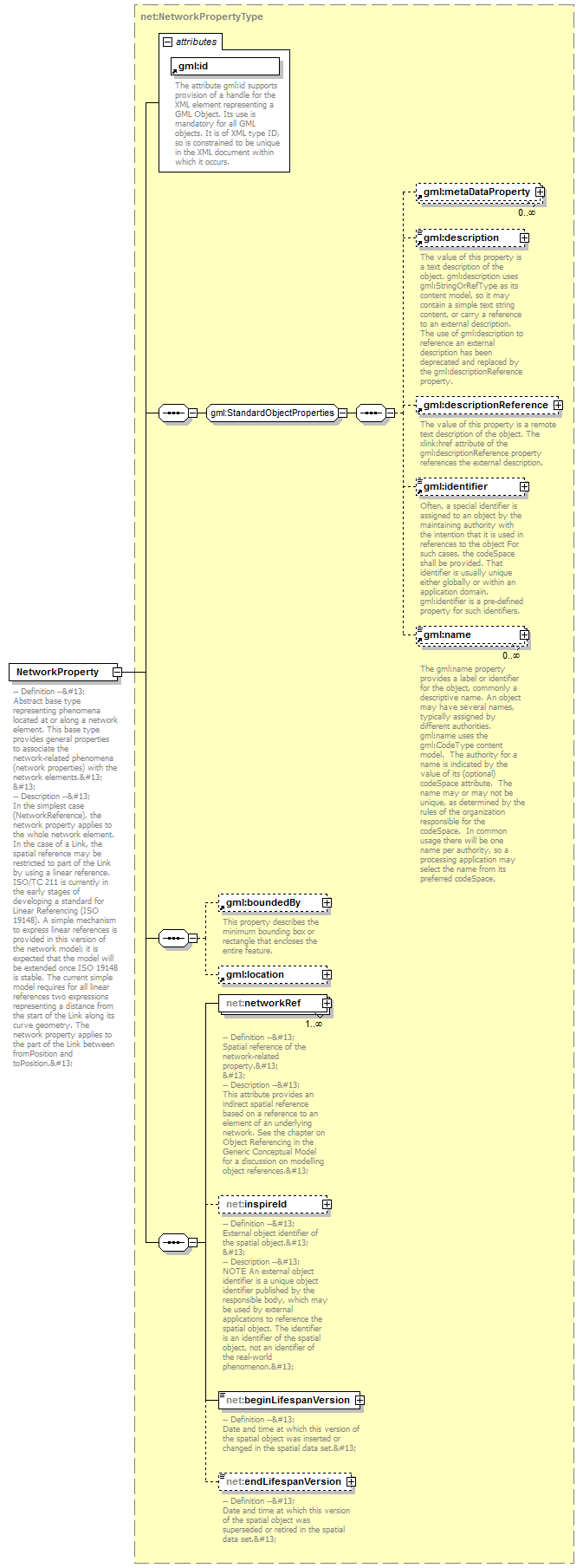

| diagram |
 |
| namespace |
urn:x-inspire:specification:gmlas:Network:3.2 |
| type |
net:NetworkPropertyType |
| properties |
| content | complex | | substGrp | gml:AbstractFeature | | abstract | true |
|
| children |
gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:networkRef net:inspireId net:beginLifespanVersion net:endLifespanVersion |
| attributes |
| Name | Type | Use | Default | Fixed | annotation | | id | | required | | | | documentation | | The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. |
|
|
| annotation |
| documentation | -- Definition --
Abstract base type representing phenomena located at or along a network element. This base type provides general properties to associate the network-related phenomena (network properties) with the network elements.
-- Description --
In the simplest case (NetworkReference), the network property applies to the whole network element. In the case of a Link, the spatial reference may be restricted to part of the Link by using a linear reference. ISO/TC 211 is currently in the early stages of developing a standard for Linear Referencing (ISO 19148). A simple mechanism to express linear references is provided in this version of the network model; it is expected that the model will be extended once ISO 19148 is stable. The current simple model requires for all linear references two expressions representing a distance from the start of the Link along its curve geometry. The network property applies to the part of the Link between fromPosition and toPosition.
|
|
