element OrientableCurve

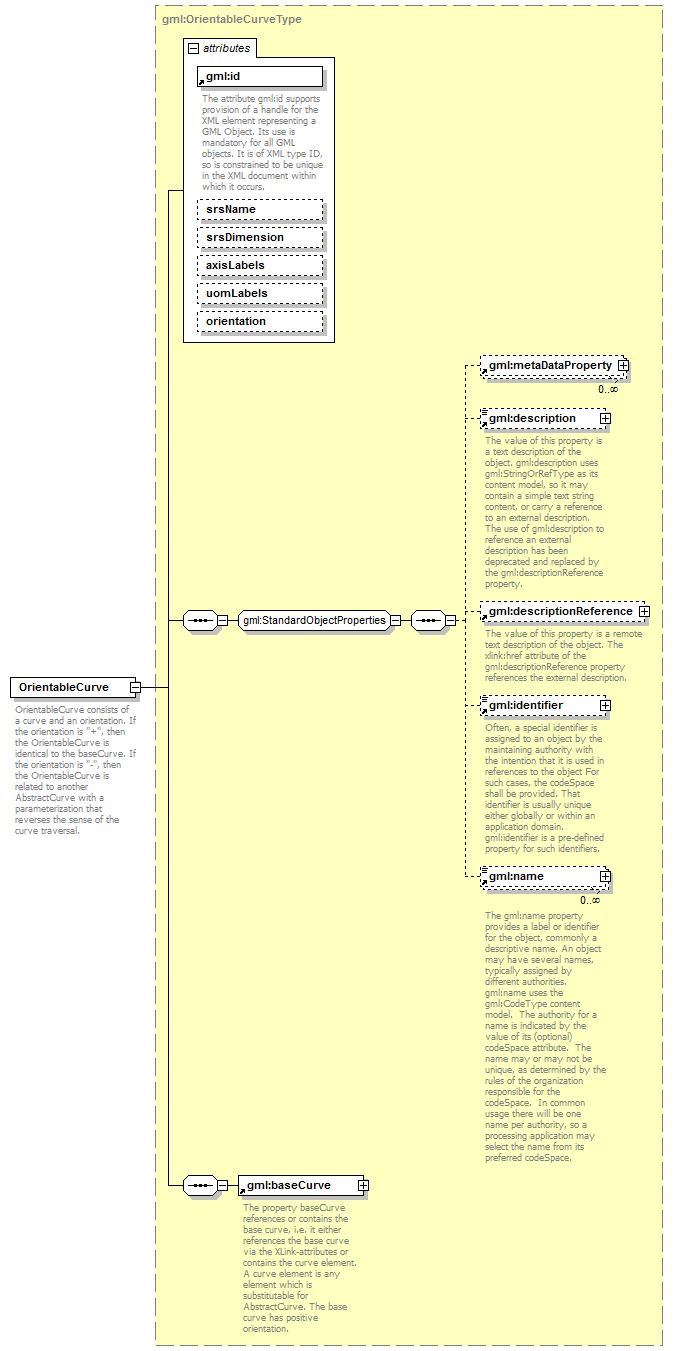

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:OrientableCurveType
properties	content  complex substGrp  gml:AbstractCurve
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:baseCurve
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList          orientation gml:SignType    +
annotation	documentation OrientableCurve consists of a curve and an orientation. If the orientation is "+", then the OrientableCurve is identical to the baseCurve. If the orientation is "-", then the OrientableCurve is related to another AbstractCurve with a parameterization that reverses the sense of the curve traversal.
