element OrientableSurface

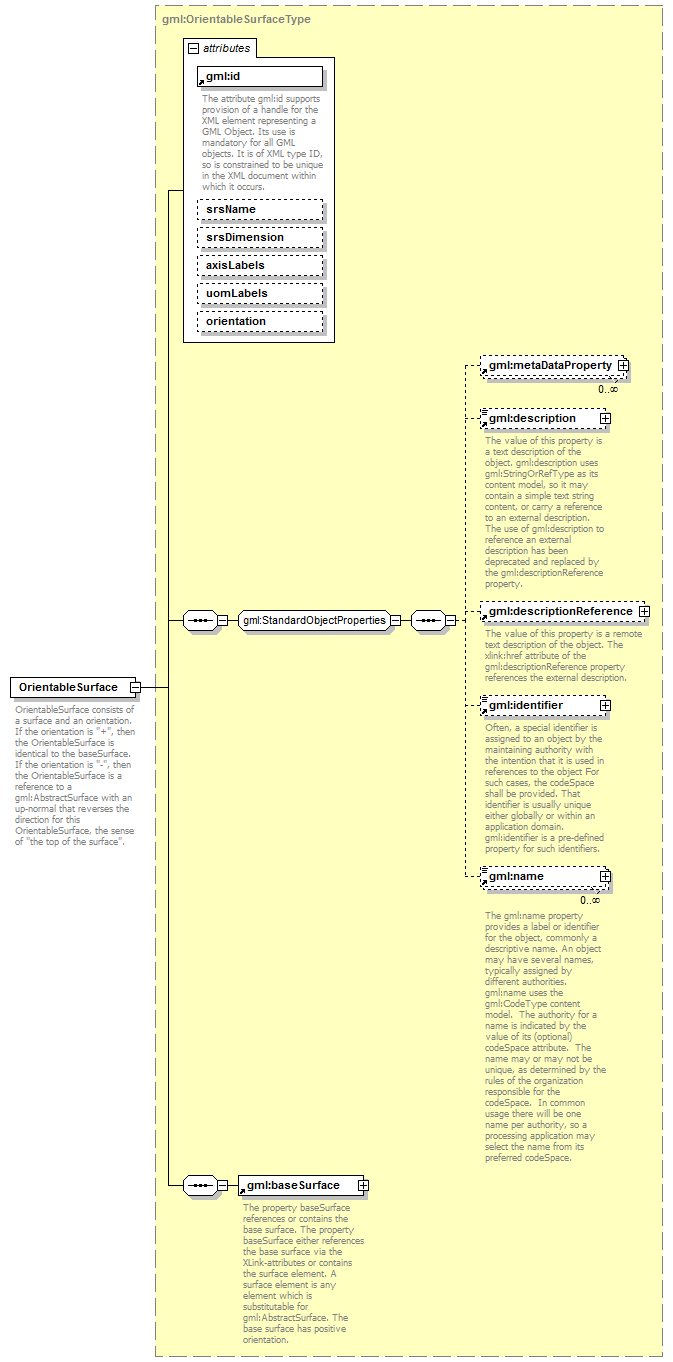

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:OrientableSurfaceType
properties	content  complex substGrp  gml:AbstractSurface
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:baseSurface
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList          orientation gml:SignType    +
annotation	documentation OrientableSurface consists of a surface and an orientation. If the orientation is "+", then the OrientableSurface is identical to the baseSurface. If the orientation is "-", then the OrientableSurface is a reference to a gml:AbstractSurface with an up-normal that reverses the direction for this OrientableSurface, the sense of "the top of the surface".
