element ProcedureLink

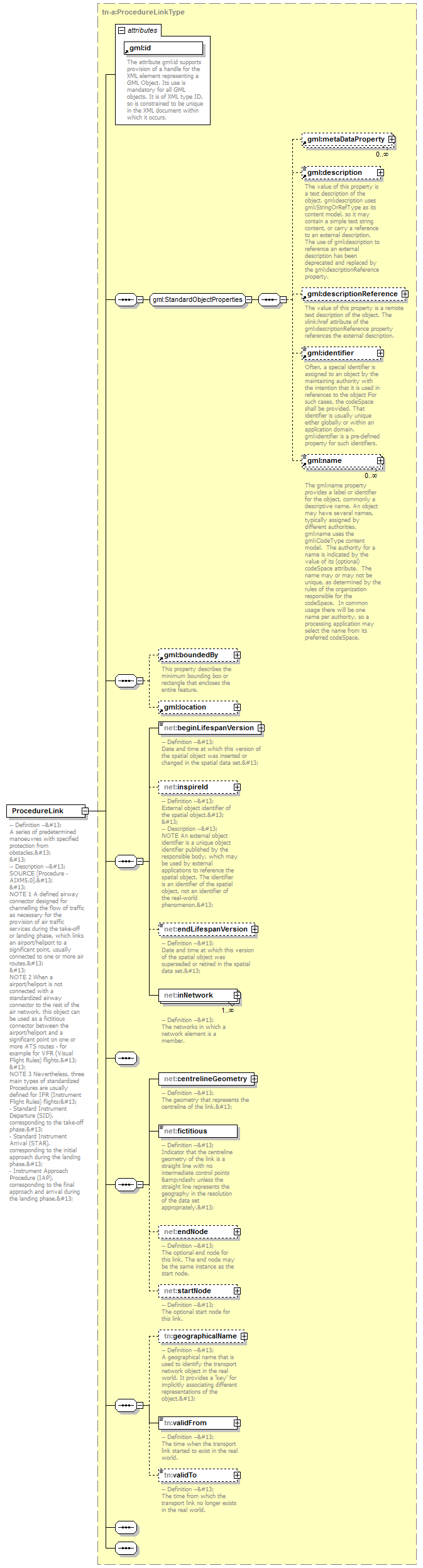

diagram
namespace	urn:x-inspire:specification:gmlas:AirTransportNetwork:3.0
type	tn-a:ProcedureLinkType
properties	content  complex substGrp  tn-a:AirLink
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:beginLifespanVersion net:inspireId net:endLifespanVersion net:inNetwork net:centrelineGeometry net:fictitious net:endNode net:startNode tn:geographicalName tn:validFrom tn:validTo
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
annotation	documentation -- Definition --
 A series of predetermined manoeuvres with specified protection from obstacles.

 -- Description --
 SOURCE [Procedure - AIXM5.0].

 NOTE 1 A defined airway connector designed for channelling the flow of traffic as necessary for the provision of air traffic services during the take-off or landing phase, which links an airport/heliport to a significant point, usually connected to one or more air routes.

 NOTE 2 When a airport/heliport is not connected with a standardized airway connector to the rest of the air network, this object can be used as a fictitious connector between the airport/heliport and a significant point on one or more ATS routes - for example for VFR (Visual Flight Rules) flights.

 NOTE 3 Nevertheless, three main types of standardized Procedures are usually defined for IFR (Instrument Flight Rules) flights:
 - Standard Instrument Departure (SID), corresponding to the take-off phase.
 - Standard Instrument Arrival (STAR), corresponding to the initial approach during the landing phase.
 - Instrument Approach Procedure (IAP), corresponding to the final approach and arrival during the landing phase.
