element Shell

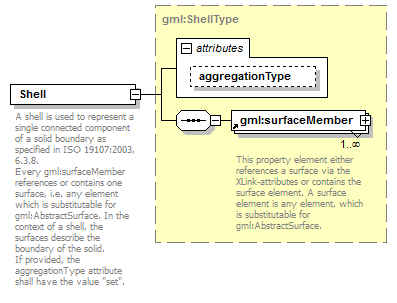

diagram AirQualityReporting_p2135.png
namespace http://www.opengis.net/gml/3.2
type gml:ShellType
properties
content complex
substGrp gml:AbstractObject
children gml:surfaceMember
attributes
Name  Type  Use  Default  Fixed  annotation
aggregationTypegml:AggregationType
annotation
documentation
A shell is used to represent a single connected component of a solid boundary as specified in ISO 19107:2003, 6.3.8.
Every gml:surfaceMember references or contains one surface, i.e. any element which is substitutable for gml:AbstractSurface. In the context of a shell, the surfaces describe the boundary of the solid.
If provided, the aggregationType attribute shall have the value "set".
