element StandardInstrumentDeparture

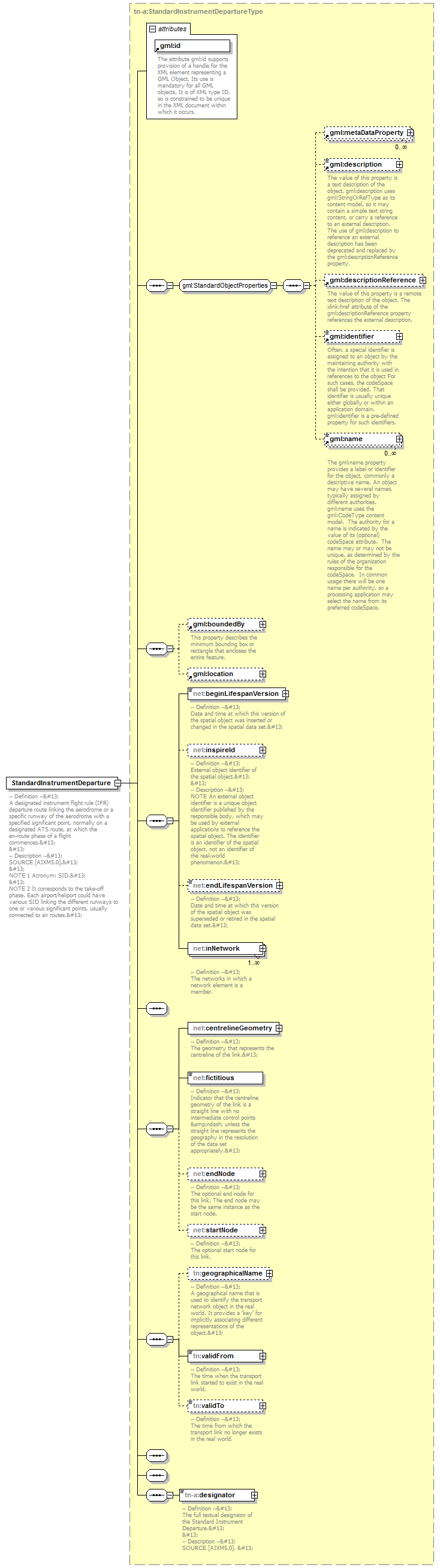

diagram
namespace	urn:x-inspire:specification:gmlas:AirTransportNetwork:3.0
type	tn-a:StandardInstrumentDepartureType
properties	content  complex substGrp  tn-a:ProcedureLink
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:beginLifespanVersion net:inspireId net:endLifespanVersion net:inNetwork net:centrelineGeometry net:fictitious net:endNode net:startNode tn:geographicalName tn:validFrom tn:validTo tn-a:designator
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
annotation	documentation -- Definition --
 A designated instrument flight rule (IFR) departure route linking the aerodrome or a specific runway of the aerodrome with a specified significant point, normally on a designated ATS route, at which the en-route phase of a flight commences.

 -- Description --
 SOURCE [AIXM5.0].

 NOTE 1 Acronym: SID.

 NOTE 2 It corresponds to the take-off phase. Each airport/heliport could have various SID linking the different runways to one or various significant points, usually connected to air routes.
