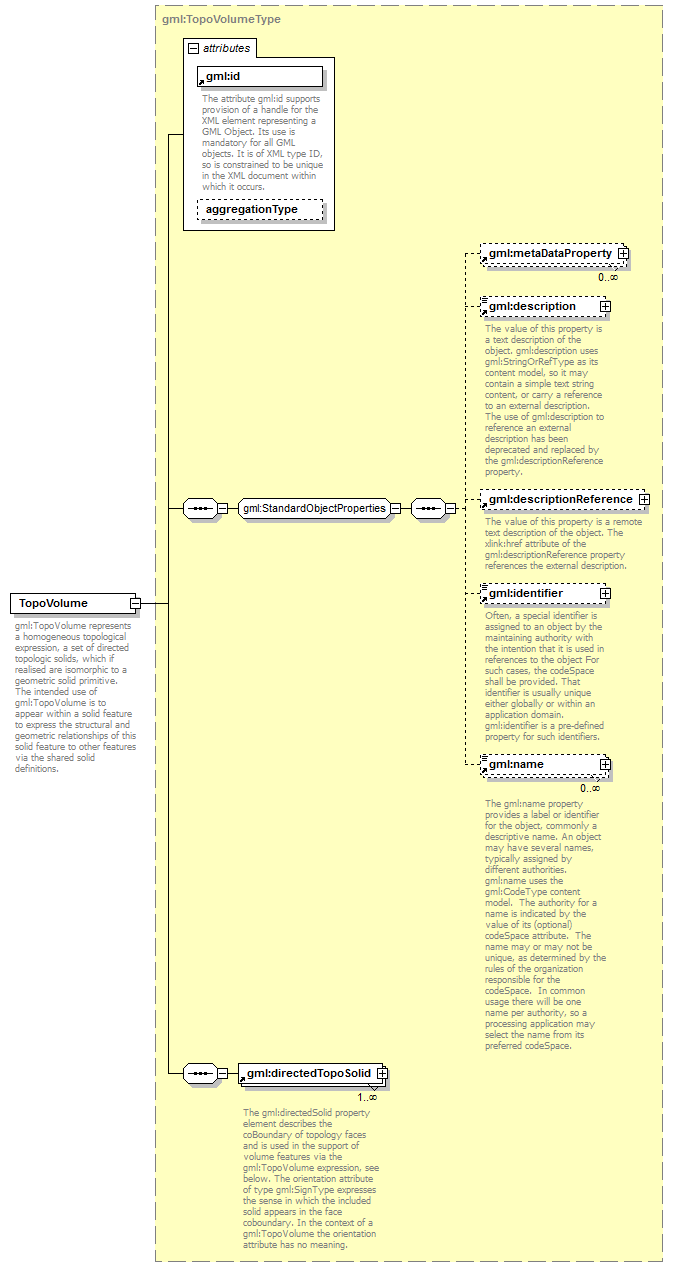

| diagram |
 |
| namespace |
http://www.opengis.net/gml/3.2 |
| type |
gml:TopoVolumeType |
| properties |
|
| children |
gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:directedTopoSolid |
| attributes |
| Name | Type | Use | Default | Fixed | annotation | | id | | required | | | | documentation | | The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. |
| | aggregationType | gml:AggregationType | | | | |
|
| annotation |
| documentation | | gml:TopoVolume represents a homogeneous topological expression, a set of directed topologic solids, which if realised are isomorphic to a geometric solid primitive. The intended use of gml:TopoVolume is to appear within a solid feature to express the structural and geometric relationships of this solid feature to other features via the shared solid definitions. |
|
