element abstractAssociationRole

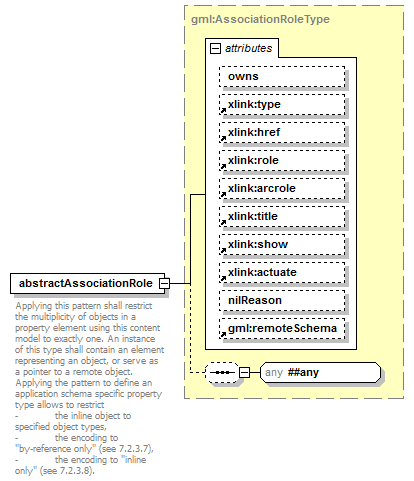

diagram AirQualityReporting_p2239.png
namespace http://www.opengis.net/gml/3.2
type gml:AssociationRoleType
properties
content complex
abstract true
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
Applying this pattern shall restrict the multiplicity of objects in a property element using this content model to exactly one. An instance of this type shall contain an element representing an object, or serve as a pointer to a remote object.
Applying the pattern to define an application schema specific property type allows to restrict
- the inline object to specified object types,
- the encoding to "by-reference only" (see 7.2.3.7),
- the encoding to "inline only" (see 7.2.3.8).
