element secondDefiningParameter

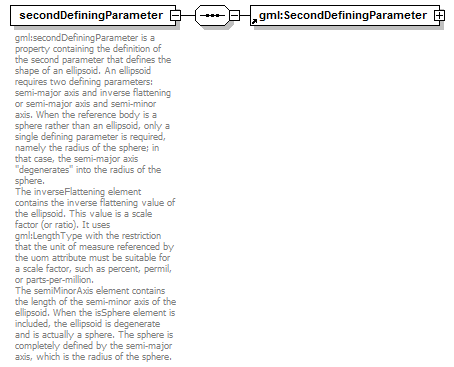

diagram AirQualityReporting_p1598.png
namespace http://www.opengis.net/gml/3.2
properties
content complex
children gml:SecondDefiningParameter
annotation
documentation
gml:secondDefiningParameter is a property containing the definition of the second parameter that defines the shape of an ellipsoid. An ellipsoid requires two defining parameters: semi-major axis and inverse flattening or semi-major axis and semi-minor axis. When the reference body is a sphere rather than an ellipsoid, only a single defining parameter is required, namely the radius of the sphere; in that case, the semi-major axis "degenerates" into the radius of the sphere.
The inverseFlattening element contains the inverse flattening value of the ellipsoid. This value is a scale factor (or ratio). It uses gml:LengthType with the restriction that the unit of measure referenced by the uom attribute must be suitable for a scale factor, such as percent, permil, or parts-per-million.
The semiMinorAxis element contains the length of the semi-minor axis of the ellipsoid. When the isSphere element is included, the ellipsoid is degenerate and is actually a sphere. The sphere is completely defined by the semi-major axis, which is the radius of the sphere.
