complexType AQD_ModelAreaType

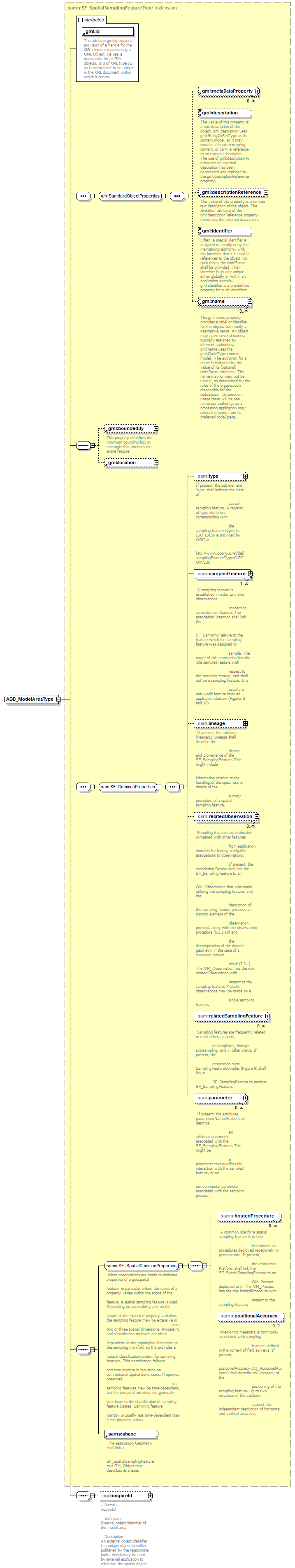

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of sams:SF_SpatialSamplingFeatureType
properties	base  sams:SF_SpatialSamplingFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location sam:type sam:sampledFeature sam:lineage sam:relatedObservation sam:relatedSamplingFeature sam:parameter sams:hostedProcedure sams:positionalAccuracy sams:shape aqd:inspireId
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AQD_ModelAreaType/inspireId

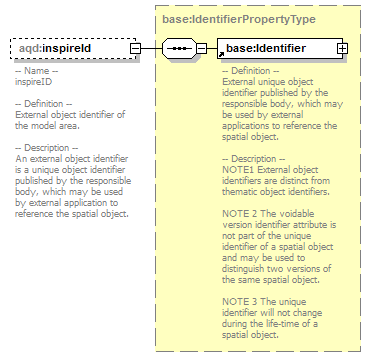

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base:IdentifierPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireID -- Definition -- External object identifier of the model area. -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.
