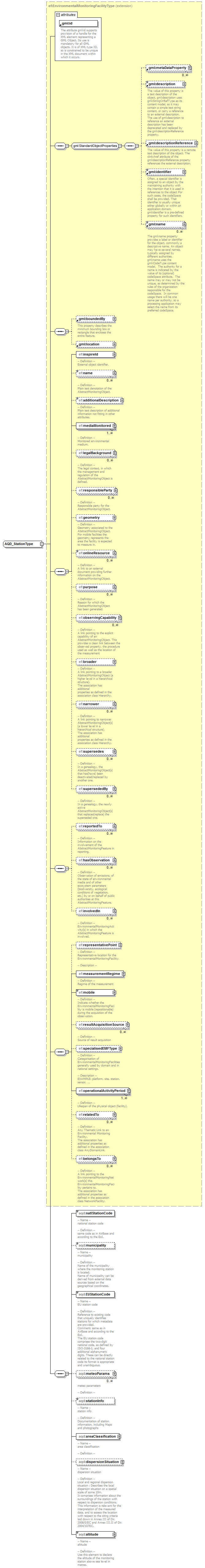

complexType AQD_StationType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of ef:EnvironmentalMonitoringFacilityType
properties	base  ef:EnvironmentalMonitoringFacilityType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:inspireId ef:name ef:additionalDescription ef:mediaMonitored ef:legalBackground ef:responsibleParty ef:geometry ef:onlineResource ef:purpose ef:observingCapability ef:broader ef:narrower ef:supersedes ef:supersededBy ef:reportedTo ef:hasObservation ef:involvedIn ef:representativePoint ef:measurementRegime ef:mobile ef:resultAcquisitionSource ef:specialisedEMFType ef:operationalActivityPeriod ef:relatedTo ef:belongsTo aqd:natlStationCode aqd:municipality aqd:EUStationCode aqd:meteoParams aqd:stationInfo aqd:areaClassification aqd:dispersionSituation aqd:altitude
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AQD_StationType/natlStationCode

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- national station code -- Definition -- same code as in AirBase and according to the EoI.

element AQD_StationType/municipality

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- municipality -- Definition -- Name of the municipality where the monitoring station is located. Name of municipality can be derived from external data sources based on the geographical coordinates.

element AQD_StationType/EUStationCode

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- EU station code -- Definition -- Reference to existing code that uniquely identifies stations for which metadata are provided. Comment: same as in AirBase and according to the EoI. The EU station code comprises the two-digit national code, as defined by ISO-3166-1, and four additional alphanumeric digits. These can be directly related to the national station code its format is appropriate and unambiguous.

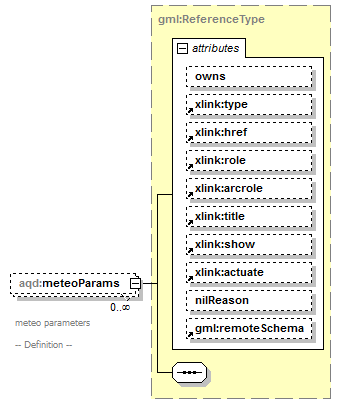

element AQD_StationType/meteoParams

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation meteo parameters -- Definition --

element AQD_StationType/stationInfo

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	anyURI
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- station info -- Definition -- Documentation of station information, including Maps and photographs

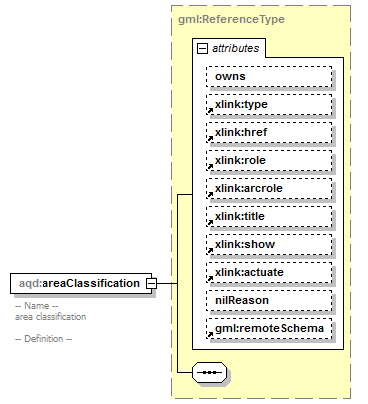

element AQD_StationType/areaClassification

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- area classification -- Definition --

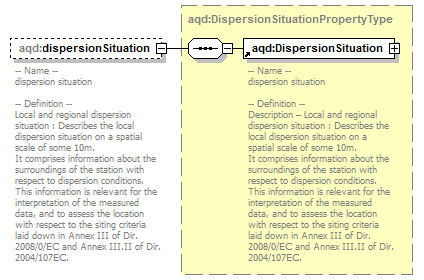

element AQD_StationType/dispersionSituation

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:DispersionSituationPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:DispersionSituation
annotation	documentation -- Name -- dispersion situation -- Definition -- Local and regional dispersion situation : Describes the local dispersion situation on a spatial scale of some 10m. It comprises information about the surroundings of the station with respect to dispersion conditions. This information is relevant for the interpretation of the measured data, and to assess the location with respect to the siting criteria laid down in Annex III of Dir. 2008/0/EC and Annex III.II of Dir. 2004/107EC.

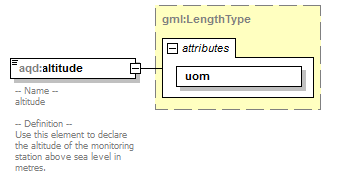

element AQD_StationType/altitude

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:LengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- altitude -- Definition -- Use this element to declare the altitude of the monitoring station above sea level in metres.
