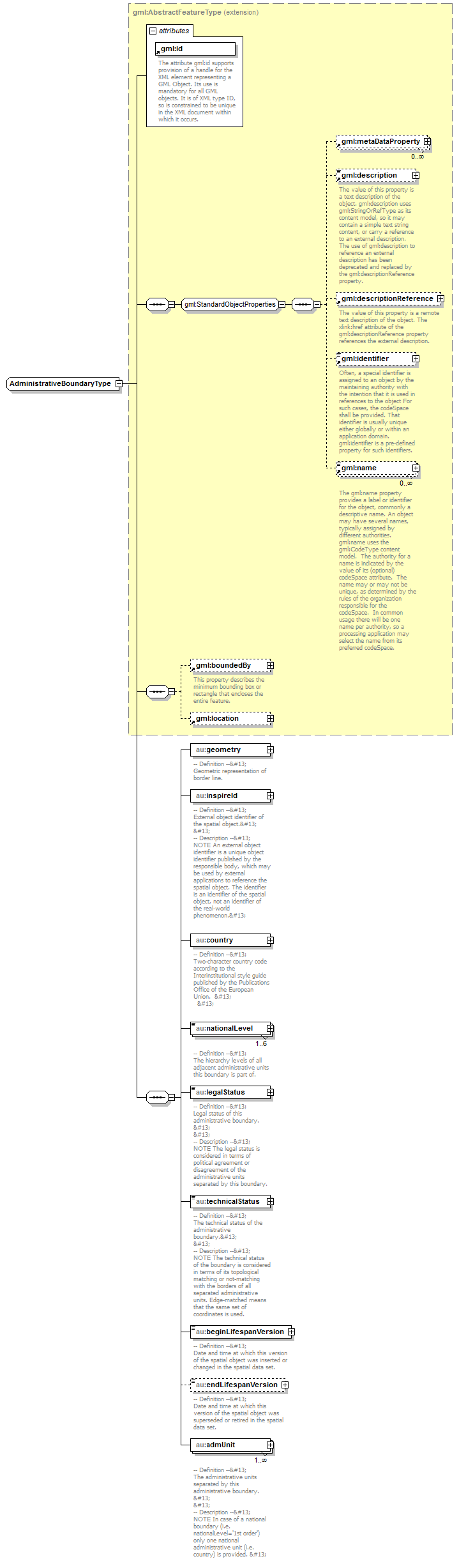

complexType AdministrativeBoundaryType

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location au:geometry au:inspireId au:country au:nationalLevel au:legalStatus au:technicalStatus au:beginLifespanVersion au:endLifespanVersion au:admUnit
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

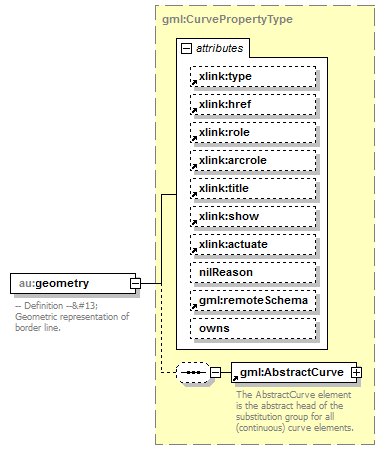

element AdministrativeBoundaryType/geometry

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	gml:CurvePropertyType
properties	isRef  0 content  complex
children	gml:AbstractCurve
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition --
 Geometric representation of border line.

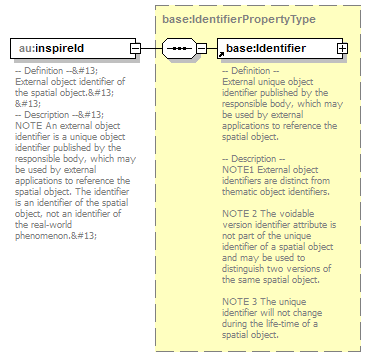

element AdministrativeBoundaryType/inspireId

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Definition --
 External object identifier of the spatial object.

 -- Description --
 NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon.

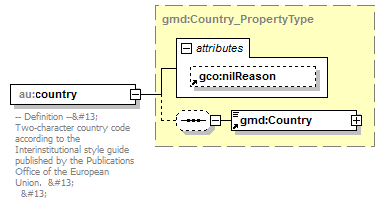

element AdministrativeBoundaryType/country

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	gmd:Country_PropertyType
properties	isRef  0 content  complex
children	gmd:Country
attributes	Name   Type   Use   Default   Fixed   annotation nilReason
annotation	documentation -- Definition --
 Two-character country code according to the Interinstitutional style guide published by the Publications Office of the European Union.

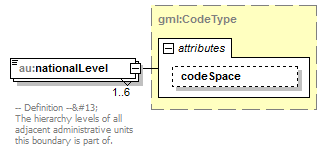

element AdministrativeBoundaryType/nationalLevel

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	gml:CodeType
properties	isRef  0 minOcc  1 maxOcc  6 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation codeSpace anyURI
annotation	documentation -- Definition --
 The hierarchy levels of all adjacent administrative units this boundary is part of.

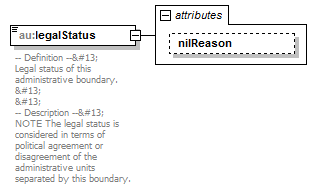

element AdministrativeBoundaryType/legalStatus

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	extension of au:LegalStatusValueType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Legal status of this administrative boundary.

 -- Description --
 NOTE The legal status is considered in terms of political agreement or disagreement of the administrative units separated by this boundary.

attribute AdministrativeBoundaryType/legalStatus/@nilReason

type	gml:NilReasonType
properties	isRef  0

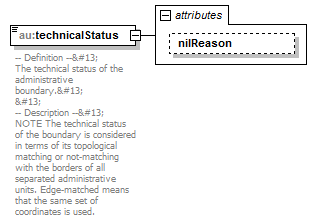

element AdministrativeBoundaryType/technicalStatus

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	extension of au:TechnicalStatusValueType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The technical status of the administrative boundary.

 -- Description --
 NOTE The technical status of the boundary is considered in terms of its topological matching or not-matching with the borders of all separated administrative units. Edge-matched means that the same set of coordinates is used.

attribute AdministrativeBoundaryType/technicalStatus/@nilReason

type	gml:NilReasonType
properties	isRef  0

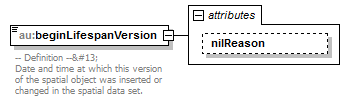

element AdministrativeBoundaryType/beginLifespanVersion

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Date and time at which this version of the spatial object was inserted or changed in the spatial data set.

attribute AdministrativeBoundaryType/beginLifespanVersion/@nilReason

type	gml:NilReasonType
properties	isRef  0

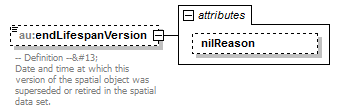

element AdministrativeBoundaryType/endLifespanVersion

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	extension of dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Date and time at which this version of the spatial object was superseded or retired in the spatial data set.

attribute AdministrativeBoundaryType/endLifespanVersion/@nilReason

type	gml:NilReasonType
properties	isRef  0

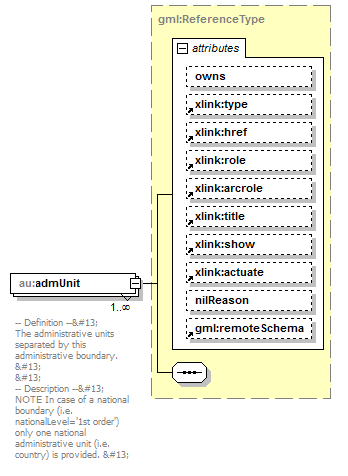

element AdministrativeBoundaryType/admUnit

diagram
namespace	urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition --&#13; The administrative units separated by this administrative boundary. &#13; &#13; -- Description --&#13; NOTE In case of a national boundary (i.e. nationalLevel='1st order')  only one national administrative unit (i.e. country) is provided. &#13; appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">au:AdministrativeUnit</targetElement> <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">au:boundary</reversePropertyName>
