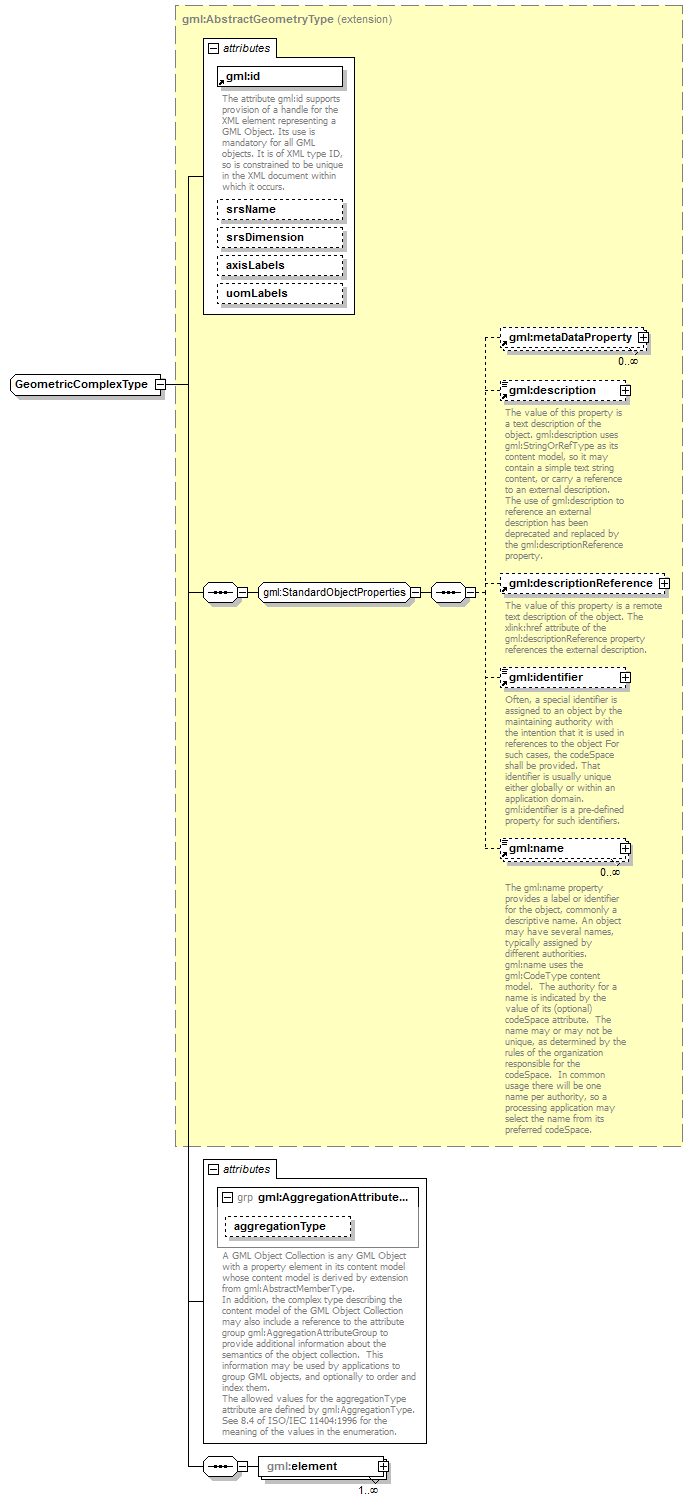

complexType GeometricComplexType

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractGeometryType
properties	base  gml:AbstractGeometryType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:element
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList          aggregationType gml:AggregationType

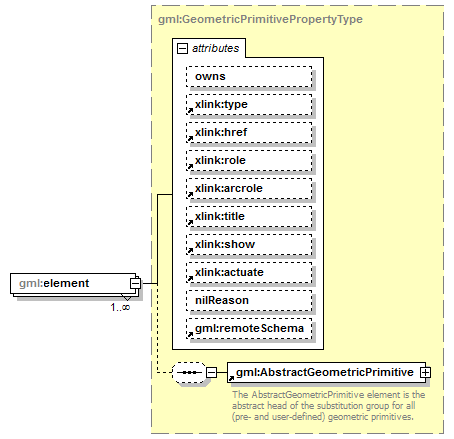

element GeometricComplexType/element

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:GeometricPrimitivePropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	gml:AbstractGeometricPrimitive
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
