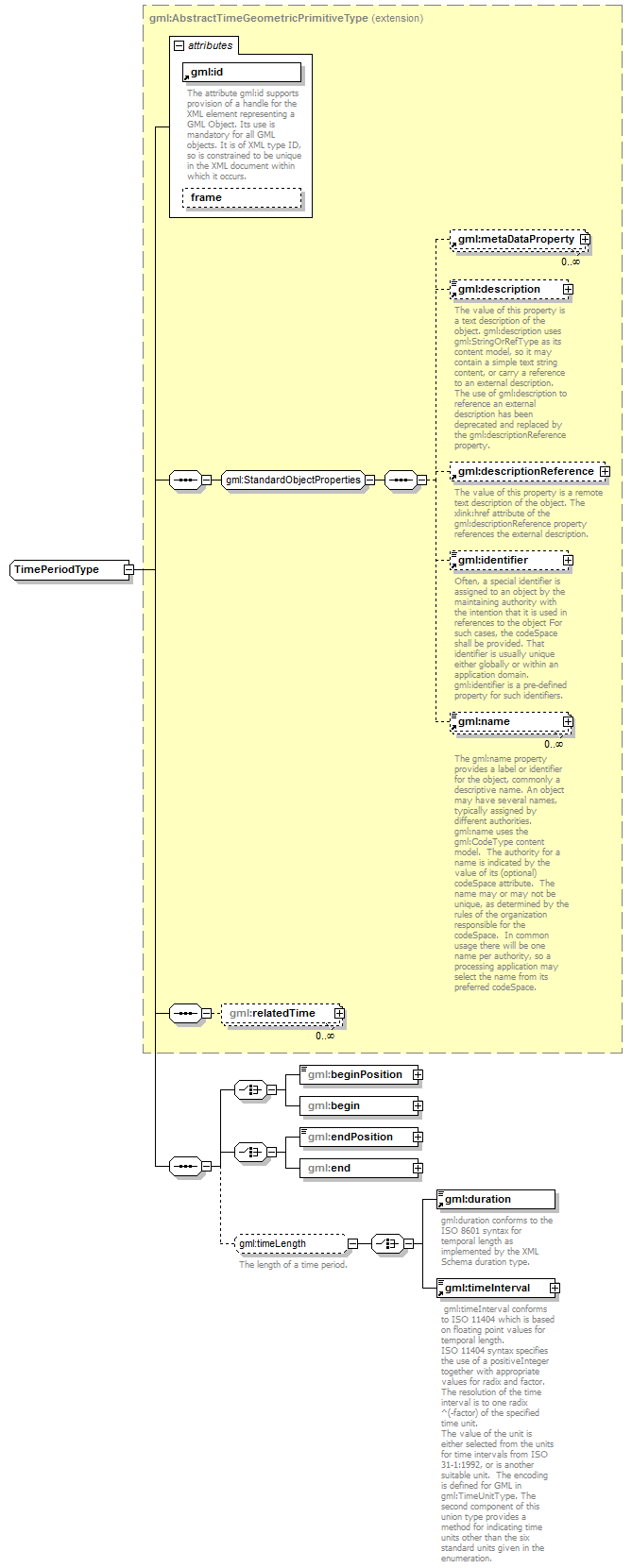

complexType TimePeriodType

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractTimeGeometricPrimitiveType
properties	base  gml:AbstractTimeGeometricPrimitiveType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:relatedTime gml:beginPosition gml:begin gml:endPosition gml:end gml:duration gml:timeInterval
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. frame anyURI    #ISO-8601

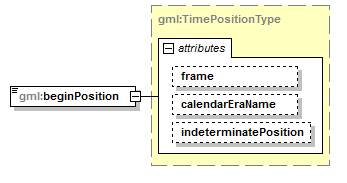

element TimePeriodType/beginPosition

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimePositionType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation frame anyURI    #ISO-8601      calendarEraName string          indeterminatePosition gml:TimeIndeterminateValueType

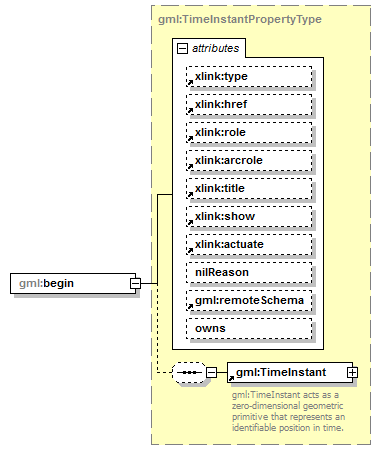

element TimePeriodType/begin

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimeInstantPropertyType
properties	isRef  0 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

element TimePeriodType/endPosition

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimePositionType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation frame anyURI    #ISO-8601      calendarEraName string          indeterminatePosition gml:TimeIndeterminateValueType

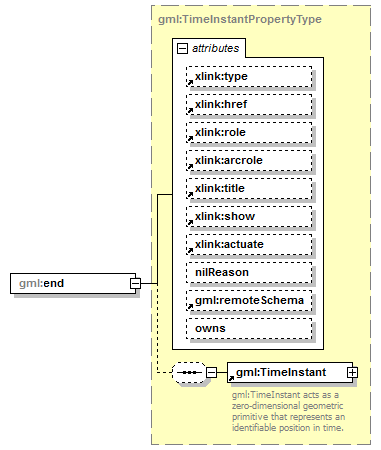

element TimePeriodType/end

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:TimeInstantPropertyType
properties	isRef  0 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
