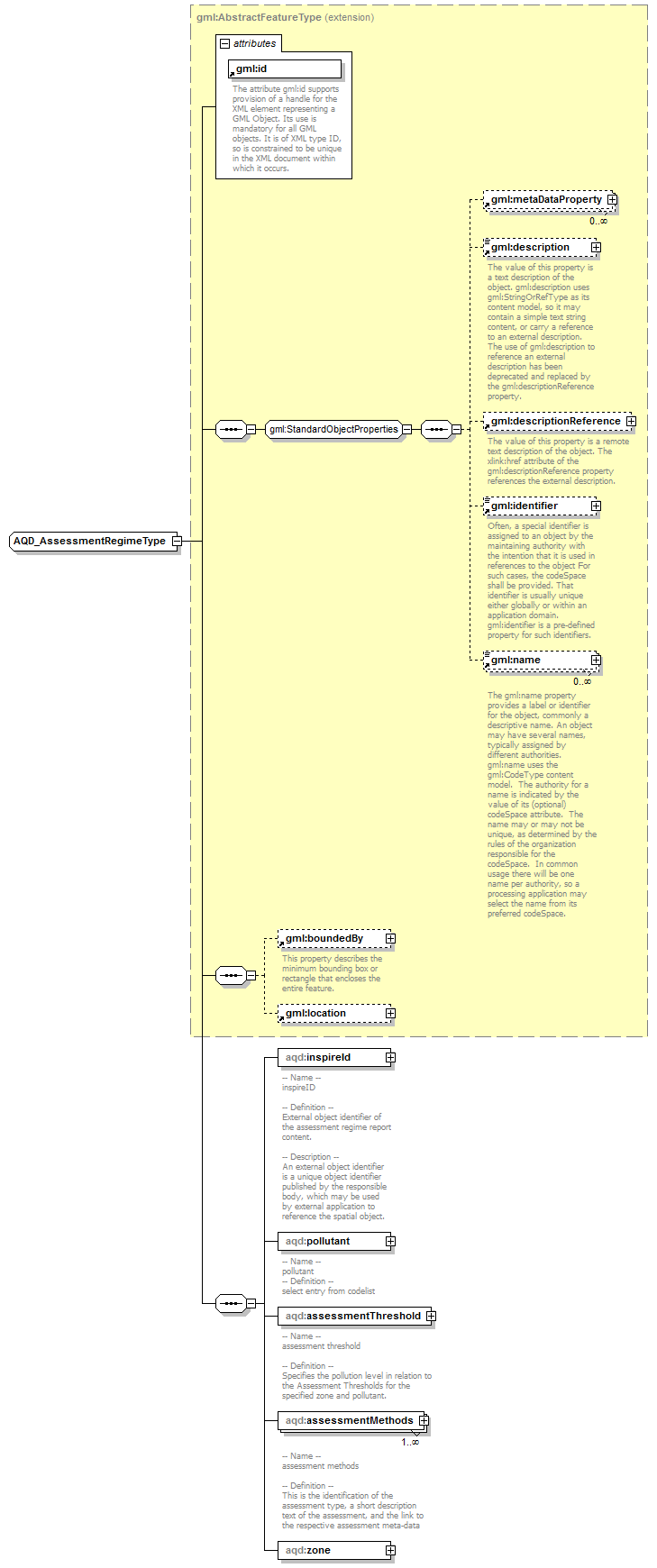

complexType AQD_AssessmentRegimeType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location aqd:inspireId aqd:pollutant aqd:assessmentThreshold aqd:assessmentMethods aqd:zone
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

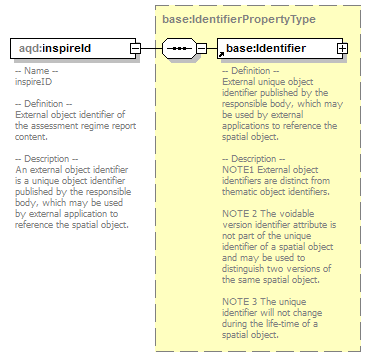

element AQD_AssessmentRegimeType/inspireId

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireID -- Definition -- External object identifier of the assessment regime report content. -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.

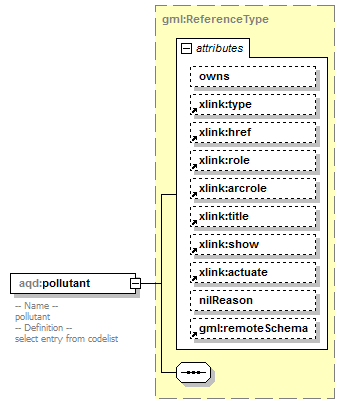

element AQD_AssessmentRegimeType/pollutant

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- pollutant -- Definition -- select entry from codelist

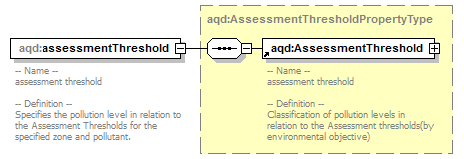

element AQD_AssessmentRegimeType/assessmentThreshold

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AssessmentThresholdPropertyType
properties	isRef  0 content  complex
children	aqd:AssessmentThreshold
annotation	documentation -- Name -- assessment threshold -- Definition -- Specifies the pollution level in relation to the Assessment Thresholds for the specified zone and pollutant.

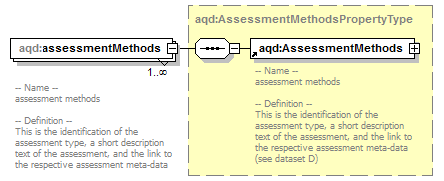

element AQD_AssessmentRegimeType/assessmentMethods

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AssessmentMethodsPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	aqd:AssessmentMethods
annotation	documentation -- Name -- assessment methods -- Definition -- This is the identification of the assessment type, a short description text of the assessment, and the link to the respective assessment meta-data

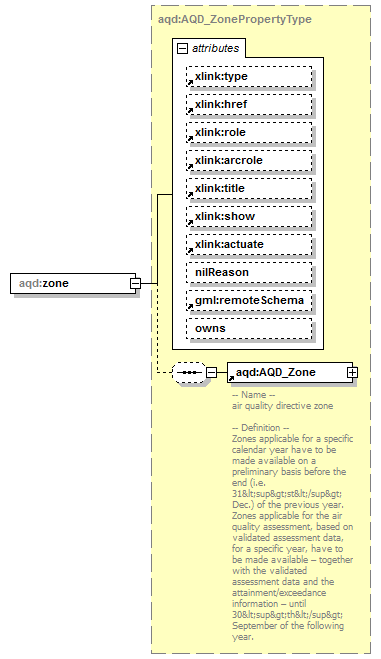

element AQD_AssessmentRegimeType/zone

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_ZonePropertyType
properties	isRef  0 content  complex
children	aqd:AQD_Zone
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
