complexType AQD_AttainmentType

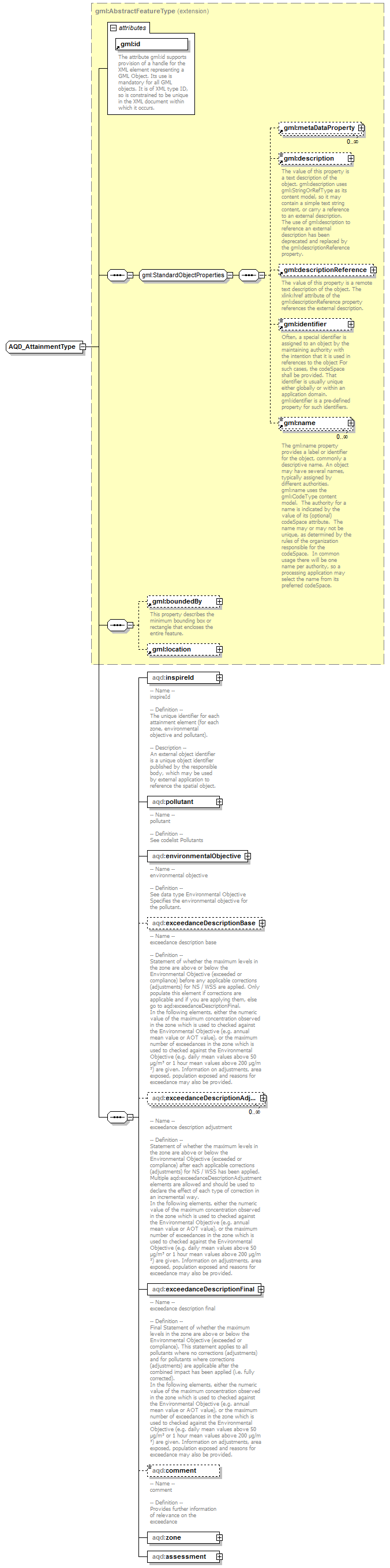

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location aqd:inspireId aqd:pollutant aqd:environmentalObjective aqd:exceedanceDescriptionBase aqd:exceedanceDescriptionAdjustment aqd:exceedanceDescriptionFinal aqd:comment aqd:zone aqd:assessment
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AQD_AttainmentType/inspireId

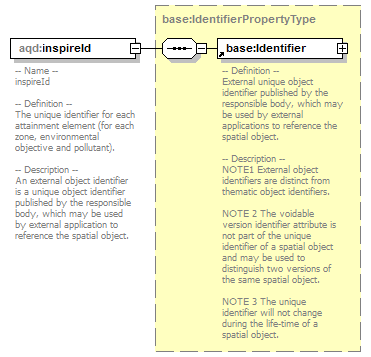

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireId -- Definition -- The unique identifier for each attainment element (for each zone, environmental objective and pollutant). -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.

element AQD_AttainmentType/pollutant

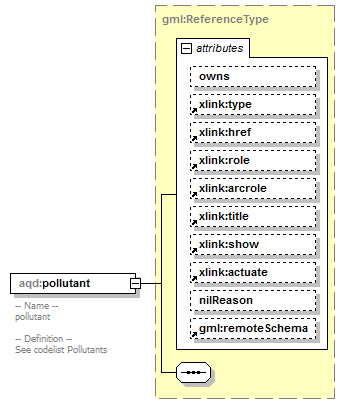

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- pollutant -- Definition -- See codelist Pollutants

element AQD_AttainmentType/environmentalObjective

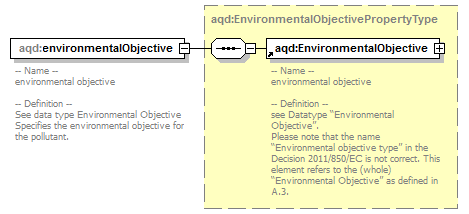

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:EnvironmentalObjectivePropertyType
properties	isRef  0 content  complex
children	aqd:EnvironmentalObjective
annotation	documentation -- Name -- environmental objective -- Definition -- See data type Environmental Objective Specifies the environmental objective for the pollutant.

element AQD_AttainmentType/exceedanceDescriptionBase

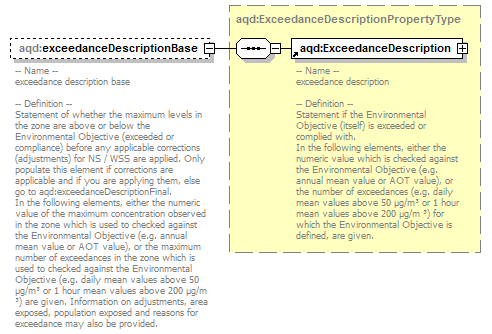

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:ExceedanceDescriptionPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:ExceedanceDescription
annotation	documentation -- Name -- exceedance description base -- Definition -- Statement of whether the maximum levels in the zone are above or below the Environmental Objective (exceeded or compliance) before any applicable corrections (adjustments) for NS / WSS are applied. Only populate this element if corrections are applicable and if you are applying them, else go to aqd:exceedanceDescriptionFinal. In the following elements, either the numeric value of the maximum concentration observed in the zone which is used to checked against the Environmental Objective (e.g. annual mean value or AOT value), or the maximum number of exceedances in the zone which is used to checked against the Environmental Objective (e.g. daily mean values above 50 µg/m³ or 1 hour mean values above 200 µg/m ³) are given. Information on adjustments, area exposed, population exposed and reasons for exceedance may also be provided.

element AQD_AttainmentType/exceedanceDescriptionAdjustment

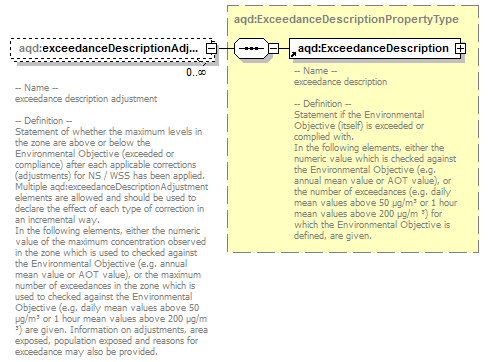

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:ExceedanceDescriptionPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:ExceedanceDescription
annotation	documentation -- Name -- exceedance description adjustment -- Definition -- Statement of whether the maximum levels in the zone are above or below the Environmental Objective (exceeded or compliance) after each applicable corrections (adjustments) for NS / WSS has been applied. Multiple aqd:exceedanceDescriptionAdjustment elements are allowed and should be used to declare the effect of each type of correction in an incremental way. In the following elements, either the numeric value of the maximum concentration observed in the zone which is used to checked against the Environmental Objective (e.g. annual mean value or AOT value), or the maximum number of exceedances in the zone which is used to checked against the Environmental Objective (e.g. daily mean values above 50 µg/m³ or 1 hour mean values above 200 µg/m ³) are given. Information on adjustments, area exposed, population exposed and reasons for exceedance may also be provided.

element AQD_AttainmentType/exceedanceDescriptionFinal

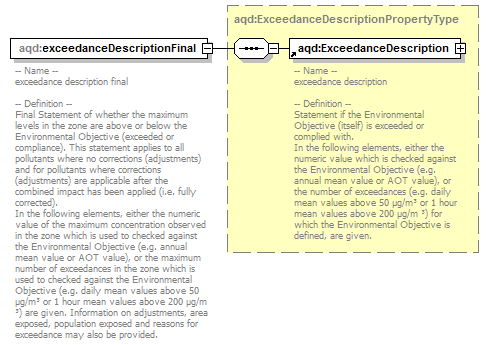

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:ExceedanceDescriptionPropertyType
properties	isRef  0 content  complex
children	aqd:ExceedanceDescription
annotation	documentation -- Name -- exceedance description final -- Definition -- Final Statement of whether the maximum levels in the zone are above or below the Environmental Objective (exceeded or compliance). This statement applies to all pollutants where no corrections (adjustments) and for pollutants where corrections (adjustments) are applicable after the combined impact has been applied (i.e. fully corrected). In the following elements, either the numeric value of the maximum concentration observed in the zone which is used to checked against the Environmental Objective (e.g. annual mean value or AOT value), or the maximum number of exceedances in the zone which is used to checked against the Environmental Objective (e.g. daily mean values above 50 µg/m³ or 1 hour mean values above 200 µg/m ³) are given. Information on adjustments, area exposed, population exposed and reasons for exceedance may also be provided.

element AQD_AttainmentType/comment

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- comment -- Definition -- Provides further information of relevance on the exceedance

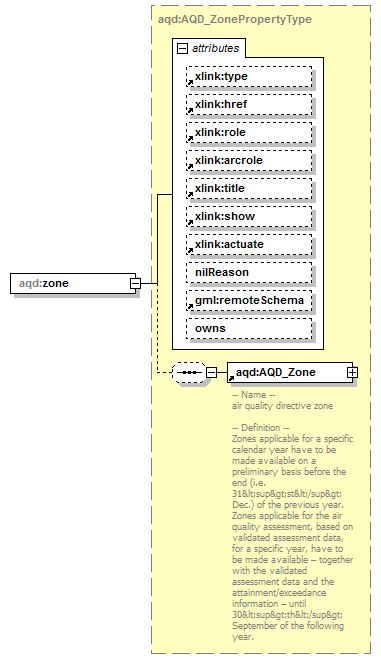

element AQD_AttainmentType/zone

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_ZonePropertyType
properties	isRef  0 content  complex
children	aqd:AQD_Zone
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

element AQD_AttainmentType/assessment

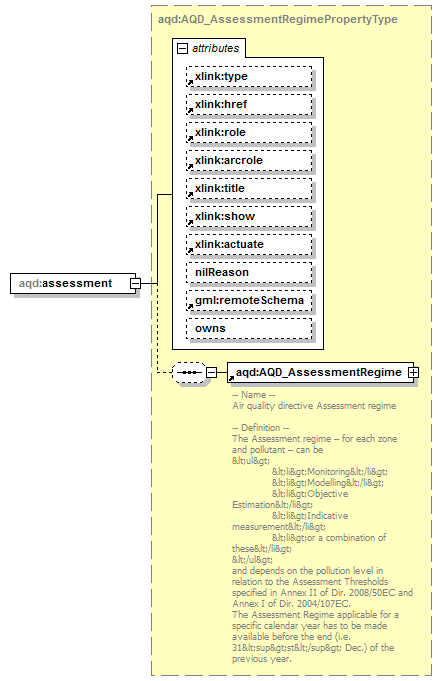

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_AssessmentRegimePropertyType
properties	isRef  0 content  complex
children	aqd:AQD_AssessmentRegime
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
