complexType AQD_EvaluationScenarioType

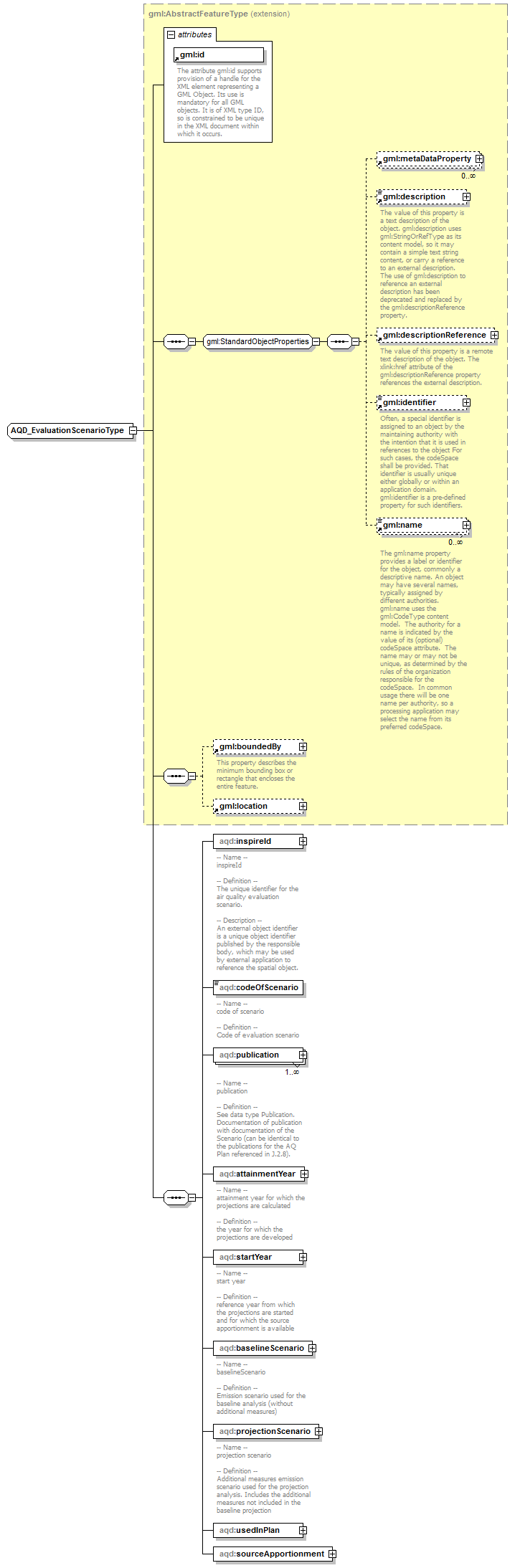

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location aqd:inspireId aqd:codeOfScenario aqd:publication aqd:attainmentYear aqd:startYear aqd:baselineScenario aqd:projectionScenario aqd:usedInPlan aqd:sourceApportionment
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

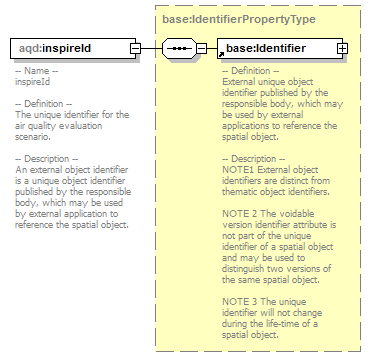

element AQD_EvaluationScenarioType/inspireId

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireId -- Definition -- The unique identifier for the air quality evaluation scenario. -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.

element AQD_EvaluationScenarioType/codeOfScenario

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- code of scenario -- Definition -- Code of evaluation scenario

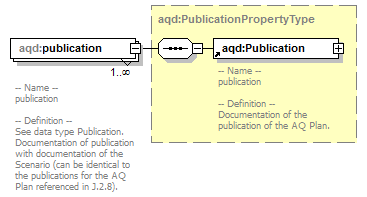

element AQD_EvaluationScenarioType/publication

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:PublicationPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	aqd:Publication
annotation	documentation -- Name -- publication -- Definition -- See data type Publication. Documentation of publication with documentation of the Scenario (can be identical to the publications for the AQ Plan referenced in J.2.8).

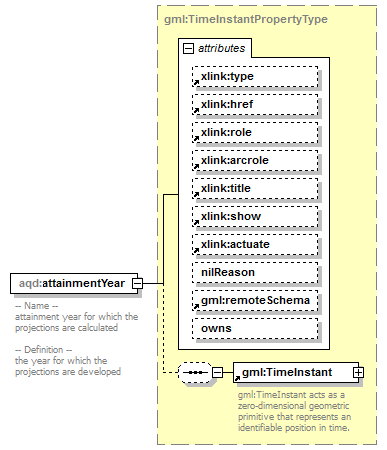

element AQD_EvaluationScenarioType/attainmentYear

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimeInstantPropertyType
properties	isRef  0 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- attainment year for which the projections are calculated -- Definition -- the year for which the projections are developed

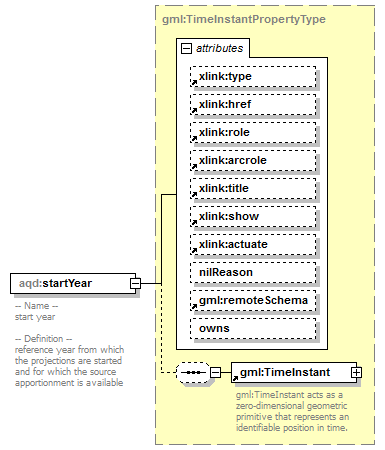

element AQD_EvaluationScenarioType/startYear

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimeInstantPropertyType
properties	isRef  0 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- start year -- Definition -- reference year from which the projections are started and for which the source apportionment is available

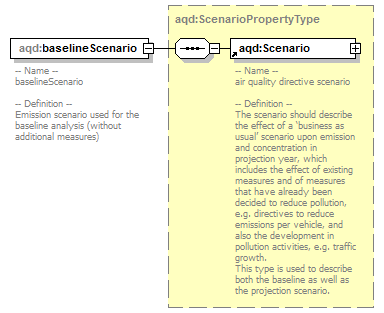

element AQD_EvaluationScenarioType/baselineScenario

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:ScenarioPropertyType
properties	isRef  0 content  complex
children	aqd:Scenario
annotation	documentation -- Name -- baselineScenario -- Definition -- Emission scenario used for the baseline analysis (without additional measures)

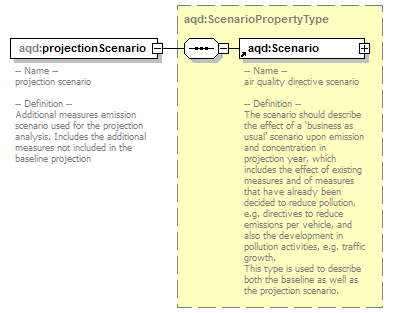

element AQD_EvaluationScenarioType/projectionScenario

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:ScenarioPropertyType
properties	isRef  0 content  complex
children	aqd:Scenario
annotation	documentation -- Name -- projection scenario -- Definition -- Additional measures emission scenario used for the projection analysis. Includes the additional measures not included in the baseline projection

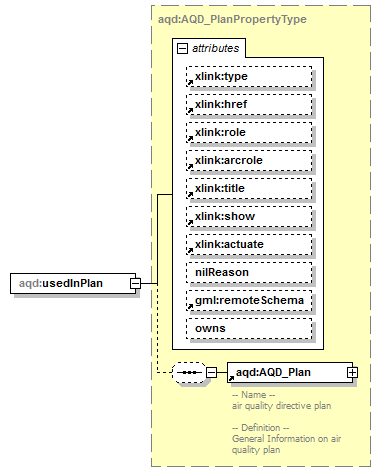

element AQD_EvaluationScenarioType/usedInPlan

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_PlanPropertyType
properties	isRef  0 content  complex
children	aqd:AQD_Plan
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

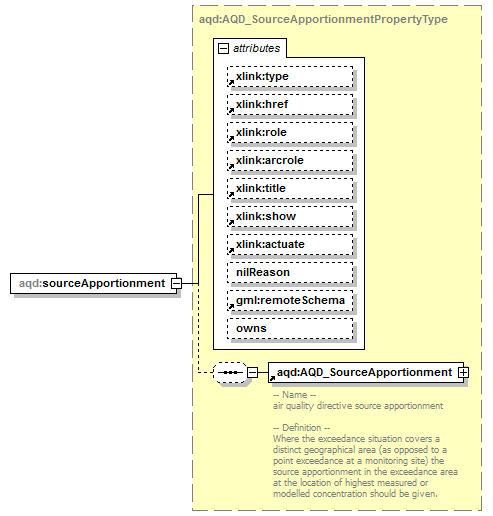

element AQD_EvaluationScenarioType/sourceApportionment

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_SourceApportionmentPropertyType
properties	isRef  0 content  complex
children	aqd:AQD_SourceApportionment
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
