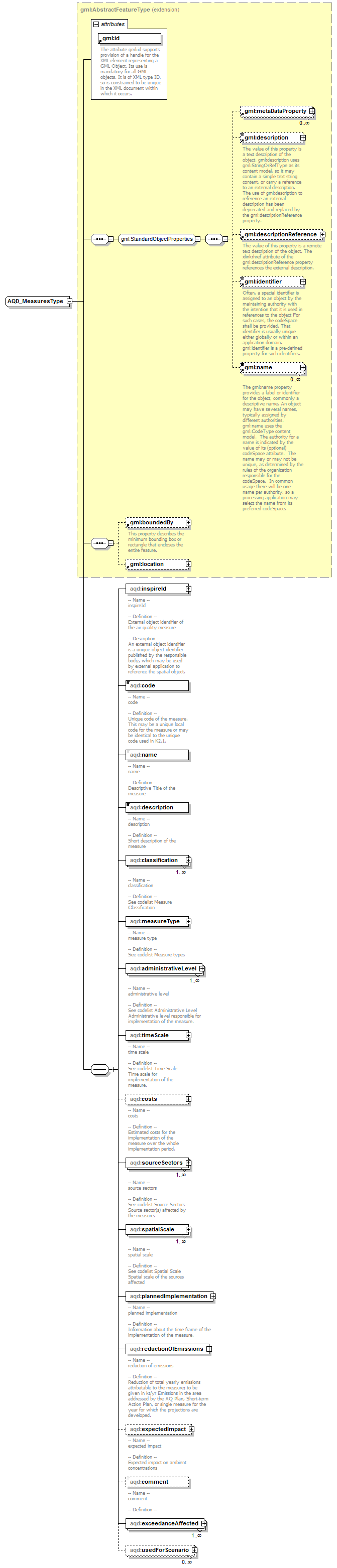

complexType AQD_MeasuresType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location aqd:inspireId aqd:code aqd:name aqd:description aqd:classification aqd:measureType aqd:administrativeLevel aqd:timeScale aqd:costs aqd:sourceSectors aqd:spatialScale aqd:plannedImplementation aqd:reductionOfEmissions aqd:expectedImpact aqd:comment aqd:exceedanceAffected aqd:usedForScenario
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

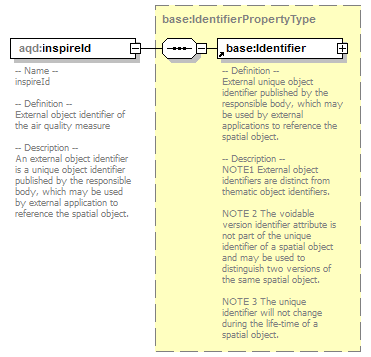

element AQD_MeasuresType/inspireId

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireId -- Definition -- External object identifier of the air quality measure -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.

element AQD_MeasuresType/code

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- code -- Definition -- Unique code of the measure. This may be a unique local code for the measure or may be identical to the unique code used in K2.1.

element AQD_MeasuresType/name

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- name -- Definition -- Descriptive Title of the measure

element AQD_MeasuresType/description

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- description -- Definition -- Short description of the measure

element AQD_MeasuresType/classification

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- classification -- Definition -- See codelist Measure Classification

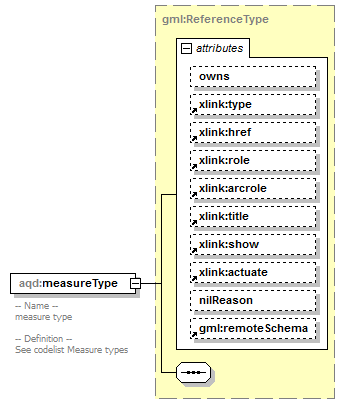

element AQD_MeasuresType/measureType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- measure type -- Definition -- See codelist Measure types

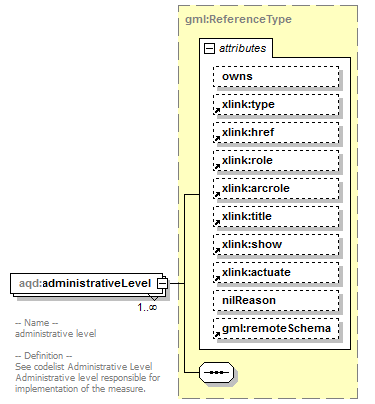

element AQD_MeasuresType/administrativeLevel

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- administrative level -- Definition -- See codelist Administrative Level Administrative level responsible for implementation of the measure.

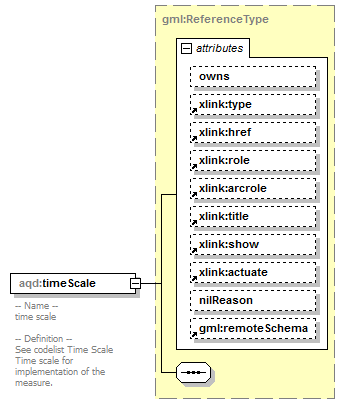

element AQD_MeasuresType/timeScale

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- time scale -- Definition -- See codelist Time Scale Time scale for implementation of the measure.

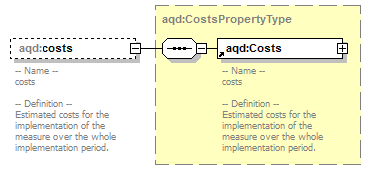

element AQD_MeasuresType/costs

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:CostsPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:Costs
annotation	documentation -- Name -- costs -- Definition -- Estimated costs for the implementation of the measure over the whole implementation period.

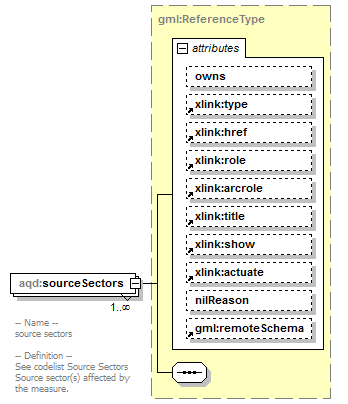

element AQD_MeasuresType/sourceSectors

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- source sectors -- Definition -- See codelist Source Sectors Source sector(s) affected by the measure.

element AQD_MeasuresType/spatialScale

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- spatial scale -- Definition -- See codelist Spatial Scale Spatial scale of the sources affected

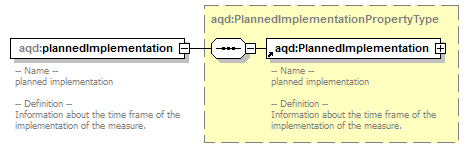

element AQD_MeasuresType/plannedImplementation

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:PlannedImplementationPropertyType
properties	isRef  0 content  complex
children	aqd:PlannedImplementation
annotation	documentation -- Name -- planned implementation -- Definition -- Information about the time frame of the implementation of the measure.

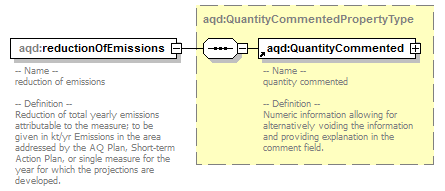

element AQD_MeasuresType/reductionOfEmissions

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:QuantityCommentedPropertyType
properties	isRef  0 content  complex
children	aqd:QuantityCommented
annotation	documentation -- Name -- reduction of emissions -- Definition -- Reduction of total yearly emissions attributable to the measure; to be given in kt/yr Emissions in the area addressed by the AQ Plan, Short-term Action Plan, or single measure for the year for which the projections are developed.

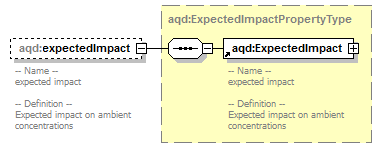

element AQD_MeasuresType/expectedImpact

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:ExpectedImpactPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:ExpectedImpact
annotation	documentation -- Name -- expected impact -- Definition -- Expected impact on ambient concentrations

element AQD_MeasuresType/comment

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- comment -- Definition --

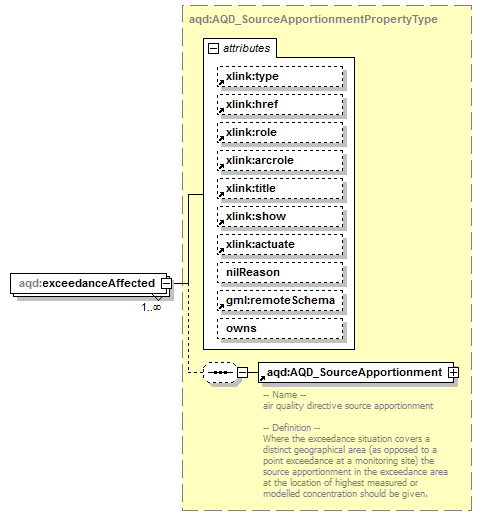

element AQD_MeasuresType/exceedanceAffected

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_SourceApportionmentPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	aqd:AQD_SourceApportionment
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

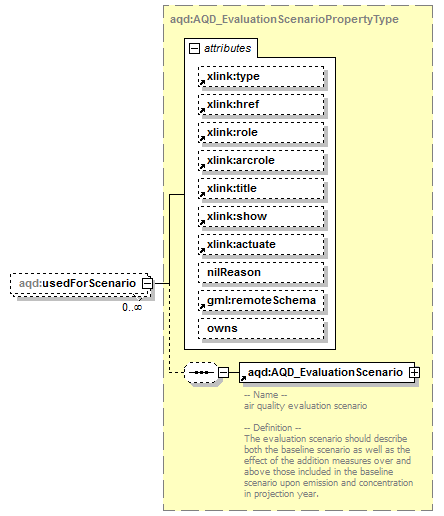

element AQD_MeasuresType/usedForScenario

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_EvaluationScenarioPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AQD_EvaluationScenario
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
