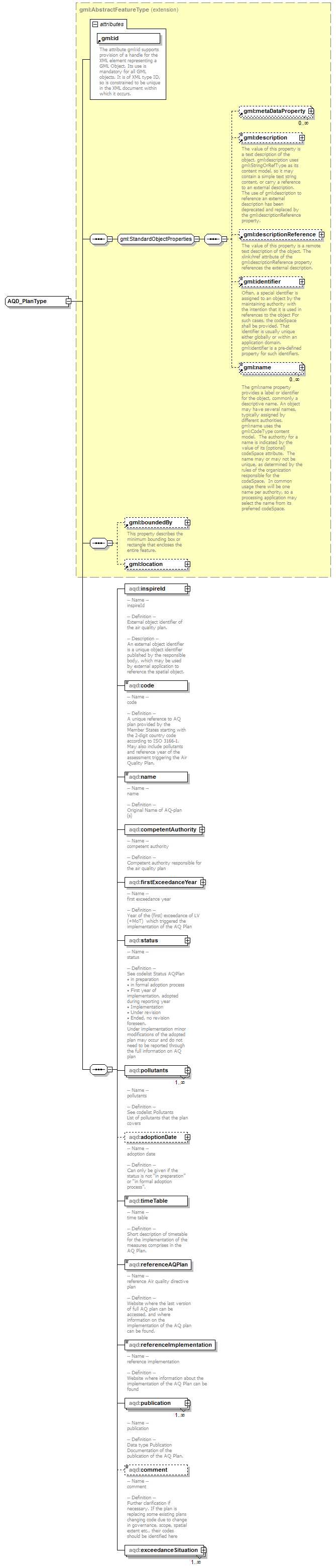

complexType AQD_PlanType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location aqd:inspireId aqd:code aqd:name aqd:competentAuthority aqd:firstExceedanceYear aqd:status aqd:pollutants aqd:adoptionDate aqd:timeTable aqd:referenceAQPlan aqd:referenceImplementation aqd:publication aqd:comment aqd:exceedanceSituation
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

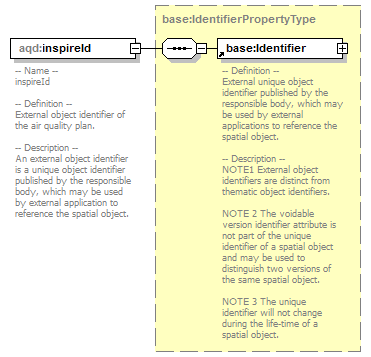

element AQD_PlanType/inspireId

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireId -- Definition -- External object identifier of the air quality plan. -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.

element AQD_PlanType/code

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- code -- Definition -- A unique reference to AQ plan provided by the Member States starting with the 2-digit country code according to ISO 3166-1. May also include pollutants and reference year of the assessment triggering the Air Quality Plan.

element AQD_PlanType/name

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- name -- Definition -- Original Name of AQ-plan (s)

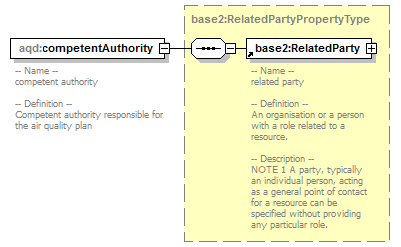

element AQD_PlanType/competentAuthority

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base2:RelatedPartyPropertyType
properties	isRef  0 content  complex
children	base2:RelatedParty
annotation	documentation -- Name -- competent authority -- Definition -- Competent authority responsible for the air quality plan

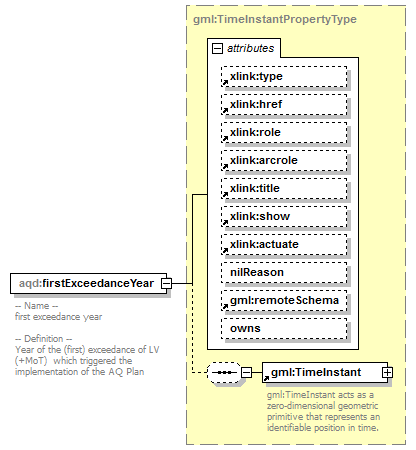

element AQD_PlanType/firstExceedanceYear

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimeInstantPropertyType
properties	isRef  0 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- first exceedance year -- Definition -- Year of the (first) exceedance of LV (+MoT)  which triggered the implementation of the AQ Plan

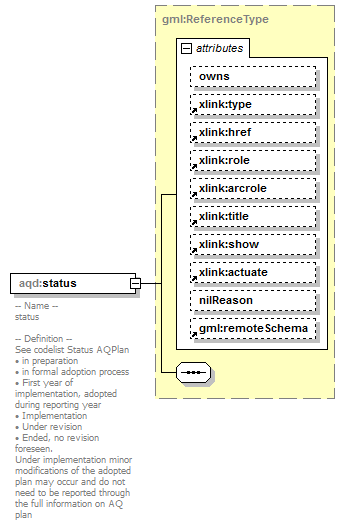

element AQD_PlanType/status

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- status -- Definition -- See codelist Status AQPlan • in preparation • in formal adoption process • First year of implementation, adopted during reporting year • Implementation • Under revision • Ended, no revision foreseen. Under implementation minor modifications of the adopted plan may occur and do not need to be reported through the full information on AQ plan

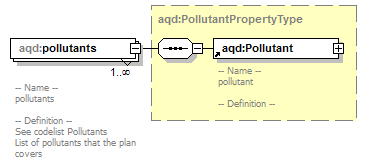

element AQD_PlanType/pollutants

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:PollutantPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	aqd:Pollutant
annotation	documentation -- Name -- pollutants -- Definition -- See codelist Pollutants List of pollutants that the plan covers

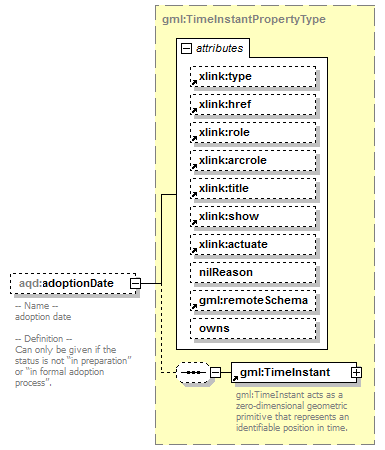

element AQD_PlanType/adoptionDate

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimeInstantPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- adoption date -- Definition -- Can only be given if the status is not “in preparation” or “in formal adoption process”.

element AQD_PlanType/timeTable

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- time table -- Definition -- Short description of timetable for the implementation of the measures comprises in the AQ Plan.

element AQD_PlanType/referenceAQPlan

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	anyURI
properties	isRef  0 content  simple
annotation	documentation -- Name -- reference Air quality directive plan -- Definition -- Website where the last version of full AQ plan can be accessed, and where information on the implementation of the AQ plan can be found.

element AQD_PlanType/referenceImplementation

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	anyURI
properties	isRef  0 content  simple
annotation	documentation -- Name -- reference implementation -- Definition -- Website where information about the implementation of the AQ Plan can be found

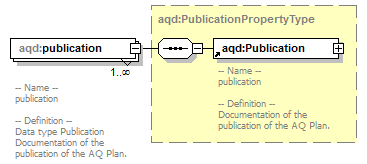

element AQD_PlanType/publication

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:PublicationPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	aqd:Publication
annotation	documentation -- Name -- publication -- Definition -- Data type Publication Documentation of the publication of the AQ Plan.

element AQD_PlanType/comment

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- comment -- Definition -- Further clarification if necessary. If the plan is replacing some existing plans changing code due to change in governance, scope, spatial extent etc., their codes should be identified here

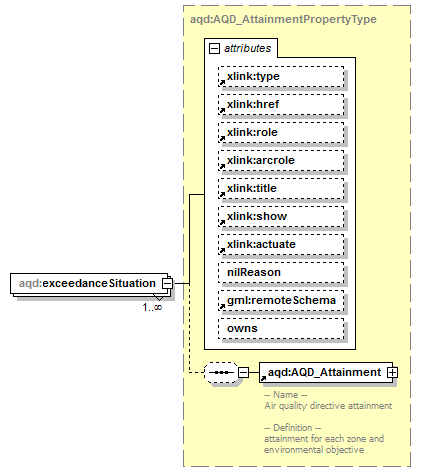

element AQD_PlanType/exceedanceSituation

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_AttainmentPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	aqd:AQD_Attainment
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
