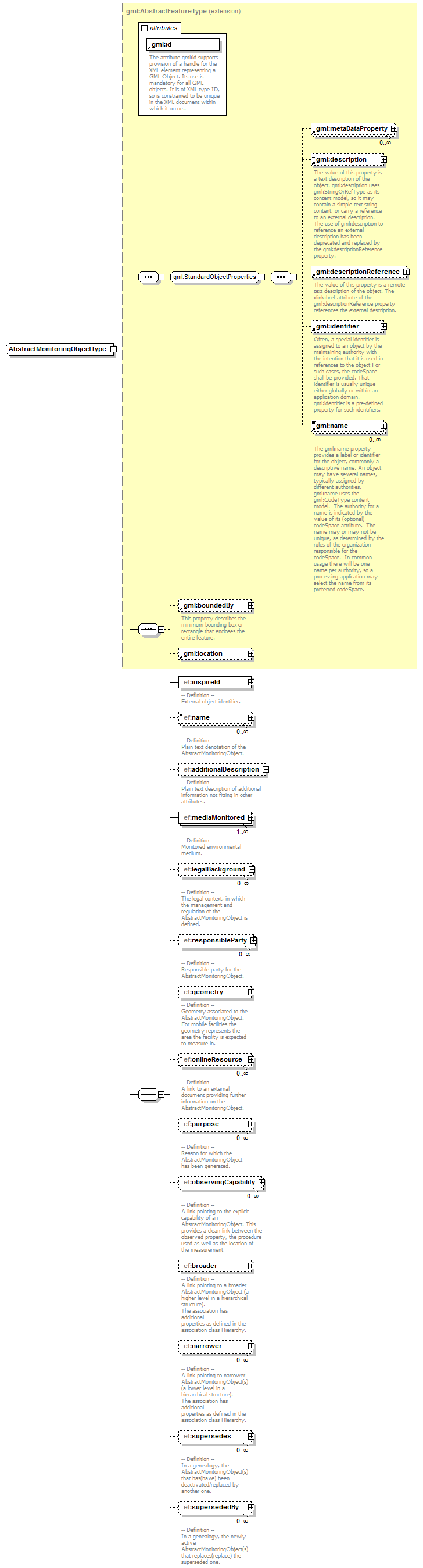

complexType AbstractMonitoringObjectType

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType abstract  true
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:inspireId ef:name ef:additionalDescription ef:mediaMonitored ef:legalBackground ef:responsibleParty ef:geometry ef:onlineResource ef:purpose ef:observingCapability ef:broader ef:narrower ef:supersedes ef:supersededBy
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

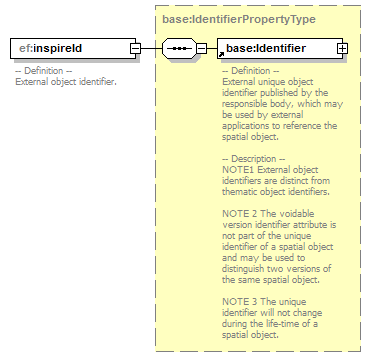

element AbstractMonitoringObjectType/inspireId

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Definition -- External object identifier.

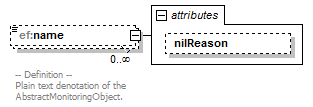

element AbstractMonitoringObjectType/name

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Plain text denotation of the AbstractMonitoringObject.

attribute AbstractMonitoringObjectType/name/@nilReason

type	gml:NilReasonType
properties	isRef  0

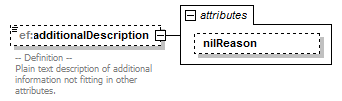

element AbstractMonitoringObjectType/additionalDescription

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Plain text description of additional information not fitting in other attributes.

attribute AbstractMonitoringObjectType/additionalDescription/@nilReason

type	gml:NilReasonType
properties	isRef  0

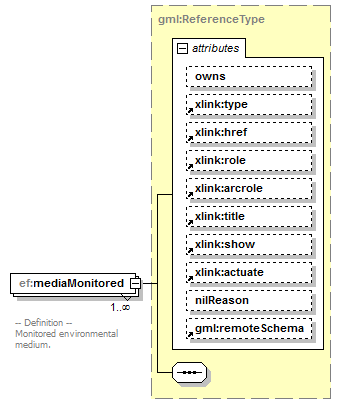

element AbstractMonitoringObjectType/mediaMonitored

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Monitored environmental medium.

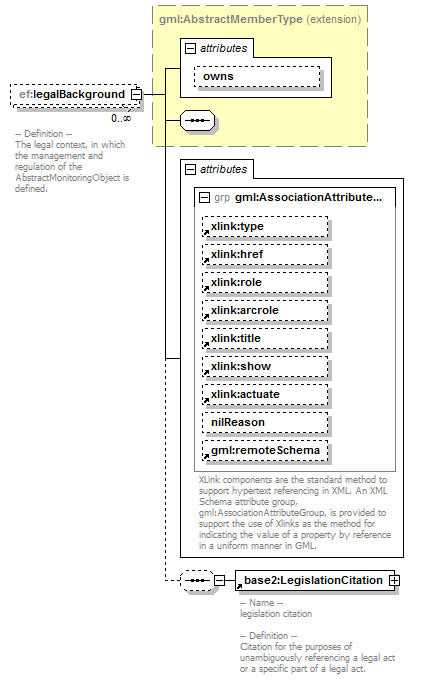

element AbstractMonitoringObjectType/legalBackground

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractMemberType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	base2:LegislationCitation
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- The legal context, in which the management and regulation of the AbstractMonitoringObject is defined.

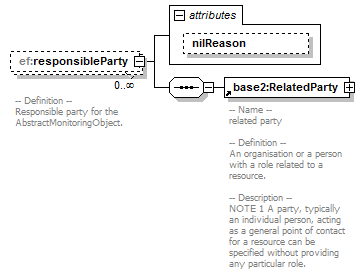

element AbstractMonitoringObjectType/responsibleParty

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	base2:RelatedParty
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Responsible party for the AbstractMonitoringObject.

attribute AbstractMonitoringObjectType/responsibleParty/@nilReason

type	gml:NilReasonType
properties	isRef  0

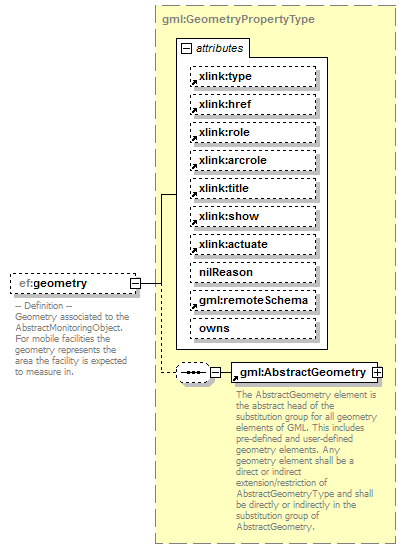

element AbstractMonitoringObjectType/geometry

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:GeometryPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:AbstractGeometry
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- Geometry associated to the AbstractMonitoringObject. For mobile facilities the geometry represents the area the facility is expected to measure in.

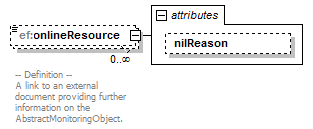

element AbstractMonitoringObjectType/onlineResource

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of anyURI
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- A link to an external document providing further information on the AbstractMonitoringObject.

attribute AbstractMonitoringObjectType/onlineResource/@nilReason

type	gml:NilReasonType
properties	isRef  0

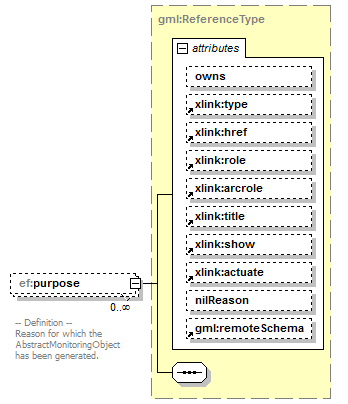

element AbstractMonitoringObjectType/purpose

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- Reason for which the AbstractMonitoringObject has been generated.

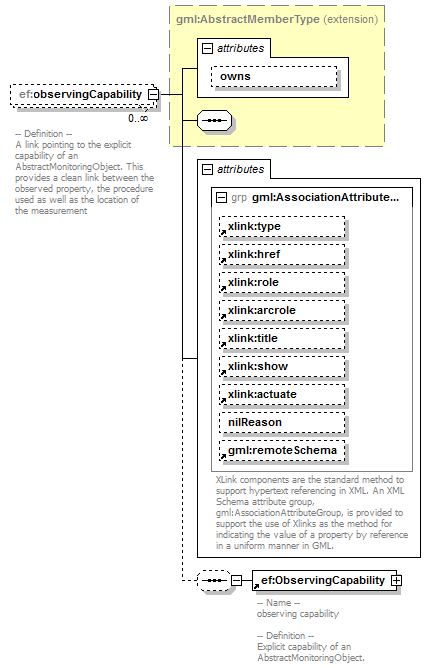

element AbstractMonitoringObjectType/observingCapability

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractMemberType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	ef:ObservingCapability
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition -- A link pointing to the explicit capability of an AbstractMonitoringObject. This provides a clean link between the observed property, the procedure used as well as the location of the measurement

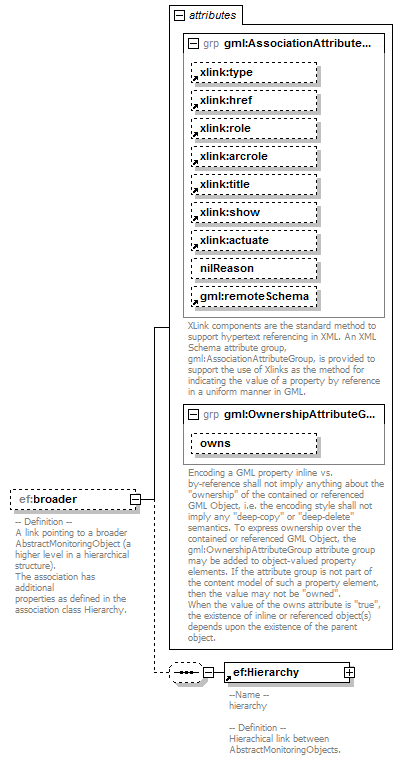

element AbstractMonitoringObjectType/broader

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
children	ef:Hierarchy
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- A link pointing to a broader AbstractMonitoringObject (a higher level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:narrower</reversePropertyName>

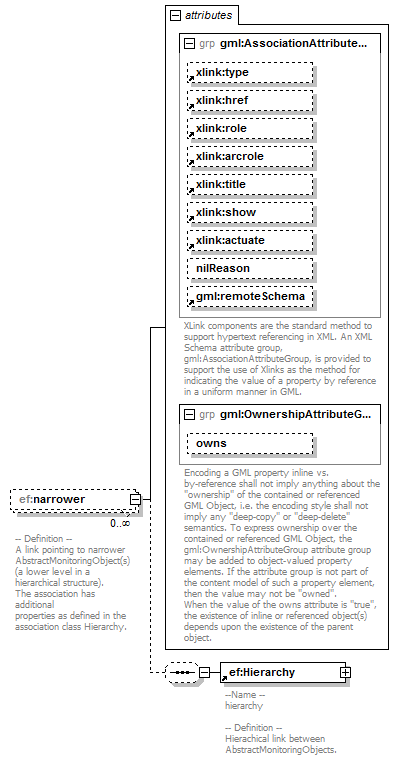

element AbstractMonitoringObjectType/narrower

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	ef:Hierarchy
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- A link pointing to narrower AbstractMonitoringObject(s) (a lower level in a hierarchical structure). The association has additional properties as defined in the association class Hierarchy. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:broader</reversePropertyName>

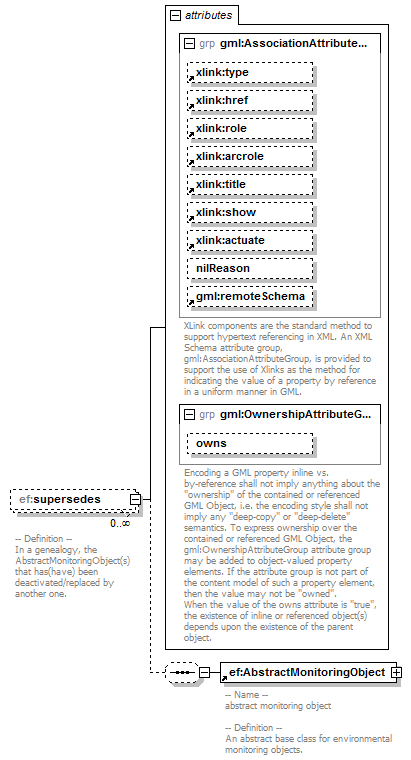

element AbstractMonitoringObjectType/supersedes

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	ef:AbstractMonitoringObject
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- In a genealogy, the AbstractMonitoringObject(s) that has(have) been deactivated/replaced by another one. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:supersededBy</reversePropertyName>

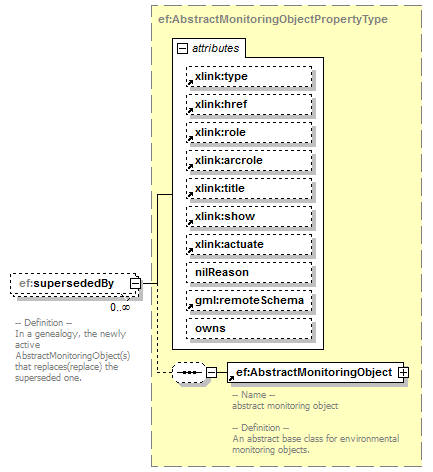

element AbstractMonitoringObjectType/supersededBy

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	ef:AbstractMonitoringObjectPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	ef:AbstractMonitoringObject
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- In a genealogy, the newly active AbstractMonitoringObject(s) that replaces(replace) the superseded one. appinfo <reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:supersedes</reversePropertyName>
