AirQualityReporting - AddressComponentType

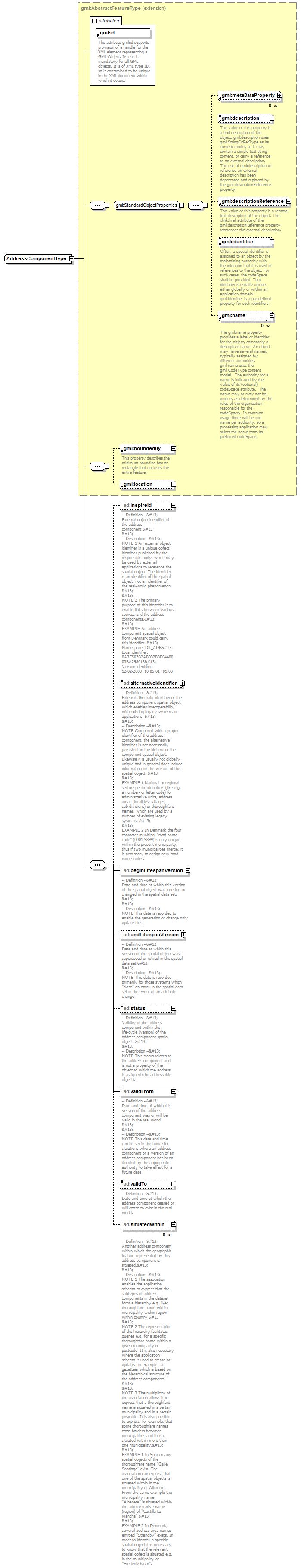

complexType AddressComponentType

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

properties

base	gml:AbstractFeatureType
abstract	true

children

gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ad:inspireId ad:alternativeIdentifier ad:beginLifespanVersion ad:endLifespanVersion ad:status ad:validFrom ad:validTo ad:situatedWithin

attributes

Name

Type

Use

Default

Fixed

annotation

required

documentation

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

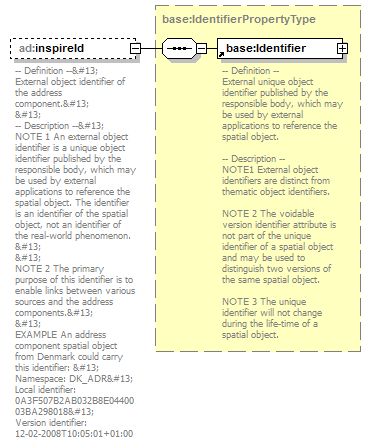

element AddressComponentType/inspireId

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

base:IdentifierPropertyType

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

base:Identifier

annotation

documentation

-- Definition --
External object identifier of the address component.

-- Description --
NOTE 1 An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon.

NOTE 2 The primary purpose of this identifier is to enable links between various sources and the address components.

EXAMPLE An address component spatial object from Denmark could carry this identifier:
Namespace: DK_ADR
Local identifier: 0A3F507B2AB032B8E0440003BA298018
Version identifier: 12-02-2008T10:05:01+01:00

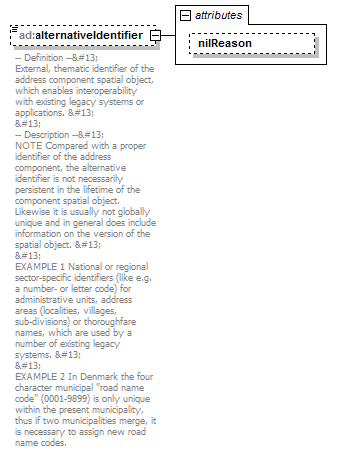

element AddressComponentType/alternativeIdentifier

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

extension of string

properties

isRef	0
minOcc	0
maxOcc	1
content	complex
nillable	true

attributes

Name	Type	Use	Default	Fixed	annotation
nilReason	gml:NilReasonType

annotation

documentation

-- Definition --
External, thematic identifier of the address component spatial object, which enables interoperability with existing legacy systems or applications.

-- Description --
NOTE Compared with a proper identifier of the address component, the alternative identifier is not necessarily persistent in the lifetime of the component spatial object. Likewise it is usually not globally unique and in general does include information on the version of the spatial object.

EXAMPLE 1 National or regional sector-specific identifiers (like e.g. a number- or letter code) for administrative units, address areas (localities, villages, sub-divisions) or thoroughfare names, which are used by a number of existing legacy systems.

EXAMPLE 2 In Denmark the four character municipal "road name code" (0001-9899) is only unique within the present municipality, thus if two municipalities merge, it is necessary to assign new road name codes.

attribute AddressComponentType/alternativeIdentifier/@nilReason

type

gml:NilReasonType

properties

isRef

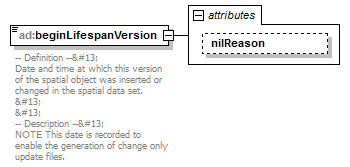

element AddressComponentType/beginLifespanVersion

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

extension of dateTime

properties

isRef	0
content	complex
nillable	true

attributes

Name	Type	Use	Default	Fixed	annotation
nilReason	gml:NilReasonType

annotation

documentation

-- Definition --
Date and time at which this version of the spatial object was inserted or changed in the spatial data set.

-- Description --
NOTE This date is recorded to enable the generation of change only update files.

attribute AddressComponentType/beginLifespanVersion/@nilReason

type

gml:NilReasonType

properties

isRef

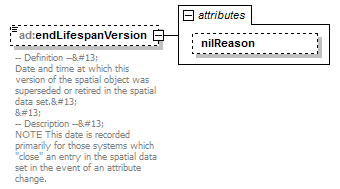

element AddressComponentType/endLifespanVersion

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

extension of dateTime

properties

isRef	0
minOcc	0
maxOcc	1
content	complex
nillable	true

attributes

Name	Type	Use	Default	Fixed	annotation
nilReason	gml:NilReasonType

annotation

documentation

-- Definition --
Date and time at which this version of the spatial object was superseded or retired in the spatial data set.

-- Description --
NOTE This date is recorded primarily for those systems which "close" an entry in the spatial data set in the event of an attribute change.

attribute AddressComponentType/endLifespanVersion/@nilReason

type

gml:NilReasonType

properties

isRef

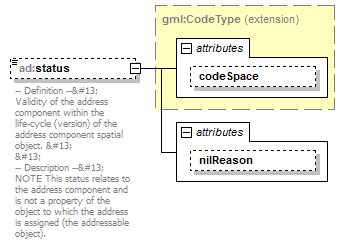

element AddressComponentType/status

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

extension of gml:CodeType

properties

isRef	0
minOcc	0
maxOcc	1
content	complex
nillable	true

attributes

Name	Type	Use	Default	Fixed	annotation
codeSpace	anyURI
nilReason	gml:NilReasonType

annotation

documentation

-- Definition --
Validity of the address component within the life-cycle (version) of the address component spatial object.

-- Description --
NOTE This status relates to the address component and is not a property of the object to which the address is assigned (the addressable object).

attribute AddressComponentType/status/@nilReason

type

gml:NilReasonType

properties

isRef

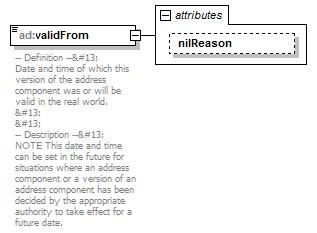

element AddressComponentType/validFrom

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

extension of dateTime

properties

isRef	0
content	complex
nillable	true

attributes

Name	Type	Use	Default	Fixed	annotation
nilReason	gml:NilReasonType

annotation

documentation

-- Definition --
Date and time of which this version of the address component was or will be valid in the real world.

-- Description --
NOTE This date and time can be set in the future for situations where an address component or a version of an address component has been decided by the appropriate authority to take effect for a future date.

attribute AddressComponentType/validFrom/@nilReason

type

gml:NilReasonType

properties

isRef

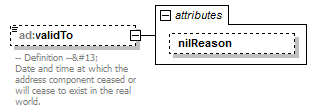

element AddressComponentType/validTo

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

extension of dateTime

properties

isRef	0
minOcc	0
maxOcc	1
content	complex
nillable	true

attributes

Name	Type	Use	Default	Fixed	annotation
nilReason	gml:NilReasonType

annotation

documentation

-- Definition --
Date and time at which the address component ceased or will cease to exist in the real world.

attribute AddressComponentType/validTo/@nilReason

type

gml:NilReasonType

properties

isRef

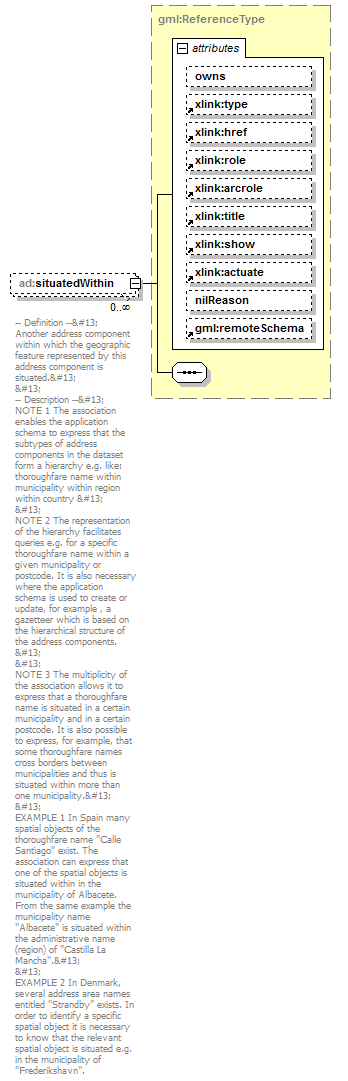

element AddressComponentType/situatedWithin

diagram

namespace

urn:x-inspire:specification:gmlas:Addresses:3.0

type

gml:ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex
nillable	true

attributes

Name

Type

Use

Default

Fixed

annotation

owns

boolean

false

simple

appinfo

deprecated

annotation

documentation

-- Definition --
Another address component within which the geographic feature represented by this address component is situated.

-- Description --
NOTE 1 The association enables the application schema to express that the subtypes of address components in the dataset form a hierarchy e.g. like: thoroughfare name within municipality within region within country

NOTE 2 The representation of the hierarchy facilitates queries e.g. for a specific thoroughfare name within a given municipality or postcode. It is also necessary where the application schema is used to create or update, for example , a gazetteer which is based on the hierarchical structure of the address components.

NOTE 3 The multiplicity of the association allows it to express that a thoroughfare name is situated in a certain municipality and in a certain postcode. It is also possible to express, for example, that some thoroughfare names cross borders between municipalities and thus is situated within more than one municipality.

EXAMPLE 1 In Spain many spatial objects of the thoroughfare name "Calle Santiago" exist. The association can express that one of the spatial objects is situated within in the municipality of Albacete. From the same example the municipality name "Albacete" is situated within the administrative name (region) of "Castilla La Mancha".

EXAMPLE 2 In Denmark, several address area names entitled "Strandby" exists. In order to identify a specific spatial object it is necessary to know that the relevant spatial object is situated e.g. in the municipality of "Frederikshavn".

appinfo

<targetElement xmlns="http://www.opengis.net/gml/3.2">ad:AddressComponent</targetElement>
