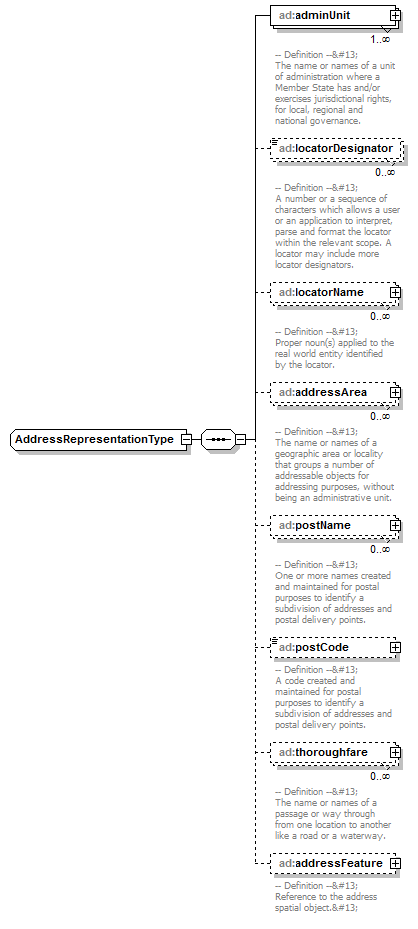

complexType AddressRepresentationType

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
children	ad:adminUnit ad:locatorDesignator ad:locatorName ad:addressArea ad:postName ad:postCode ad:thoroughfare ad:addressFeature

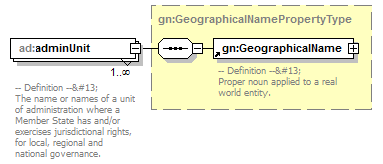

element AddressRepresentationType/adminUnit

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	gn:GeographicalNamePropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	gn:GeographicalName
annotation	documentation -- Definition --
 The name or names of a unit of administration where a Member State has and/or exercises jurisdictional rights, for local, regional and national governance.

element AddressRepresentationType/locatorDesignator

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	documentation -- Definition --
 A number or a sequence of characters which allows a user or an application to interpret, parse and format the locator within the relevant scope. A locator may include more locator designators.

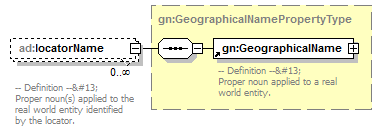

element AddressRepresentationType/locatorName

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	gn:GeographicalNamePropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gn:GeographicalName
annotation	documentation -- Definition --
 Proper noun(s) applied to the real world entity identified by the locator.

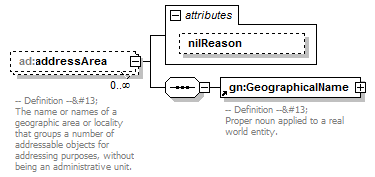

element AddressRepresentationType/addressArea

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	gn:GeographicalName
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The name or names of a geographic area or locality that groups a number of addressable objects for addressing purposes, without being an administrative unit.

attribute AddressRepresentationType/addressArea/@nilReason

type	gml:NilReasonType
properties	isRef  0

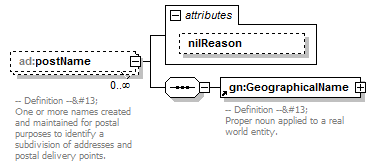

element AddressRepresentationType/postName

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	gn:GeographicalName
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 One or more names created and maintained for postal purposes to identify a subdivision of addresses and postal delivery points.

attribute AddressRepresentationType/postName/@nilReason

type	gml:NilReasonType
properties	isRef  0

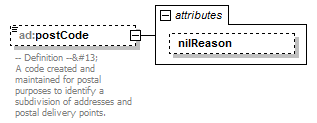

element AddressRepresentationType/postCode

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 A code created and maintained for postal purposes to identify a subdivision of addresses and postal delivery points.

attribute AddressRepresentationType/postCode/@nilReason

type	gml:NilReasonType
properties	isRef  0

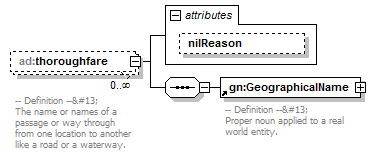

element AddressRepresentationType/thoroughfare

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
children	gn:GeographicalName
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 The name or names of a passage or way through from one location to another like a road or a waterway.

attribute AddressRepresentationType/thoroughfare/@nilReason

type	gml:NilReasonType
properties	isRef  0

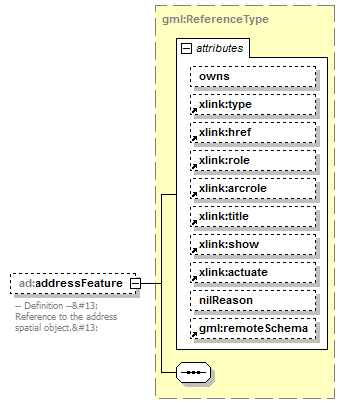

element AddressRepresentationType/addressFeature

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition --&#13; Reference to the address spatial object.&#13; appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">ad:Address</targetElement>
