complexType AdjustmentMethodType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:assessmentMethod aqd:adjustmentType aqd:adjustmentSource

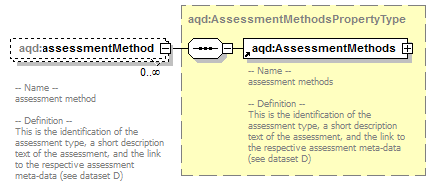

element AdjustmentMethodType/assessmentMethod

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AssessmentMethodsPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AssessmentMethods
annotation	documentation -- Name -- assessment method -- Definition -- This is the identification of the assessment type, a short description text of the assessment, and the link to the respective assessment meta-data (see dataset D)

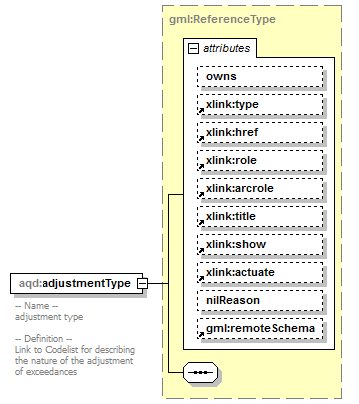

element AdjustmentMethodType/adjustmentType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- adjustment type -- Definition -- Link to Codelist for describing the nature of the adjustment of exceedances

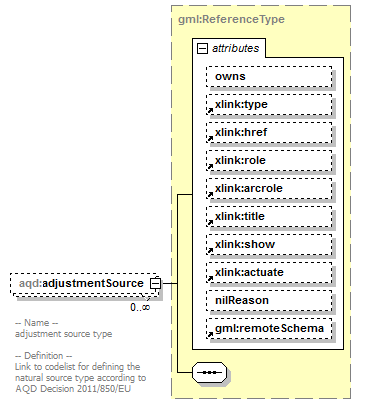

element AdjustmentMethodType/adjustmentSource

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- adjustment source type -- Definition -- Link to codelist for defining the natural source type according to AQD Decision 2011/850/EU
