complexType AnyDomainLinkType

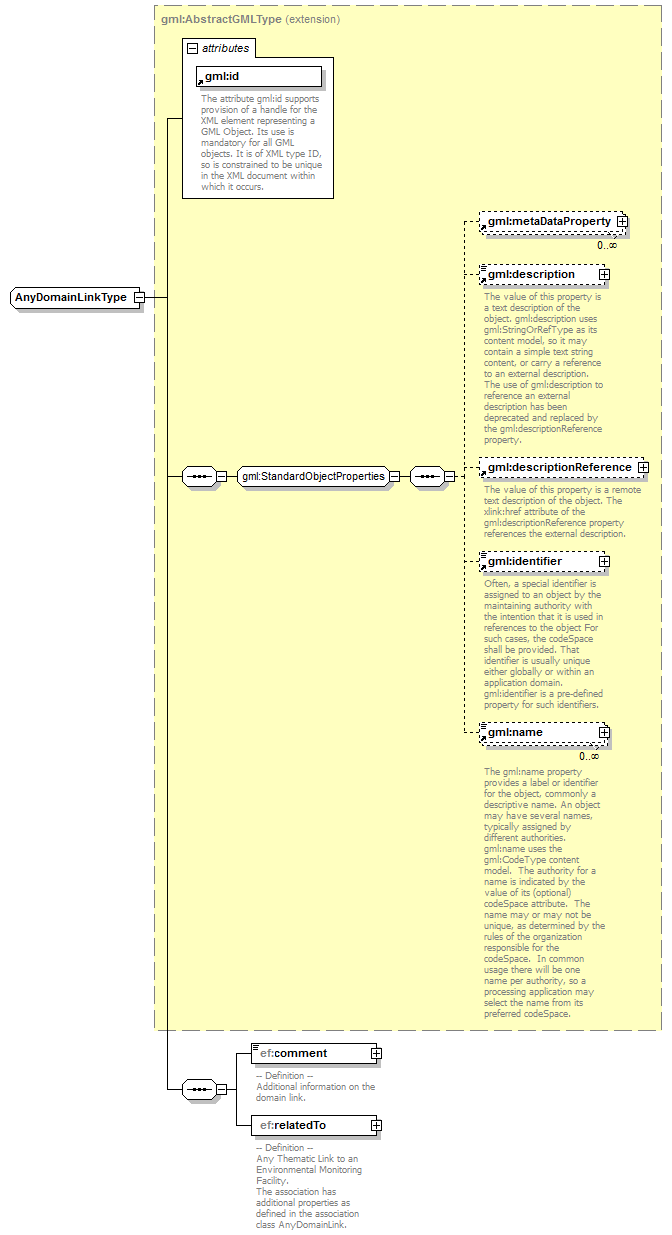

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of gml:AbstractGMLType
properties	base  gml:AbstractGMLType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name ef:comment ef:relatedTo
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element AnyDomainLinkType/comment

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
type	extension of string
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition -- Additional information on the domain link.

attribute AnyDomainLinkType/comment/@nilReason

type	gml:NilReasonType
properties	isRef  0

element AnyDomainLinkType/relatedTo

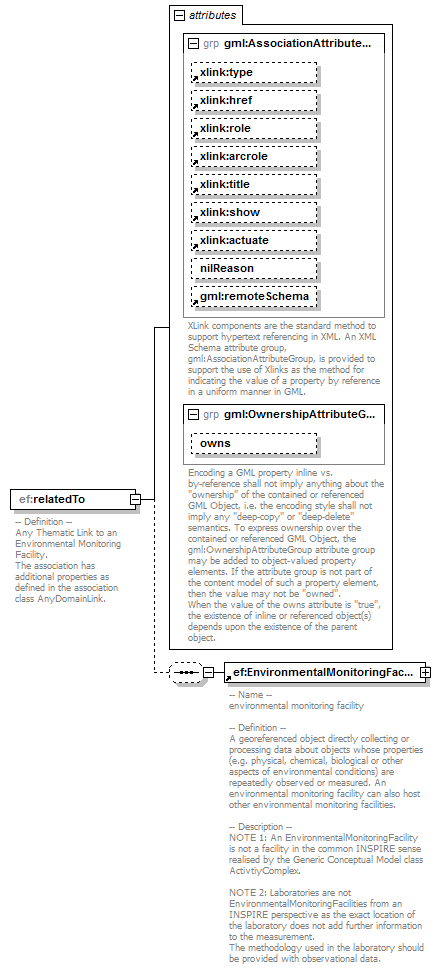

diagram
namespace	http://inspire.ec.europa.eu/schemas/ef/3.0
properties	isRef  0 content  complex nillable  true
children	ef:EnvironmentalMonitoringFacility
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition -- Any Thematic Link to an Environmental Monitoring Facility. The association has additional properties as defined in the association class AnyDomainLink.
