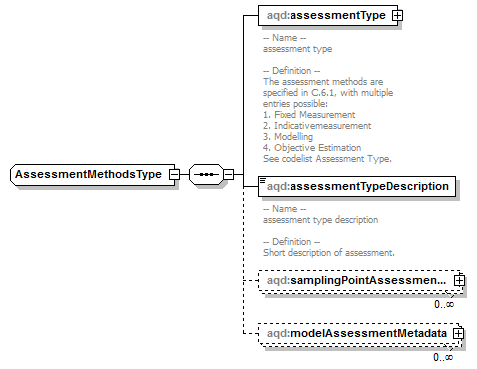

complexType AssessmentMethodsType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:assessmentType aqd:assessmentTypeDescription aqd:samplingPointAssessmentMetadata aqd:modelAssessmentMetadata

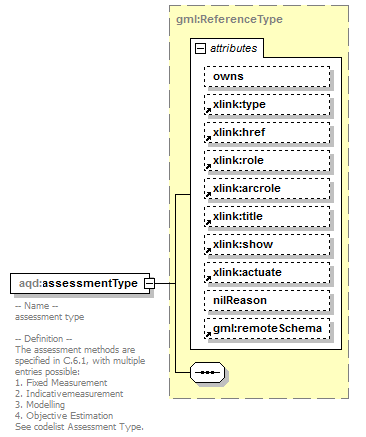

element AssessmentMethodsType/assessmentType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- assessment type -- Definition -- The assessment methods are specified in C.6.1, with multiple entries possible: 1. Fixed Measurement 2. Indicativemeasurement 3. Modelling 4. Objective Estimation See codelist Assessment Type.

element AssessmentMethodsType/assessmentTypeDescription

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- assessment type description -- Definition -- Short description of assessment.

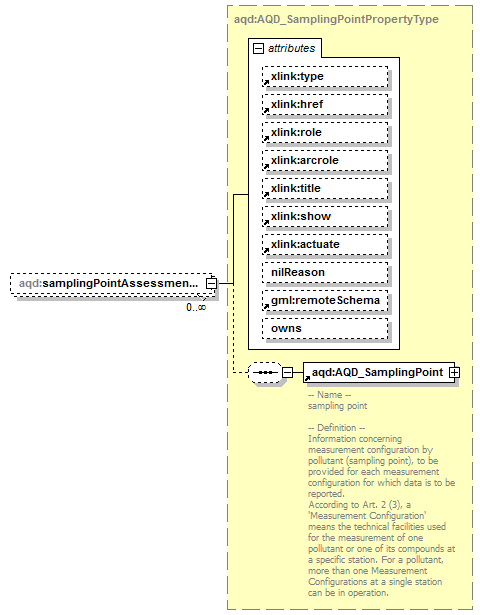

element AssessmentMethodsType/samplingPointAssessmentMetadata

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_SamplingPointPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AQD_SamplingPoint
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

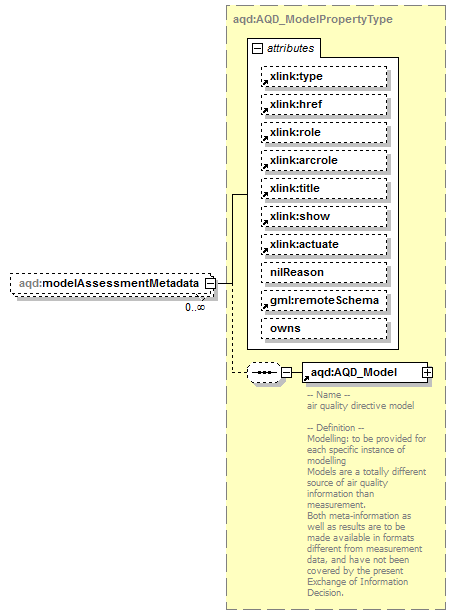

element AssessmentMethodsType/modelAssessmentMetadata

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_ModelPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AQD_Model
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
