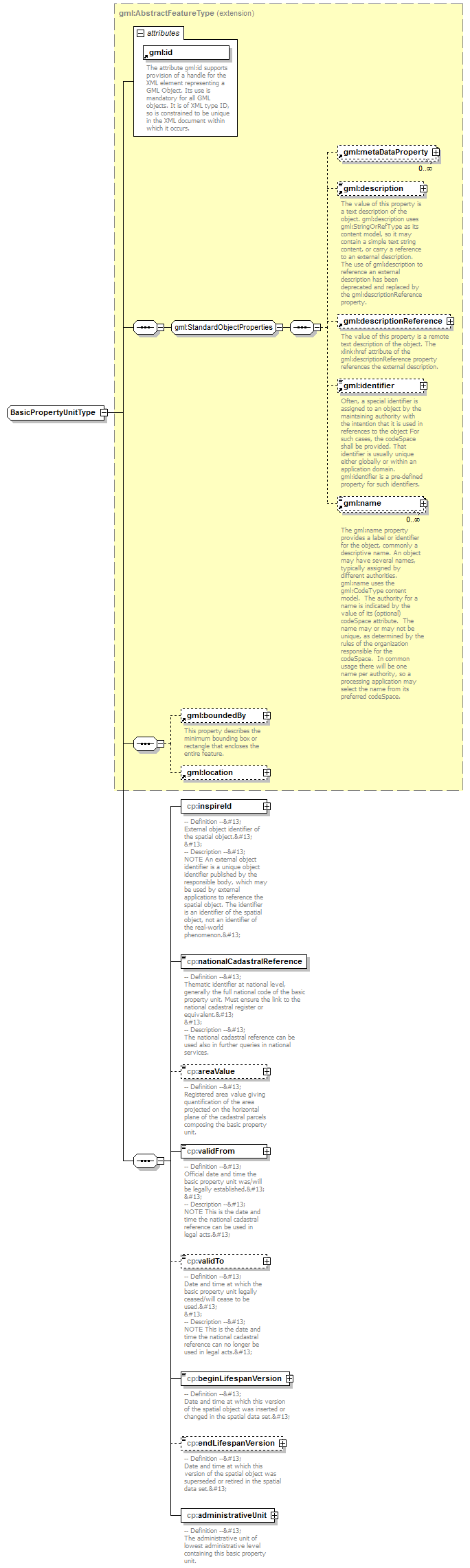

complexType BasicPropertyUnitType

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location cp:inspireId cp:nationalCadastralReference cp:areaValue cp:validFrom cp:validTo cp:beginLifespanVersion cp:endLifespanVersion cp:administrativeUnit
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

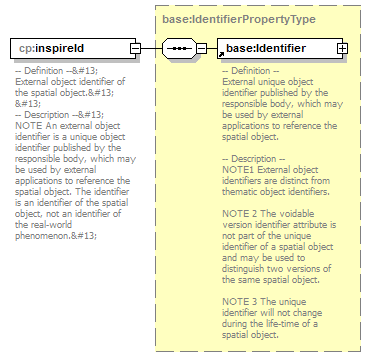

element BasicPropertyUnitType/inspireId

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	base:IdentifierPropertyType
properties	isRef  0 content  complex
children	base:Identifier
annotation	documentation -- Definition --
 External object identifier of the spatial object.

 -- Description --
 NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon.


element BasicPropertyUnitType/nationalCadastralReference

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Definition --
 Thematic identifier at national level, generally the full national code of the basic property unit. Must ensure the link to the national cadastral register or equivalent.

 -- Description --
 The national cadastral reference can be used also in further queries in national services.

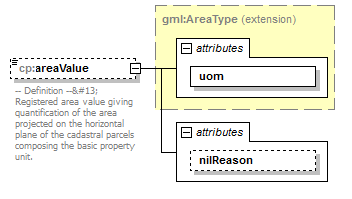

element BasicPropertyUnitType/areaValue

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	extension of gml:AreaType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required         nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Registered area value giving quantification of the area projected on the horizontal plane of the cadastral parcels composing the basic property unit.

attribute BasicPropertyUnitType/areaValue/@nilReason

type	gml:NilReasonType
properties	isRef  0

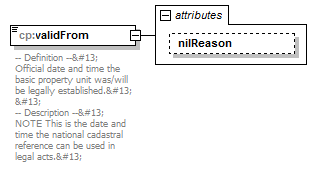

element BasicPropertyUnitType/validFrom

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Official date and time the basic property unit was/will be legally established.

 -- Description --
 NOTE This is the date and time the national cadastral reference can be used in legal acts.


attribute BasicPropertyUnitType/validFrom/@nilReason

type	gml:NilReasonType
properties	isRef  0

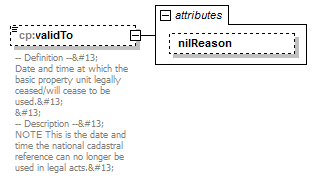

element BasicPropertyUnitType/validTo

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	extension of dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Date and time at which the basic property unit legally ceased/will cease to be used.

 -- Description --
 NOTE This is the date and time the national cadastral reference can no longer be used in legal acts.


attribute BasicPropertyUnitType/validTo/@nilReason

type	gml:NilReasonType
properties	isRef  0

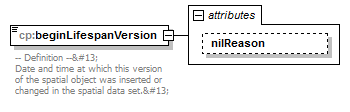

element BasicPropertyUnitType/beginLifespanVersion

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	extension of dateTime
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Date and time at which this version of the spatial object was inserted or changed in the spatial data set.


attribute BasicPropertyUnitType/beginLifespanVersion/@nilReason

type	gml:NilReasonType
properties	isRef  0

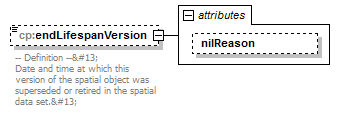

element BasicPropertyUnitType/endLifespanVersion

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	extension of dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Date and time at which this version of the spatial object was superseded or retired in the spatial data set.


attribute BasicPropertyUnitType/endLifespanVersion/@nilReason

type	gml:NilReasonType
properties	isRef  0

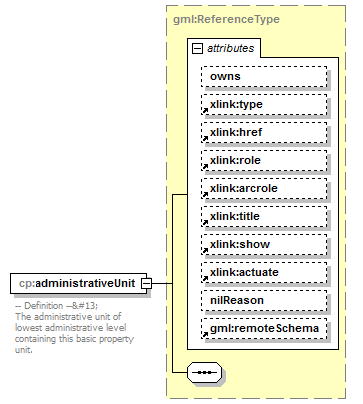

element BasicPropertyUnitType/administrativeUnit

diagram
namespace	urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type	gml:ReferenceType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition --&#13; The administrative unit of lowest administrative level containing this basic property unit. appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">au:AdministrativeUnit</targetElement>
