element Bezier

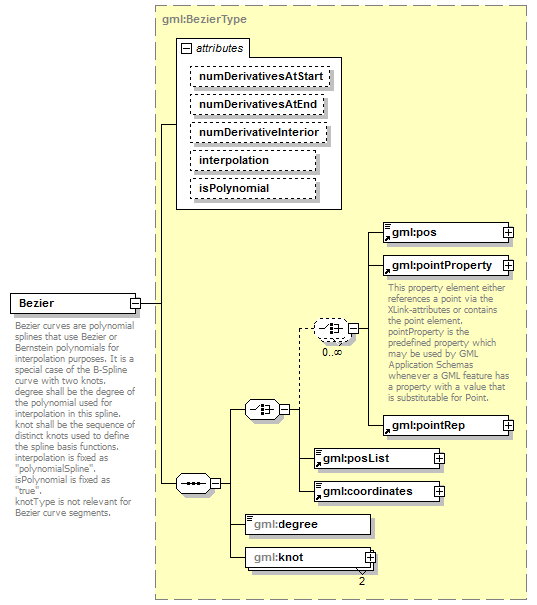

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:BezierType
properties	content  complex substGrp  gml:BSpline
children	gml:pos gml:pointProperty gml:pointRep gml:posList gml:coordinates gml:degree gml:knot
attributes	Name   Type   Use   Default   Fixed   annotation numDerivativesAtStart integer    0      numDerivativesAtEnd integer    0      numDerivativeInterior integer    0      interpolation gml:CurveInterpolationType       polynomialSpline   isPolynomial boolean       true
annotation	documentation Bezier curves are polynomial splines that use Bezier or Bernstein polynomials for interpolation purposes. It is a special case of the B-Spline curve with two knots. degree shall be the degree of the polynomial used for interpolation in this spline. knot shall be the sequence of distinct knots used to define the spline basis functions. interpolation is fixed as "polynomialSpline". isPolynomial is fixed as "true". knotType is not relevant for Bezier curve segments.
