complexType BlockType

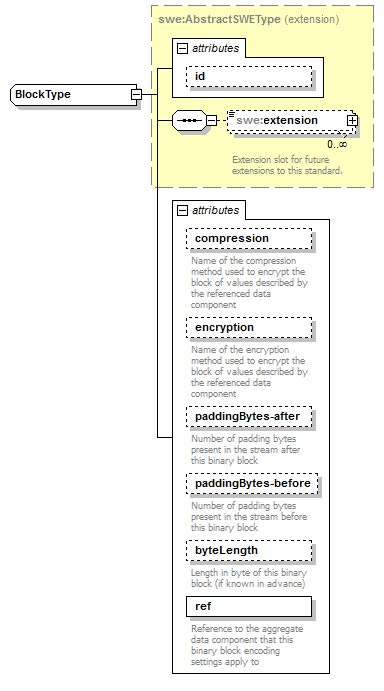

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractSWEType
properties	base  swe:AbstractSWEType
children	swe:extension
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         compression anyURI optional         documentation Name of the compression method used to encrypt the block of values described by the referenced data component encryption anyURI optional         documentation Name of the encryption method used to encrypt the block of values described by the referenced data component paddingBytes-after integer optional         documentation Number of padding bytes present in the stream after this binary block paddingBytes-before integer optional         documentation Number of padding bytes present in the stream before this binary block byteLength integer optional         documentation Length in byte of this binary block (if known in advance) ref string required         documentation Reference to the aggregate data component that this binary block encoding settings apply to

attribute BlockType/@compression

type	anyURI
properties	isRef  0 use  optional
annotation	documentation Name of the compression method used to encrypt the block of values described by the referenced data component

attribute BlockType/@encryption

type	anyURI
properties	isRef  0 use  optional
annotation	documentation Name of the encryption method used to encrypt the block of values described by the referenced data component

attribute BlockType/@paddingBytes-after

type	integer
properties	isRef  0 use  optional
annotation	documentation Number of padding bytes present in the stream after this binary block

attribute BlockType/@paddingBytes-before

type	integer
properties	isRef  0 use  optional
annotation	documentation Number of padding bytes present in the stream before this binary block

attribute BlockType/@byteLength

type	integer
properties	isRef  0 use  optional
annotation	documentation Length in byte of this binary block (if known in advance)

attribute BlockType/@ref

type	string
properties	isRef  0 use  required
annotation	documentation Reference to the aggregate data component that this binary block encoding settings apply to
