complexType CadastralBoundaryType

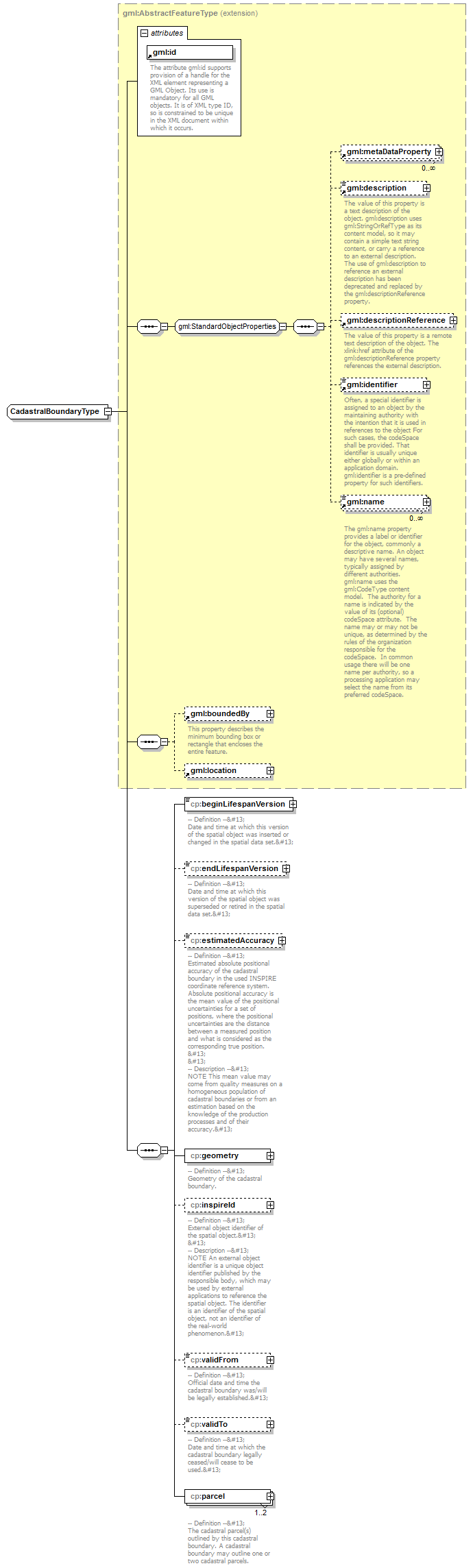

diagram AirQualityReporting_p1302.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type extension of gml:AbstractFeatureType
properties
base gml:AbstractFeatureType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location cp:beginLifespanVersion cp:endLifespanVersion cp:estimatedAccuracy cp:geometry cp:inspireId cp:validFrom cp:validTo cp:parcel
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element CadastralBoundaryType/beginLifespanVersion

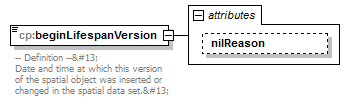

diagram AirQualityReporting_p1303.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type extension of dateTime
properties
isRef 0
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Date and time at which this version of the spatial object was inserted or changed in the spatial data set.

attribute CadastralBoundaryType/beginLifespanVersion/@nilReason
type gml:NilReasonType
properties
isRef 0

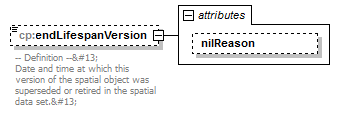

element CadastralBoundaryType/endLifespanVersion
diagram AirQualityReporting_p1304.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type extension of dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Date and time at which this version of the spatial object was superseded or retired in the spatial data set.

attribute CadastralBoundaryType/endLifespanVersion/@nilReason
type gml:NilReasonType
properties
isRef 0

element CadastralBoundaryType/estimatedAccuracy

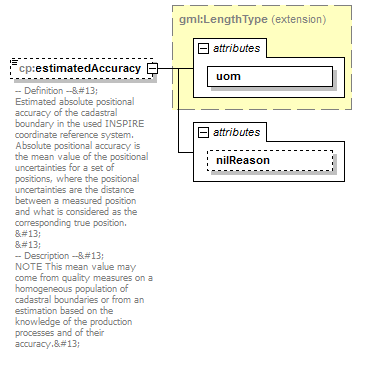

diagram AirQualityReporting_p1305.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type extension of gml:LengthType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
uomgml:UomIdentifierrequired
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Estimated absolute positional accuracy of the cadastral boundary in the used INSPIRE coordinate reference system. Absolute positional accuracy is the mean value of the positional uncertainties for a set of positions, where the positional uncertainties are the distance between a measured position and what is considered as the corresponding true position.

-- Description --
NOTE This mean value may come from quality measures on a homogeneous population of cadastral boundaries or from an estimation based on the knowledge of the production processes and of their accuracy.

attribute CadastralBoundaryType/estimatedAccuracy/@nilReason
type gml:NilReasonType
properties
isRef 0

element CadastralBoundaryType/geometry

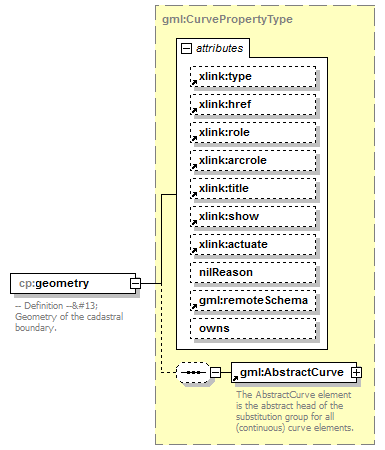

diagram AirQualityReporting_p1306.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type gml:CurvePropertyType
properties
isRef 0
content complex
children gml:AbstractCurve
attributes
Name  Type  Use  Default  Fixed  annotation
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
ownsboolean  false
annotation
documentation
-- Definition --
Geometry of the cadastral boundary.

element CadastralBoundaryType/inspireId

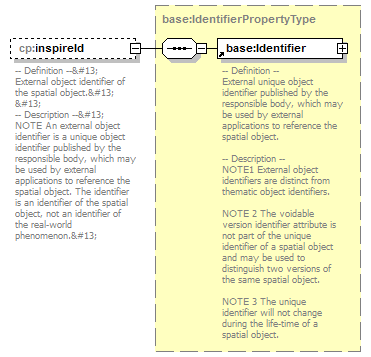

diagram AirQualityReporting_p1307.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type base:IdentifierPropertyType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children base:Identifier
annotation
documentation
-- Definition --
External object identifier of the spatial object.

-- Description --
NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon.

element CadastralBoundaryType/validFrom

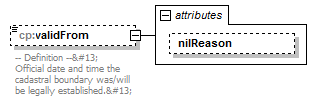

diagram AirQualityReporting_p1308.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type extension of dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Official date and time the cadastral boundary was/will be legally established.

attribute CadastralBoundaryType/validFrom/@nilReason
type gml:NilReasonType
properties
isRef 0

element CadastralBoundaryType/validTo

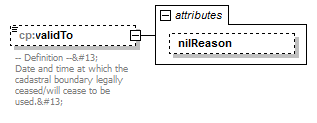

diagram AirQualityReporting_p1309.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type extension of dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Date and time at which the cadastral boundary legally ceased/will cease to be used.

attribute CadastralBoundaryType/validTo/@nilReason
type gml:NilReasonType
properties
isRef 0

element CadastralBoundaryType/parcel

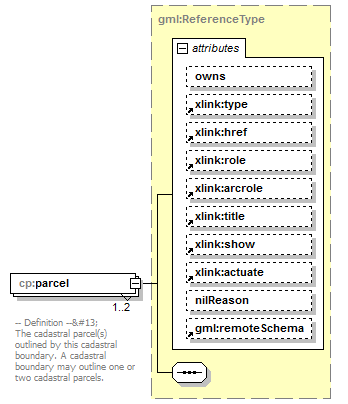

diagram AirQualityReporting_p1310.png
namespace urn:x-inspire:specification:gmlas:CadastralParcels:3.0
type gml:ReferenceType
properties
isRef 0
minOcc 1
maxOcc 2
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
-- Definition --
The cadastral parcel(s) outlined by this cadastral boundary. A cadastral boundary may outline one or two cadastral parcels.
appinfo
<targetElement xmlns="http://www.opengis.net/gml/3.2">cp:CadastralParcel</targetElement>
