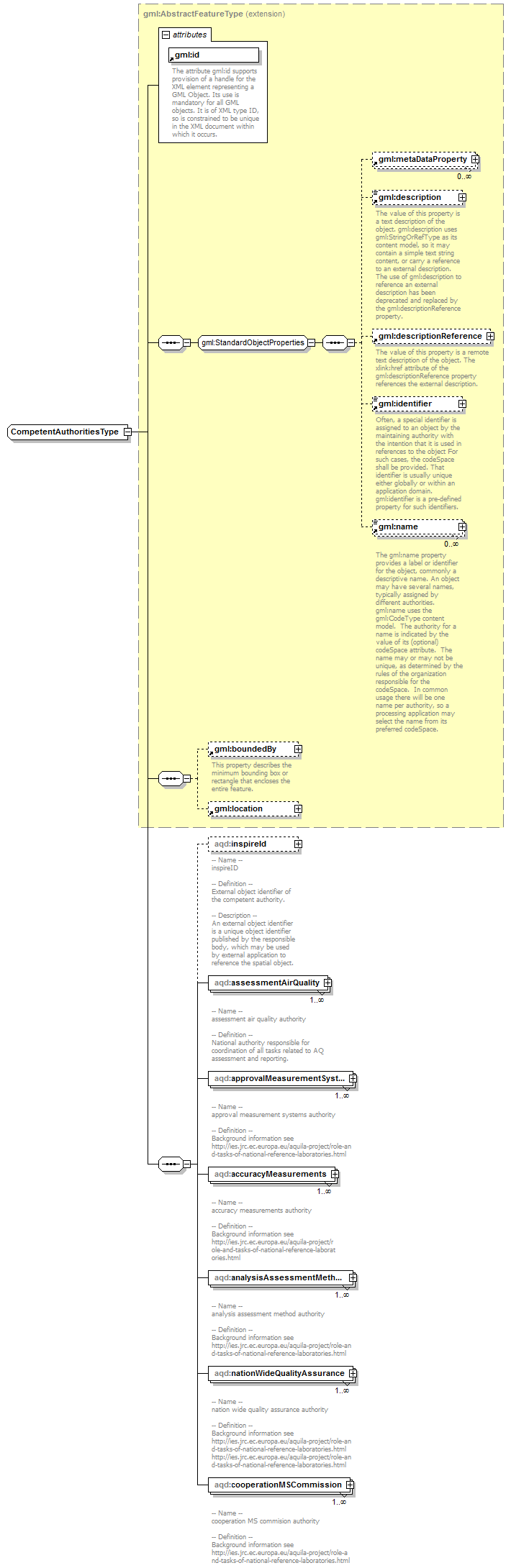

complexType CompetentAuthoritiesType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of gml:AbstractFeatureType
properties	base  gml:AbstractFeatureType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location aqd:inspireId aqd:assessmentAirQuality aqd:approvalMeasurementSystems aqd:accuracyMeasurements aqd:analysisAssessmentMethod aqd:nationWideQualityAssurance aqd:cooperationMSCommission
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

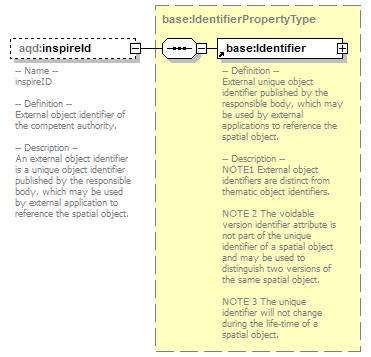

element CompetentAuthoritiesType/inspireId

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base:IdentifierPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	base:Identifier
annotation	documentation -- Name -- inspireID -- Definition -- External object identifier of the competent authority. -- Description -- An external object identifier is a unique object identifier published by the responsible body, which may be used by external application to reference the spatial object.

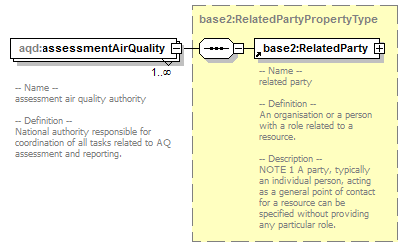

element CompetentAuthoritiesType/assessmentAirQuality

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base2:RelatedPartyPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	base2:RelatedParty
annotation	documentation -- Name -- assessment air quality authority -- Definition -- National authority responsible for coordination of all tasks related to AQ assessment and reporting.

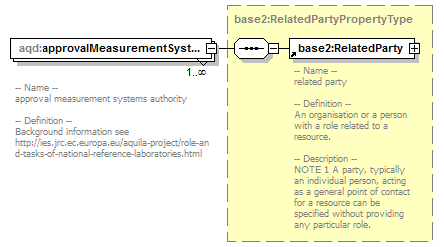

element CompetentAuthoritiesType/approvalMeasurementSystems

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base2:RelatedPartyPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	base2:RelatedParty
annotation	documentation -- Name -- approval measurement systems authority -- Definition -- Background information see http://ies.jrc.ec.europa.eu/aquila-project/role-and-tasks-of-national-reference-laboratories.html

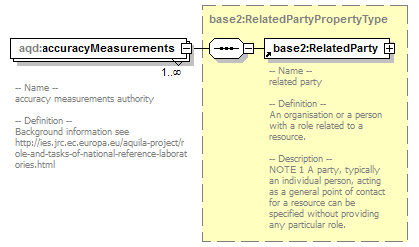

element CompetentAuthoritiesType/accuracyMeasurements

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base2:RelatedPartyPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	base2:RelatedParty
annotation	documentation -- Name -- accuracy measurements authority -- Definition -- Background information see http://ies.jrc.ec.europa.eu/aquila-project/role-and-tasks-of-national-reference-laboratories.html

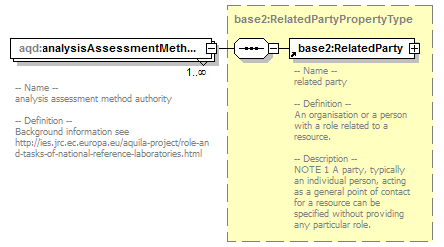

element CompetentAuthoritiesType/analysisAssessmentMethod

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base2:RelatedPartyPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	base2:RelatedParty
annotation	documentation -- Name -- analysis assessment method authority -- Definition -- Background information see http://ies.jrc.ec.europa.eu/aquila-project/role-and-tasks-of-national-reference-laboratories.html

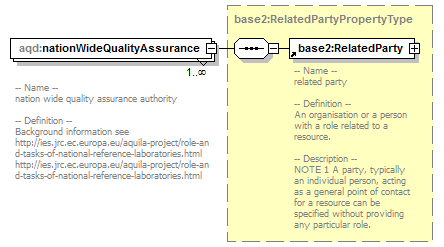

element CompetentAuthoritiesType/nationWideQualityAssurance

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base2:RelatedPartyPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	base2:RelatedParty
annotation	documentation -- Name -- nation wide quality assurance authority -- Definition -- Background information see http://ies.jrc.ec.europa.eu/aquila-project/role-and-tasks-of-national-reference-laboratories.html http://ies.jrc.ec.europa.eu/aquila-project/role-and-tasks-of-national-reference-laboratories.html

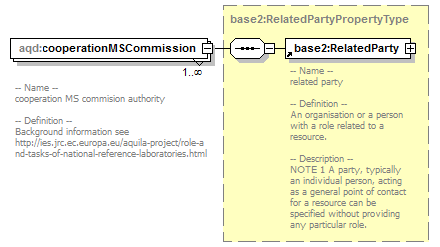

element CompetentAuthoritiesType/cooperationMSCommission

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	base2:RelatedPartyPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	base2:RelatedParty
annotation	documentation -- Name -- cooperation MS commision authority -- Definition -- Background information see http://ies.jrc.ec.europa.eu/aquila-project/role-and-tasks-of-national-reference-laboratories.html
