complexType CondominiumType

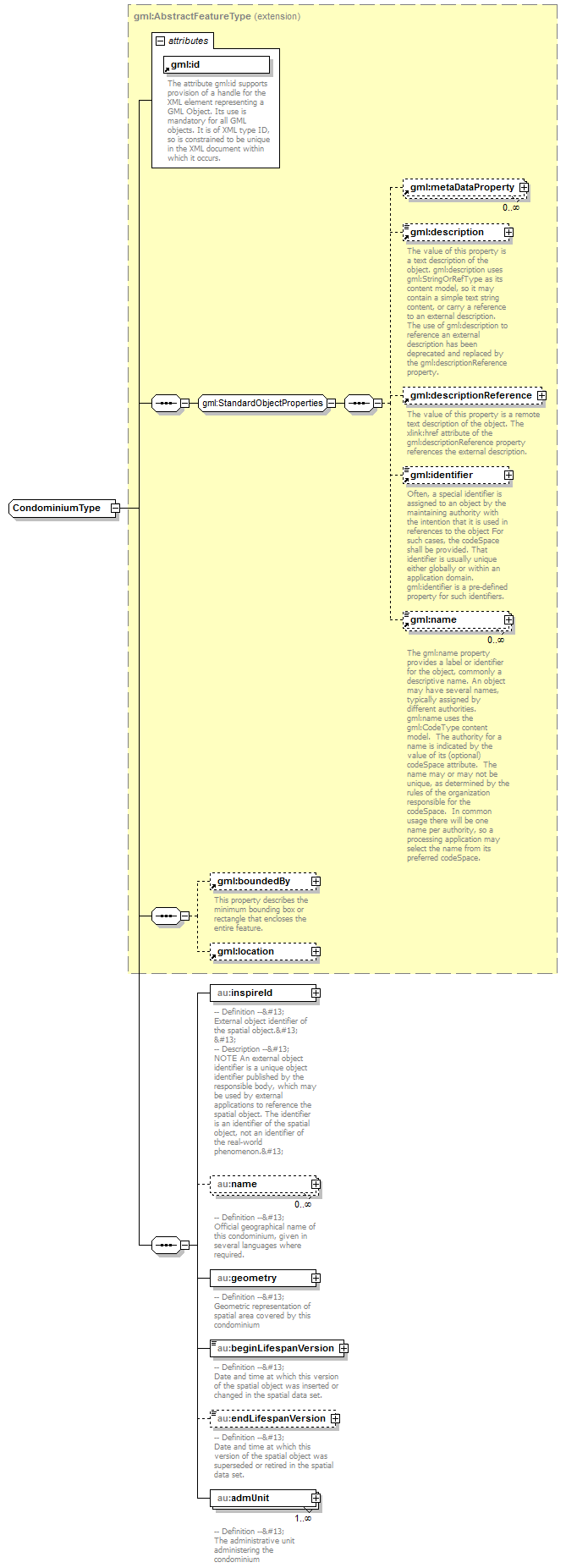

diagram AirQualityReporting_p626.png
namespace urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type extension of gml:AbstractFeatureType
properties
base gml:AbstractFeatureType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location au:inspireId au:name au:geometry au:beginLifespanVersion au:endLifespanVersion au:admUnit
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element CondominiumType/inspireId

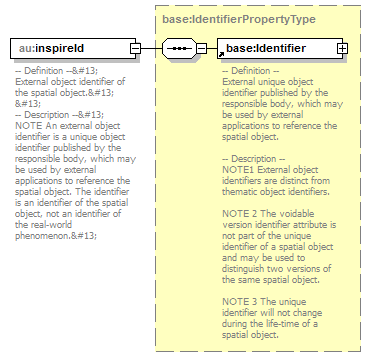

diagram AirQualityReporting_p627.png
namespace urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type base:IdentifierPropertyType
properties
isRef 0
content complex
children base:Identifier
annotation
documentation
-- Definition --
External object identifier of the spatial object.

-- Description --
NOTE An external object identifier is a unique object identifier published by the responsible body, which may be used by external applications to reference the spatial object. The identifier is an identifier of the spatial object, not an identifier of the real-world phenomenon.

element CondominiumType/name

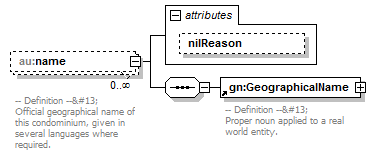

diagram AirQualityReporting_p628.png
namespace urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
nillable true
children gn:GeographicalName
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Official geographical name of this condominium, given in several languages where required.

attribute CondominiumType/name/@nilReason
type gml:NilReasonType
properties
isRef 0

element CondominiumType/geometry

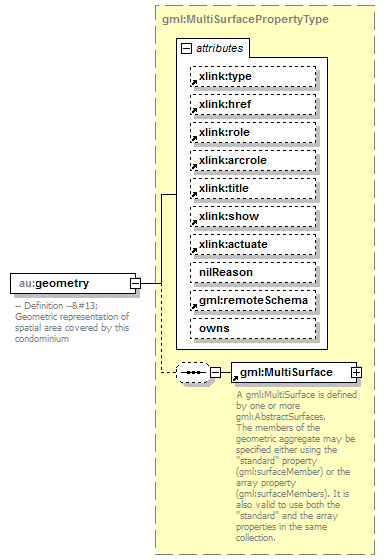

diagram AirQualityReporting_p629.png
namespace urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type gml:MultiSurfacePropertyType
properties
isRef 0
content complex
children gml:MultiSurface
attributes
Name  Type  Use  Default  Fixed  annotation
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
ownsboolean  false
annotation
documentation
-- Definition --
Geometric representation of spatial area covered by this condominium

element CondominiumType/beginLifespanVersion

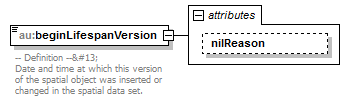

diagram AirQualityReporting_p630.png
namespace urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type extension of dateTime
properties
isRef 0
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Date and time at which this version of the spatial object was inserted or changed in the spatial data set.

attribute CondominiumType/beginLifespanVersion/@nilReason
type gml:NilReasonType
properties
isRef 0

element CondominiumType/endLifespanVersion

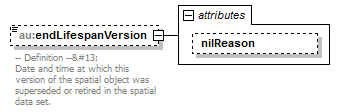

diagram AirQualityReporting_p631.png
namespace urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type extension of dateTime
properties
isRef 0
minOcc 0
maxOcc 1
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Date and time at which this version of the spatial object was superseded or retired in the spatial data set.

attribute CondominiumType/endLifespanVersion/@nilReason
type gml:NilReasonType
properties
isRef 0

element CondominiumType/admUnit

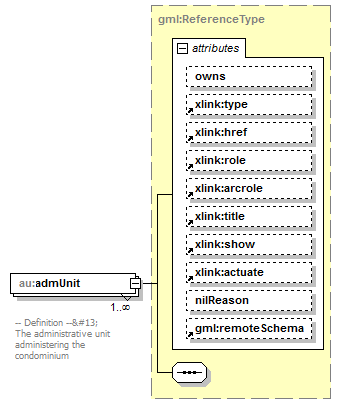

diagram AirQualityReporting_p632.png
namespace urn:x-inspire:specification:gmlas:AdministrativeUnits:3.0
type gml:ReferenceType
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
-- Definition --
The administrative unit administering the condominium
appinfo
<targetElement xmlns="http://www.opengis.net/gml/3.2">au:AdministrativeUnit</targetElement>
<reversePropertyName xmlns="http://www.opengis.net/gml/3.2">au:condominium</reversePropertyName>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
