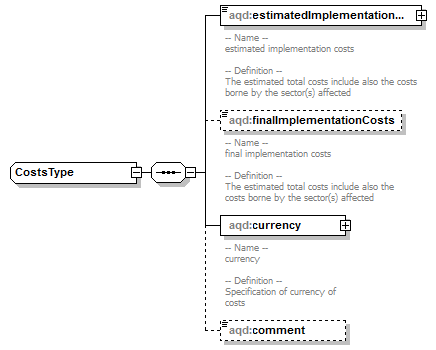

complexType CostsType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:estimatedImplementationCosts aqd:finalImplementationCosts aqd:currency aqd:comment

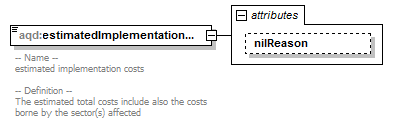

element CostsType/estimatedImplementationCosts

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	extension of integer
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- estimated implementation costs -- Definition -- The estimated total costs include also the costs borne by the sector(s) affected

attribute CostsType/estimatedImplementationCosts/@nilReason

type	gml:NilReasonType
properties	isRef  0

element CostsType/finalImplementationCosts

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- final implementation costs -- Definition -- The estimated total costs include also the costs borne by the sector(s) affected

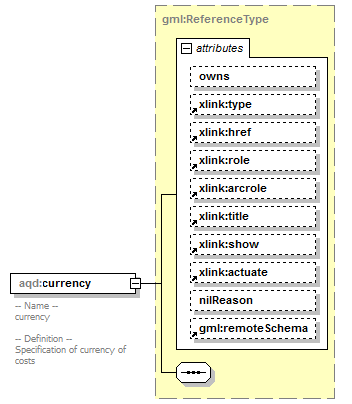

element CostsType/currency

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- currency -- Definition -- Specification of currency of costs

element CostsType/comment

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
