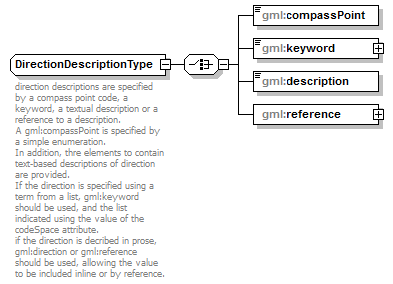

complexType DirectionDescriptionType

diagram
namespace	http://www.opengis.net/gml/3.2
children	gml:compassPoint gml:keyword gml:description gml:reference
annotation	documentation direction descriptions are specified by a compass point code, a keyword, a textual description or a reference to a description. A gml:compassPoint is specified by a simple enumeration.  In addition, thre elements to contain text-based descriptions of direction are provided.  If the direction is specified using a term from a list, gml:keyword should be used, and the list indicated using the value of the codeSpace attribute. if the direction is decribed in prose, gml:direction or gml:reference should be used, allowing the value to be included inline or by reference.

element DirectionDescriptionType/compassPoint

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:CompassPointEnumeration
properties	isRef  0 content  simple

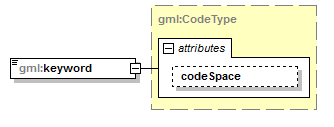

element DirectionDescriptionType/keyword

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:CodeType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation codeSpace anyURI

element DirectionDescriptionType/description

diagram
namespace	http://www.opengis.net/gml/3.2
type	string
properties	isRef  0 content  simple

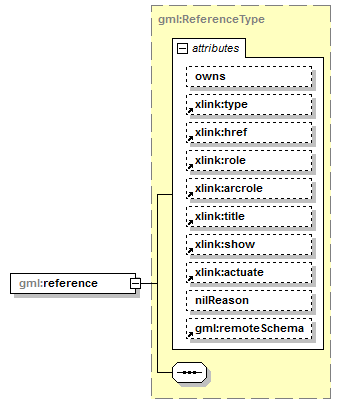

element DirectionDescriptionType/reference

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:ReferenceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
