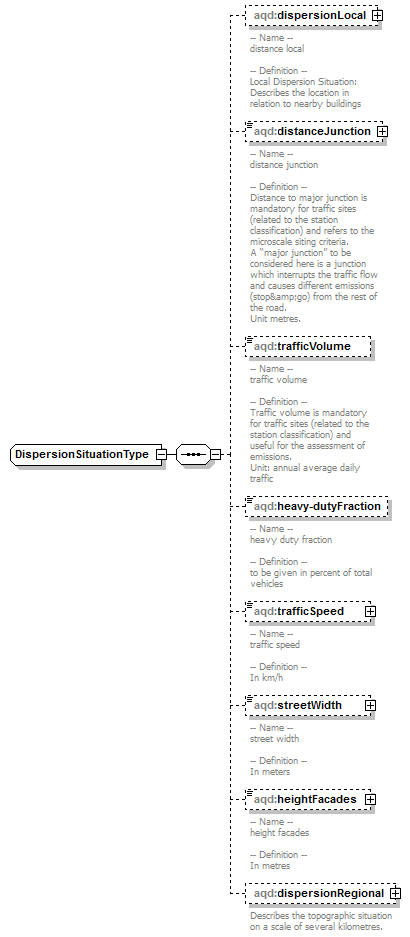

complexType DispersionSituationType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:dispersionLocal aqd:distanceJunction aqd:trafficVolume aqd:heavy-dutyFraction aqd:trafficSpeed aqd:streetWidth aqd:heightFacades aqd:dispersionRegional

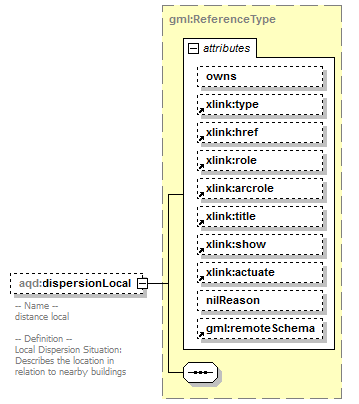

element DispersionSituationType/dispersionLocal

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- distance local -- Definition -- Local Dispersion Situation: Describes the location in relation to nearby buildings

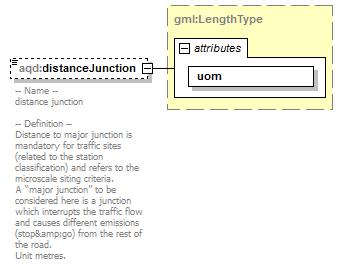

element DispersionSituationType/distanceJunction

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:LengthType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- distance junction -- Definition -- Distance to major junction is mandatory for traffic sites (related to the station classification) and refers to the microscale siting criteria. A “major junction” to be considered here is a junction which interrupts the traffic flow and causes different emissions (stop&go) from the rest of the road. Unit metres.

element DispersionSituationType/trafficVolume

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- traffic volume -- Definition -- Traffic volume is mandatory for traffic sites (related to the station classification) and useful for the assessment of emissions. Unit: annual average daily traffic

element DispersionSituationType/heavy-dutyFraction

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	double
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- heavy duty fraction -- Definition -- to be given in percent of total vehicles

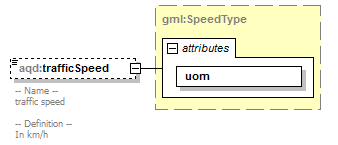

element DispersionSituationType/trafficSpeed

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:SpeedType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- traffic speed -- Definition -- In km/h

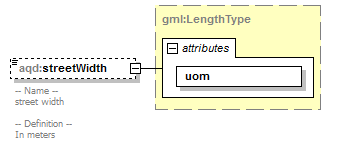

element DispersionSituationType/streetWidth

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:LengthType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- street width -- Definition -- In meters

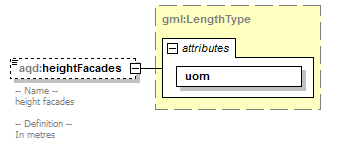

element DispersionSituationType/heightFacades

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:LengthType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- height facades -- Definition -- In metres

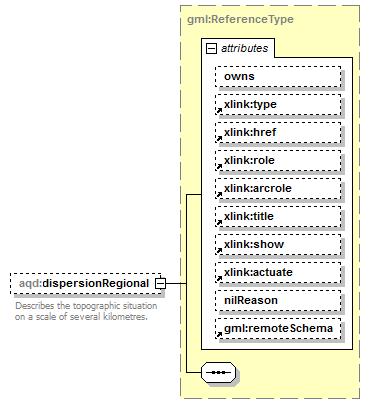

element DispersionSituationType/dispersionRegional

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation Describes the topographic situation on a scale of several kilometres.
