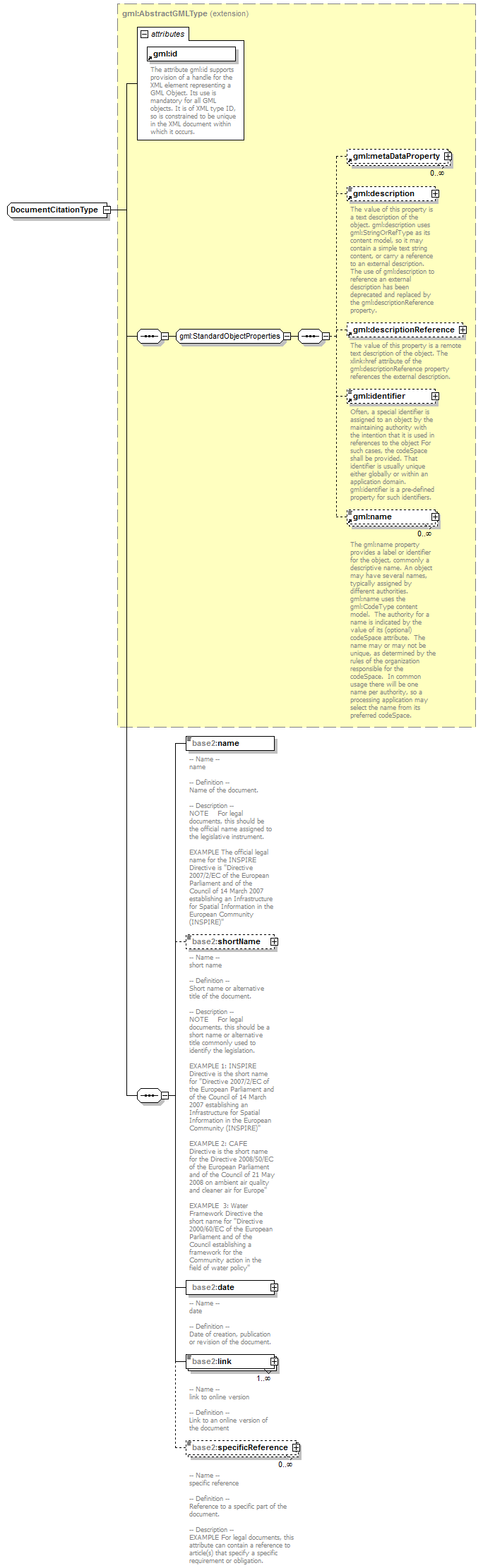

complexType DocumentCitationType

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of gml:AbstractGMLType
properties	base  gml:AbstractGMLType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name base2:name base2:shortName base2:date base2:link base2:specificReference
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element DocumentCitationType/name

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	string
properties	isRef  0 content  simple
annotation	documentation -- Name -- name -- Definition -- Name of the document. -- Description -- NOTE For legal documents, this should be the official name assigned to the legislative instrument. EXAMPLE The official legal name for the INSPIRE Directive is "Directive 2007/2/EC of the European Parliament and of the Council of 14 March 2007 establishing an Infrastructure for Spatial Information in the European Community (INSPIRE)"

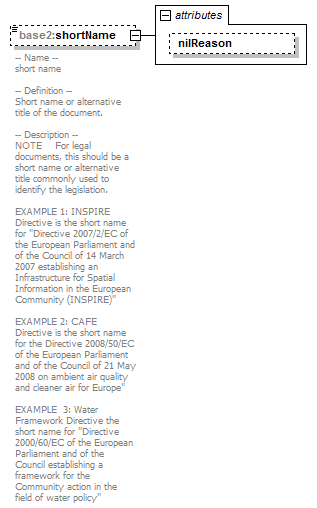

element DocumentCitationType/shortName

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- short name -- Definition -- Short name or alternative title of the document. -- Description -- NOTE For legal documents, this should be a short name or alternative title commonly used to identify the legislation. EXAMPLE 1: INSPIRE Directive is the short name for "Directive 2007/2/EC of the European Parliament and of the Council of 14 March 2007 establishing an Infrastructure for Spatial Information in the European Community (INSPIRE)" EXAMPLE 2: CAFE Directive is the short name for the Directive 2008/50/EC of the European Parliament and of the Council of 21 May 2008 on ambient air quality and cleaner air for Europe" EXAMPLE  3: Water Framework Directive the short name for "Directive 2000/60/EC of the European Parliament and of the Council establishing a framework for the Community action in the field of water policy"

attribute DocumentCitationType/shortName/@nilReason

type	gml:NilReasonType
properties	isRef  0

element DocumentCitationType/date

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of gml:AbstractMetadataPropertyType
properties	isRef  0 content  complex nillable  true
children	gmd:CI_Date
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      nilReason gml:NilReasonType
annotation	documentation -- Name -- date -- Definition -- Date of creation, publication or revision of the document.

attribute DocumentCitationType/date/@nilReason

type	gml:NilReasonType
properties	isRef  0

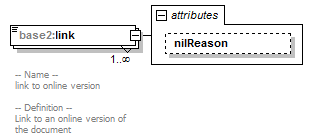

element DocumentCitationType/link

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of anyURI
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- link to online version -- Definition -- Link to an online version of the document

attribute DocumentCitationType/link/@nilReason

type	gml:NilReasonType
properties	isRef  0

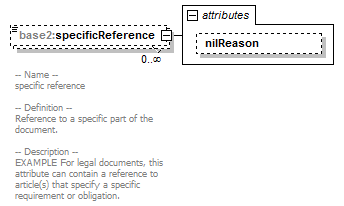

element DocumentCitationType/specificReference

diagram
namespace	http://inspire.ec.europa.eu/schemas/base2/1.0
type	extension of string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
annotation	documentation -- Name -- specific reference -- Definition -- Reference to a specific part of the document. -- Description -- EXAMPLE For legal documents, this attribute can contain a reference to article(s) that specify a specific requirement or obligation.

attribute DocumentCitationType/specificReference/@nilReason

type	gml:NilReasonType
properties	isRef  0
