complexType EnvironmentalMonitoringActivityType

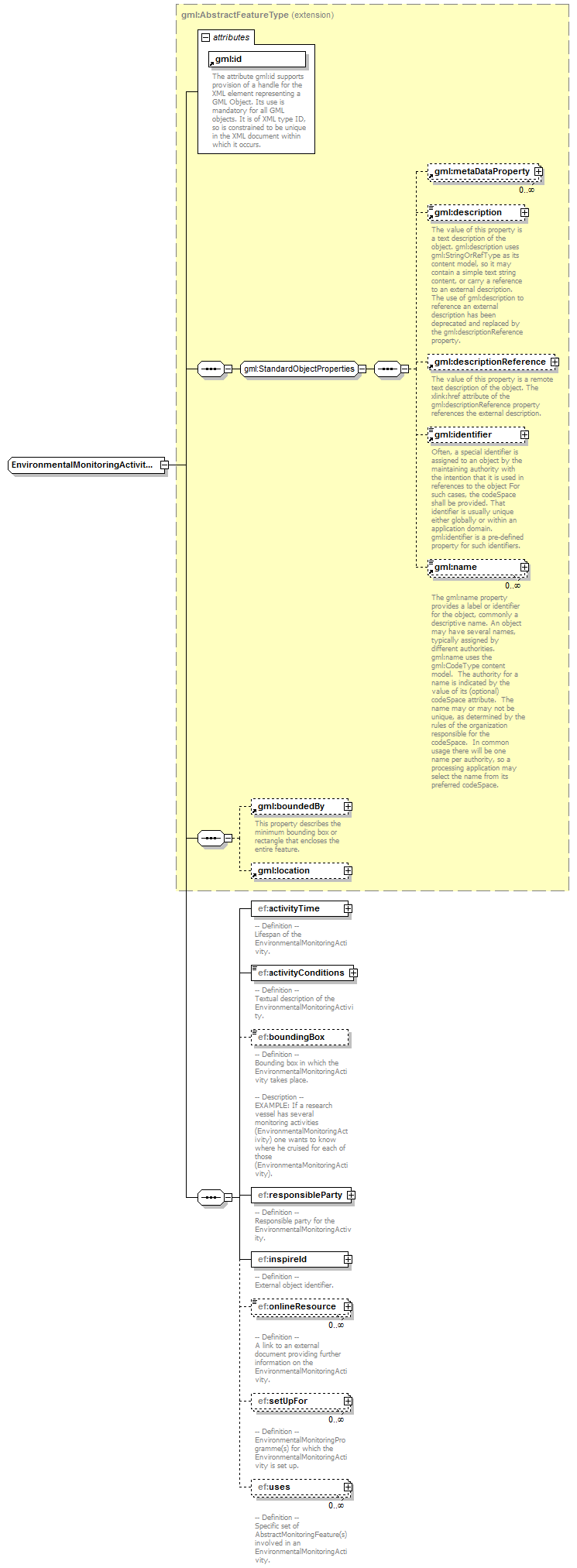

diagram AirQualityReporting_p516.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
type extension of gml:AbstractFeatureType
properties
base gml:AbstractFeatureType
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location ef:activityTime ef:activityConditions ef:boundingBox ef:responsibleParty ef:inspireId ef:onlineResource ef:setUpFor ef:uses
attributes
Name  Type  Use  Default  Fixed  annotation
idrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

element EnvironmentalMonitoringActivityType/activityTime

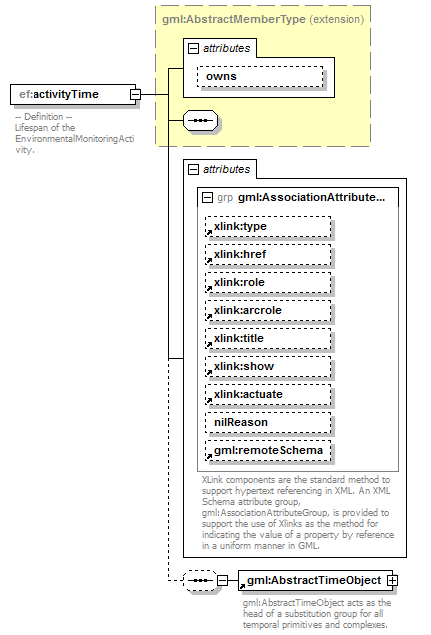

diagram AirQualityReporting_p517.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
type extension of gml:AbstractMemberType
properties
isRef 0
content complex
nillable true
children gml:AbstractTimeObject
attributes
Name  Type  Use  Default  Fixed  annotation
ownsboolean  false
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
annotation
documentation
-- Definition --
Lifespan of the EnvironmentalMonitoringActivity.

element EnvironmentalMonitoringActivityType/activityConditions

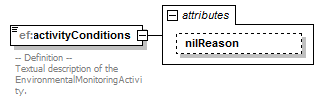

diagram AirQualityReporting_p518.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
type extension of string
properties
isRef 0
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Textual description of the EnvironmentalMonitoringActivity.

attribute EnvironmentalMonitoringActivityType/activityConditions/@nilReason
type gml:NilReasonType
properties
isRef 0

element EnvironmentalMonitoringActivityType/boundingBox
diagram AirQualityReporting_p519.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
properties
isRef 0
minOcc 0
maxOcc 1
nillable true
annotation
documentation
-- Definition --
Bounding box in which the EnvironmentalMonitoringActivity takes place.

-- Description --
EXAMPLE: If a research vessel has several monitoring activities (EnvironmentalMonitoringActivity) one wants to know where he cruised for each of those (EnvironmentaMonitoringActivity).

element EnvironmentalMonitoringActivityType/responsibleParty

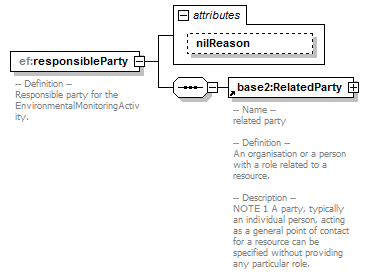

diagram AirQualityReporting_p520.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
properties
isRef 0
content complex
nillable true
children base2:RelatedParty
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
Responsible party for the EnvironmentalMonitoringActivity.

attribute EnvironmentalMonitoringActivityType/responsibleParty/@nilReason
type gml:NilReasonType
properties
isRef 0

element EnvironmentalMonitoringActivityType/inspireId

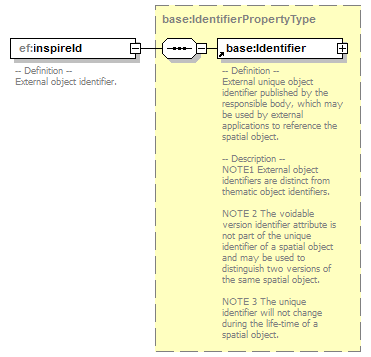

diagram AirQualityReporting_p521.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
type base:IdentifierPropertyType
properties
isRef 0
content complex
children base:Identifier
annotation
documentation
-- Definition --
External object identifier.

element EnvironmentalMonitoringActivityType/onlineResource

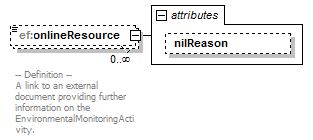

diagram AirQualityReporting_p522.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
type extension of anyURI
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
nillable true
attributes
Name  Type  Use  Default  Fixed  annotation
nilReasongml:NilReasonType
annotation
documentation
-- Definition --
A link to an external document providing further information on the EnvironmentalMonitoringActivity.

attribute EnvironmentalMonitoringActivityType/onlineResource/@nilReason
type gml:NilReasonType
properties
isRef 0

element EnvironmentalMonitoringActivityType/setUpFor

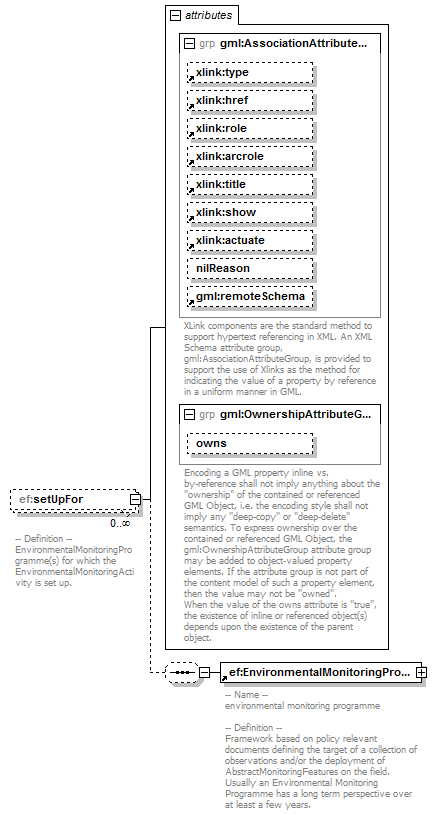

diagram AirQualityReporting_p523.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
nillable true
children ef:EnvironmentalMonitoringProgramme
attributes
Name  Type  Use  Default  Fixed  annotation
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
ownsboolean  false
annotation
documentation
-- Definition --
EnvironmentalMonitoringProgramme(s) for which the EnvironmentalMonitoringActivity is set up.
appinfo
<reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:triggers</reversePropertyName>

element EnvironmentalMonitoringActivityType/uses

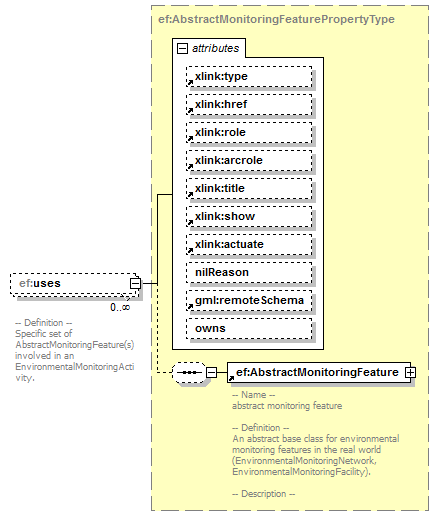

diagram AirQualityReporting_p524.png
namespace http://inspire.ec.europa.eu/schemas/ef/3.0
type ef:AbstractMonitoringFeaturePropertyType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children ef:AbstractMonitoringFeature
attributes
Name  Type  Use  Default  Fixed  annotation
type    simple
href
role
arcrole
title
show
actuate
nilReasongml:NilReasonType
remoteSchema
appinfo
deprecated
ownsboolean  false
annotation
documentation
-- Definition --
Specific set of AbstractMonitoringFeature(s) involved in an EnvironmentalMonitoringActivity.
appinfo
<reversePropertyName xmlns="http://www.opengis.net/gml/3.2">ef:involvedIn</reversePropertyName>
