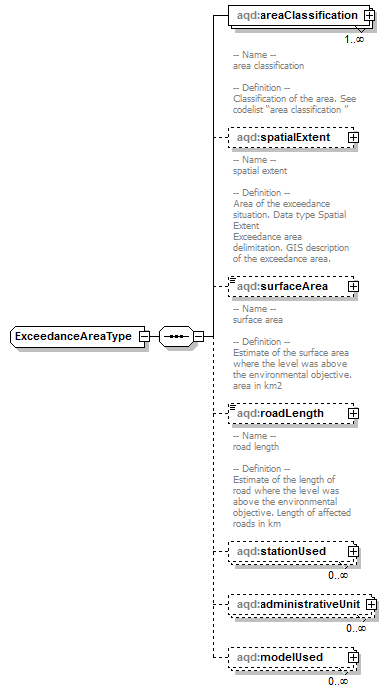

complexType ExceedanceAreaType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:areaClassification aqd:spatialExtent aqd:surfaceArea aqd:roadLength aqd:stationUsed aqd:administrativeUnit aqd:modelUsed

element ExceedanceAreaType/areaClassification

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- area classification -- Definition -- Classification of the area. See codelist “area classification ”

element ExceedanceAreaType/spatialExtent

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:SurfacePropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:AbstractSurface
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- spatial extent -- Definition -- Area of the exceedance situation. Data type Spatial Extent Exceedance area delimitation. GIS description of the exceedance area.

element ExceedanceAreaType/surfaceArea

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:AreaType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- surface area -- Definition -- Estimate of the surface area where the level was above the environmental objective. area in km2

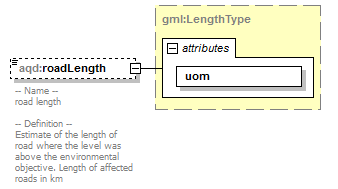

element ExceedanceAreaType/roadLength

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:LengthType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- road length -- Definition -- Estimate of the length of road where the level was above the environmental objective. Length of affected roads in km

element ExceedanceAreaType/stationUsed

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_SamplingPointPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AQD_SamplingPoint
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

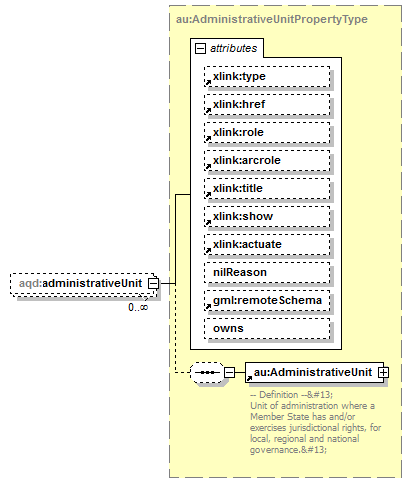

element ExceedanceAreaType/administrativeUnit

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	au:AdministrativeUnitPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	au:AdministrativeUnit
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false

element ExceedanceAreaType/modelUsed

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AQD_ModelPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	aqd:AQD_Model
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
