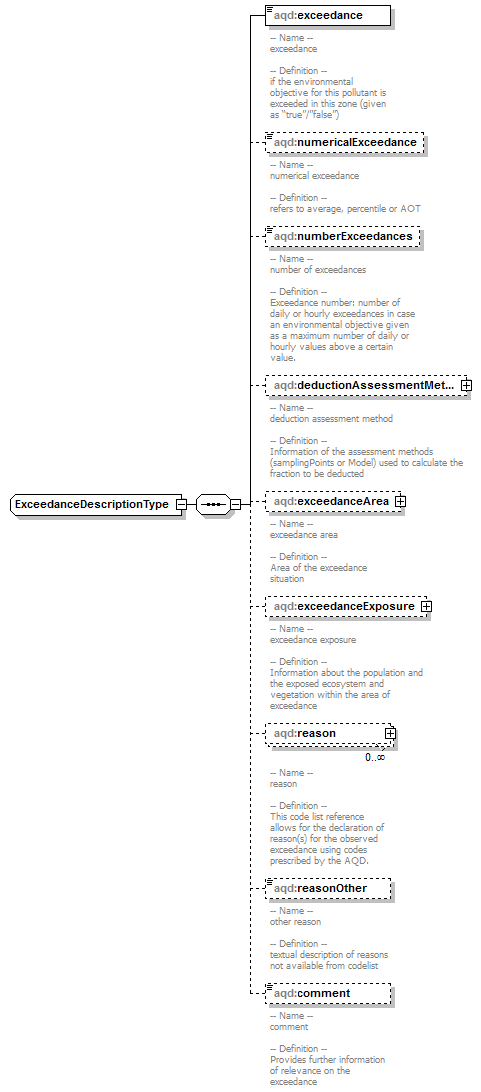

complexType ExceedanceDescriptionType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:exceedance aqd:numericalExceedance aqd:numberExceedances aqd:deductionAssessmentMethod aqd:exceedanceArea aqd:exceedanceExposure aqd:reason aqd:reasonOther aqd:comment

element ExceedanceDescriptionType/exceedance

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	boolean
properties	isRef  0 content  simple
annotation	documentation -- Name -- exceedance -- Definition -- if the environmental objective for this pollutant is exceeded in this zone (given as “true”/”false”)

element ExceedanceDescriptionType/numericalExceedance

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	double
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- numerical exceedance -- Definition -- refers to average, percentile or AOT

element ExceedanceDescriptionType/numberExceedances

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- number of exceedances -- Definition -- Exceedance number: number of daily or hourly exceedances in case an environmental objective given as a maximum number of daily or hourly values above a certain value.

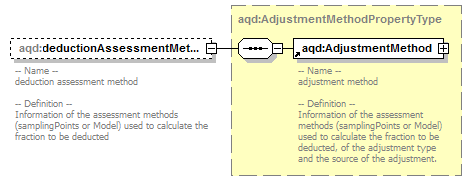

element ExceedanceDescriptionType/deductionAssessmentMethod

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:AdjustmentMethodPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:AdjustmentMethod
annotation	documentation -- Name -- deduction assessment method -- Definition -- Information of the assessment methods (samplingPoints or Model) used to calculate the fraction to be deducted

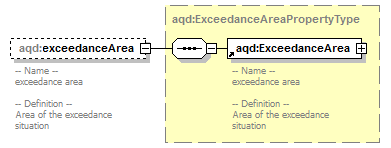

element ExceedanceDescriptionType/exceedanceArea

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:ExceedanceAreaPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:ExceedanceArea
annotation	documentation -- Name -- exceedance area -- Definition -- Area of the exceedance situation

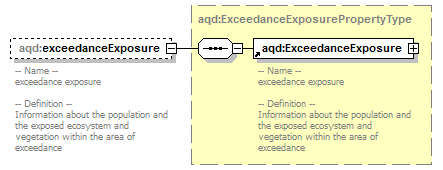

element ExceedanceDescriptionType/exceedanceExposure

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	aqd:ExceedanceExposurePropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	aqd:ExceedanceExposure
annotation	documentation -- Name -- exceedance exposure -- Definition -- Information about the population and the exposed ecosystem and vegetation within the area of exceedance

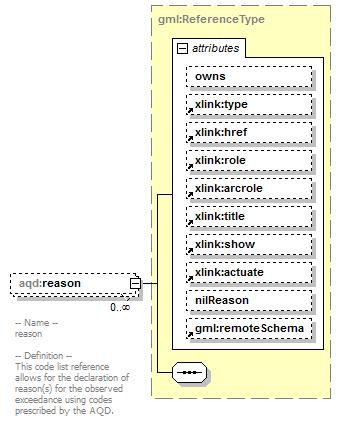

element ExceedanceDescriptionType/reason

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- reason -- Definition -- This code list reference allows for the declaration of reason(s) for the observed exceedance using codes prescribed by the AQD.

element ExceedanceDescriptionType/reasonOther

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- other reason -- Definition -- textual description of reasons not available from codelist

element ExceedanceDescriptionType/comment

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- comment -- Definition -- Provides further information of relevance on the exceedance
