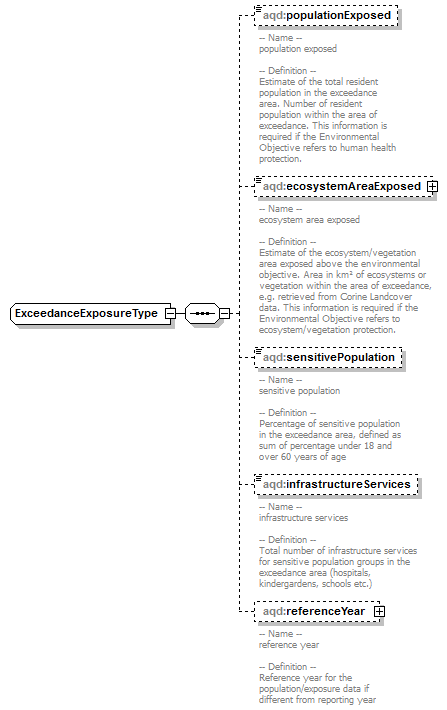

complexType ExceedanceExposureType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:populationExposed aqd:ecosystemAreaExposed aqd:sensitivePopulation aqd:infrastructureServices aqd:referenceYear

element ExceedanceExposureType/populationExposed

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- population exposed -- Definition -- Estimate of the total resident population in the exceedance area. Number of resident population within the area of exceedance. This information is required if the Environmental Objective refers to human health protection.

element ExceedanceExposureType/ecosystemAreaExposed

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:AreaType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- ecosystem area exposed -- Definition -- Estimate of the ecosystem/vegetation area exposed above the environmental objective. Area in km² of ecosystems or vegetation within the area of exceedance, e.g. retrieved from Corine Landcover data. This information is required if the Environmental Objective refers to ecosystem/vegetation protection.

element ExceedanceExposureType/sensitivePopulation

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- sensitive population -- Definition -- Percentage of sensitive population in the exceedance area, defined as sum of percentage under 18 and over 60 years of age

element ExceedanceExposureType/infrastructureServices

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- infrastructure services -- Definition -- Total number of infrastructure services for sensitive population groups in the exceedance area (hospitals, kindergardens, schools etc.)

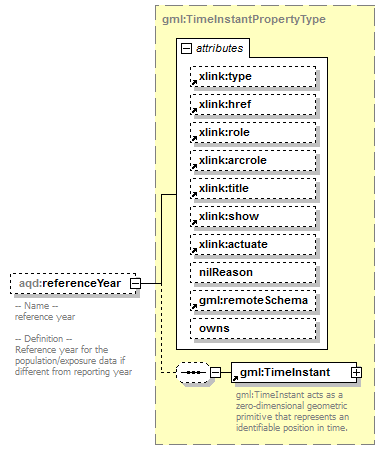

element ExceedanceExposureType/referenceYear

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:TimeInstantPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:TimeInstant
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Name -- reference year -- Definition -- Reference year for the population/exposure data if different from reporting year
