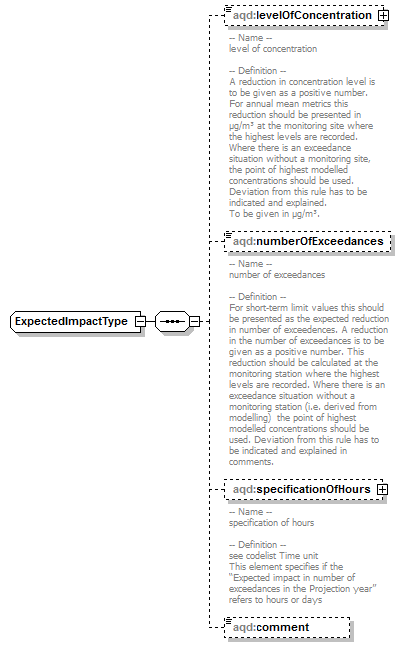

complexType ExpectedImpactType

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
children	aqd:levelOfConcentration aqd:numberOfExceedances aqd:specificationOfHours aqd:comment

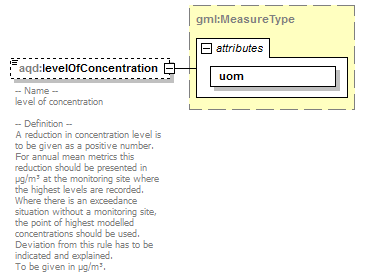

element ExpectedImpactType/levelOfConcentration

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:MeasureType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation -- Name -- level of concentration -- Definition -- A reduction in concentration level is to be given as a positive number. For annual mean metrics this reduction should be presented in µg/m³ at the monitoring site where the highest levels are recorded. Where there is an exceedance situation without a monitoring site, the point of highest modelled concentrations should be used. Deviation from this rule has to be indicated and explained. To be given in µg/m³.

element ExpectedImpactType/numberOfExceedances

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation -- Name -- number of exceedances -- Definition -- For short-term limit values this should be presented as the expected reduction in number of exceedences. A reduction in the number of exceedances is to be given as a positive number. This reduction should be calculated at the monitoring station where the highest levels are recorded. Where there is an exceedance situation without a monitoring station (i.e. derived from modelling)  the point of highest modelled concentrations should be used. Deviation from this rule has to be indicated and explained in comments.

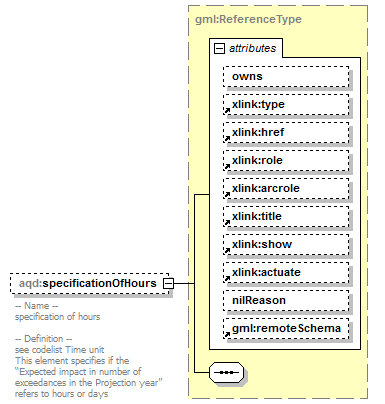

element ExpectedImpactType/specificationOfHours

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	gml:ReferenceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Name -- specification of hours -- Definition -- see codelist Time unit This element specifies if the “Expected impact in number of exceedances in the Projection year” refers to hours or days

element ExpectedImpactType/comment

diagram
namespace	http://dd.eionet.europa.eu/schemaset/id2011850eu-1.0
type	string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
