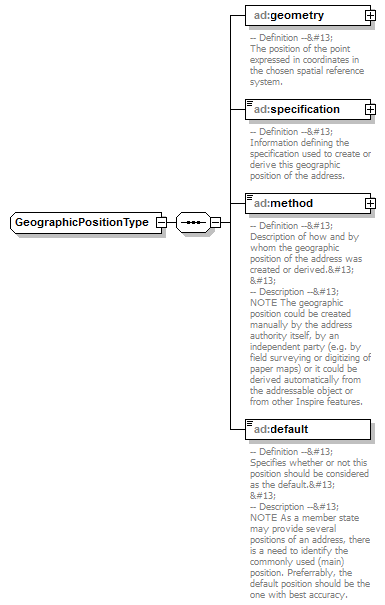

complexType GeographicPositionType

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
children	ad:geometry ad:specification ad:method ad:default

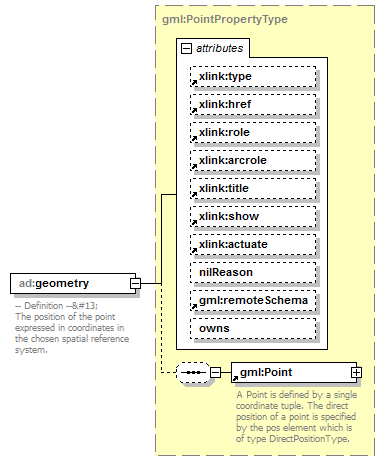

element GeographicPositionType/geometry

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	gml:PointPropertyType
properties	isRef  0 content  complex
children	gml:Point
attributes	Name   Type   Use   Default   Fixed   annotation type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated owns boolean    false
annotation	documentation -- Definition --
 The position of the point expressed in coordinates in the chosen spatial reference system.

element GeographicPositionType/specification

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	extension of gml:CodeType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation codeSpace anyURI          nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Information defining the specification used to create or derive this geographic position of the address.

attribute GeographicPositionType/specification/@nilReason

type	gml:NilReasonType
properties	isRef  0

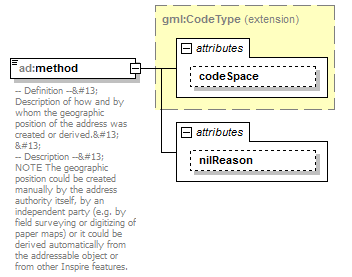

element GeographicPositionType/method

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	extension of gml:CodeType
properties	isRef  0 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   annotation codeSpace anyURI          nilReason gml:NilReasonType
annotation	documentation -- Definition --
 Description of how and by whom the geographic position of the address was created or derived.

 -- Description --
 NOTE The geographic position could be created manually by the address authority itself, by an independent party (e.g. by field surveying or digitizing of paper maps) or it could be derived automatically from the addressable object or from other Inspire features.

attribute GeographicPositionType/method/@nilReason

type	gml:NilReasonType
properties	isRef  0

element GeographicPositionType/default

diagram
namespace	urn:x-inspire:specification:gmlas:Addresses:3.0
type	boolean
properties	isRef  0 content  simple
annotation	documentation -- Definition --
 Specifies whether or not this position should be considered as the default.

 -- Description --
 NOTE As a member state may provide several positions of an address, there is a need to identify the commonly used (main) position. Preferrably, the default position should be the one with best accuracy.

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
