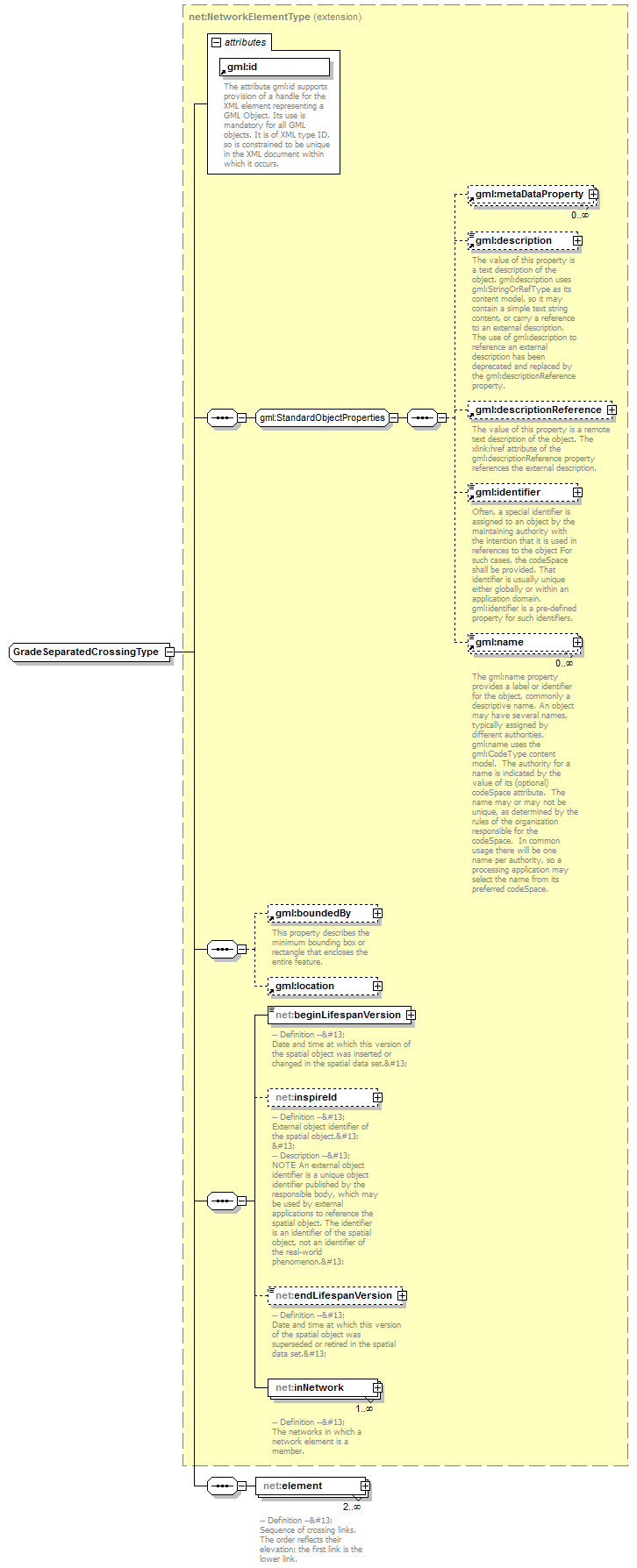

complexType GradeSeparatedCrossingType

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	extension of net:NetworkElementType
properties	base  net:NetworkElementType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location net:beginLifespanVersion net:inspireId net:endLifespanVersion net:inNetwork net:element
attributes	Name   Type   Use   Default   Fixed   annotation id required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

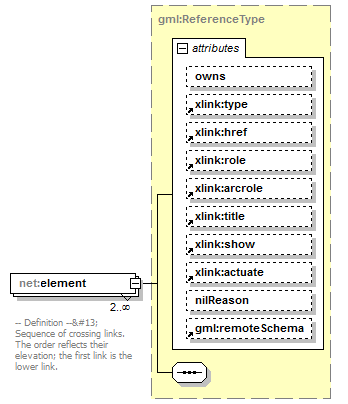

element GradeSeparatedCrossingType/element

diagram
namespace	urn:x-inspire:specification:gmlas:Network:3.2
type	gml:ReferenceType
properties	isRef  0 minOcc  2 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation owns boolean    false      type       simple   href          role          arcrole          title          show          actuate          nilReason gml:NilReasonType          remoteSchema          appinfo deprecated
annotation	documentation -- Definition --&#13; Sequence of crossing links. The order reflects their elevation; the first link is the lower link. appinfo <targetElement xmlns="http://www.opengis.net/gml/3.2">net:Link</targetElement>
